General: Pivots 180°, designed minimizes head room.
Load rated parts are 100% magnaflux crack detected.
The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
The welding block is forged out of material with excellent welding properties.
Low profile design with high strength.
The ring is stowable thus avoiding the hazards of tripping and snagging.

  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked
  • Finish: Painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
L
mm
M
mm
a
mm
b
mm
Weight
kg
CAD

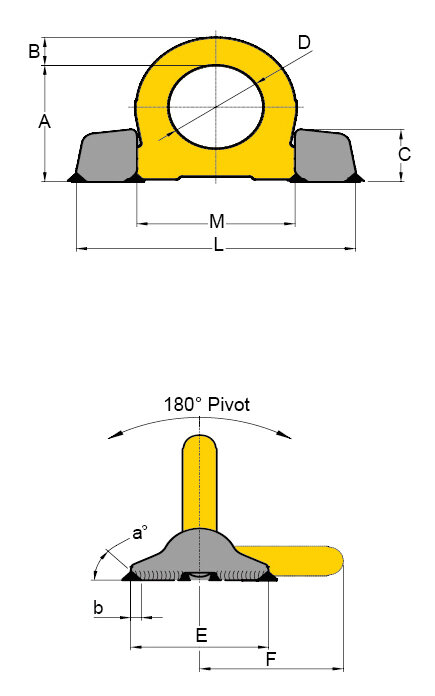

11.428-082-04 4 66 14 30 48 65 70 135 76 45 5 0.6
11.428-082-06 6.7 85 20 39 60 89 91 171 98 45 5 1.5
11.428-082-10 10 95 21 46 65 100 100 196 106 45 7 2.4
11.428-082-16 16 127 30 57 90 130 130 263 149 45 8 5.5
11.428-082-30 31.5 178 42 78 130 160 160 375 213 45 15 15.8
