With M4 classification of mechanism this hoist is extremely reliable. This hoist will guarantee the continuity of your process. The TMH hoists are designed
with a full load supporting eye for installation and securing (during lift applications) the hoist for extra safety.

Standard features:

  • Precise variable speed control (cord- and pendant control)
  • Optimum control of the load, very precise positioning
  • Main air shut off valve
  • Mechanical end stop system
  • Load limiter built-in without loss of headroom
  • Low noise level (80 dBA)
  • Air pressure 0,4 - 0,63 MPa (4-6,3 bar)
  • Piped away exhaust air

Optional features:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request)
  • Choice of pendants
  • Radio control pendant for electro pneumatic controls
  • Control systems
  • Chain collectors (PVC, galvanised or stainless steel)
  • Various types of hook or clevis available
  • Air supply systems and valves
  • Piped away exhaust air
  • In house design for "specials"
  • Festoon systems
  • Main air shut off valve

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold seperatly.)

Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Type Chain falls Lifting speed without load
m/min
Air consumption lifting (l/sec) Lifting speed with load
m/min
Lowering speed with load
m/min
Air consumption lowering (I/sec) Weight with 3m HOL CAD
16.30TMH-3000C 3 TMH-3000C 1 10.8 56 5.4 10.2 68 99
16.30TMH-3000PE 3 TMH-3000PE 1 10.8 56 5.4 10.2 68 99
16.30TMH-6000C2 6 TMH-6000C 2 5.4 56 2.7 5.1 68 124
16.30TMH-6000P2E 6 TMH-6000PE 2 5.4 56 2.7 5.1 68 124
16.30TMH-90003C 9 TMH-9000/3C 3 3.6 56 1.8 3.4 68 170
16.30TMH-9000P3E 9 TMH-9000/3PE 3 3.6 56 1.8 3.4 68 170
16.30TMH-12000C4 12 TMH-12000/4C 4 2.7 56 1.35 2.5 68 190
16.30TMH-12000P4E 12 TMH-12000/4PE 4 2.7 56 1.35 2.5 68 190
16.30TMH-15000C5 15 TMH-15000/5C 5 2.16 56 1.08 2.04 68 280
16.30TMH-15000P5E 15 TMH-15000/5PE 5 2.16 56 1.08 2.04 68 280

Also available in oil free version upon request.

Download CAD

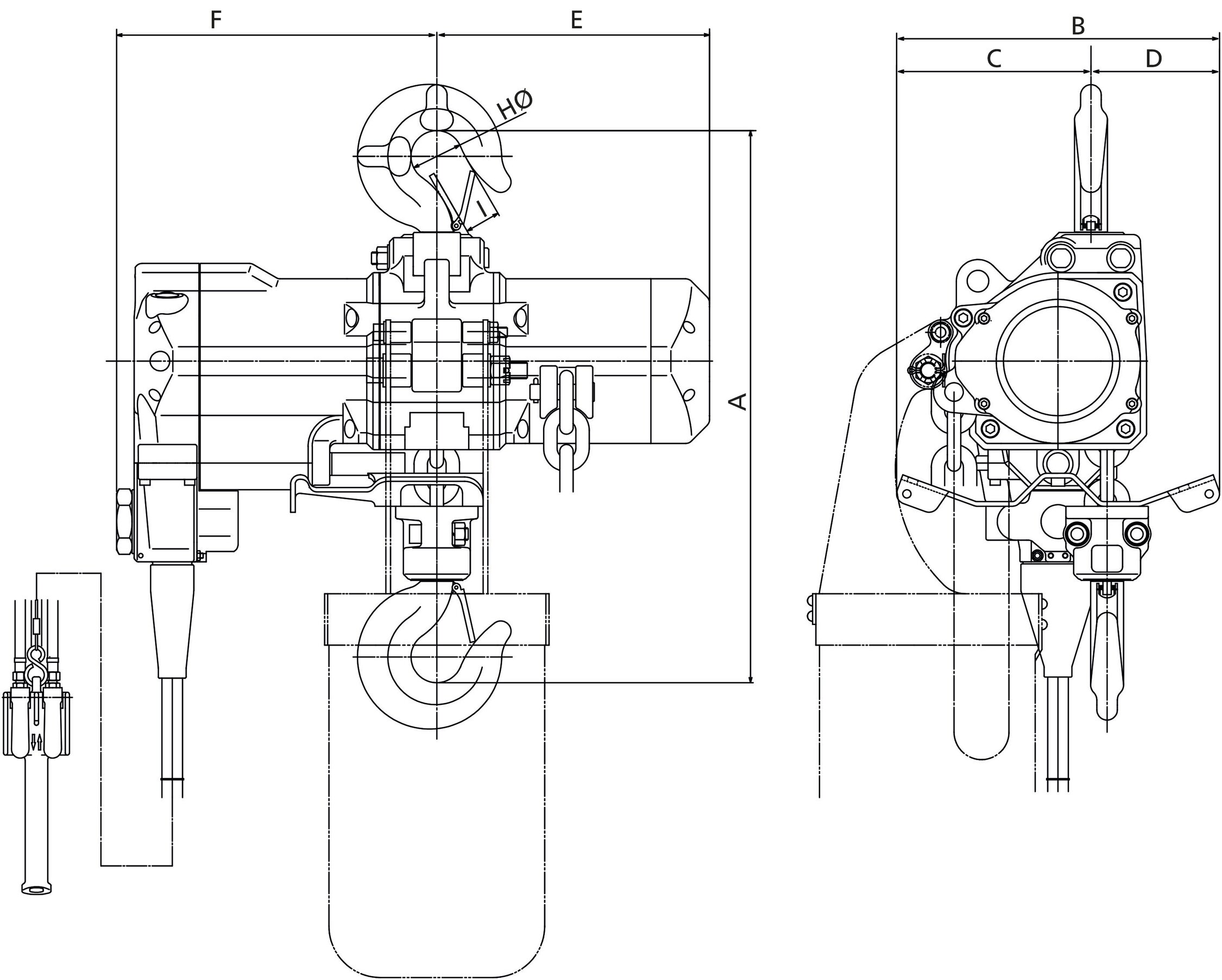

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Type A B C D E F H Ø I
TMH-3000C 537 314 189 125 265 311 50 34
TMH-3000PE 537 314 189 125 265 311
TMH-6000C2 742 371 245 126 265 311 65 42
TMH-6000P2E 742 371 245 126 265 311 65 42
TMH-9000C3 783 455 160 295 265 311 75 53
TMH-9000P3E 783 455 160 295 265 311 75 53
TMH-12000C4 856 398.5 149.5 249 309 266 83 64
TMH-12000P4E 856 398.5 149.5 249 309 266 83 64
TMH-15000C5 855 466 152.5 313.5 300 275 83 58
TMH-15000P5E 855 466 152.5 313.5 300 275 84 58
