General:
Highspeed air chain hoist for loads from 500 up to 980 kg.
RED ROOSTER Air Chain Hoists are especially developped for the "Material Handling Industry". For example: warehousing, packaging etc.
These hoists have a very high lifting and lowering speed, making them very suitable for applications with long lifting heights.

  • Very high lifting and lowering speeds
  • Maximum speed adjustable, lifting and lowering speed independent from each other.
  • Precise variable speed control (cord - and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact and light weight.
  • Exhaust hose easy to assemble
  • Endstop system
  • Air motor is cooled by the exhaust air (internal)
  • Cord control or pendant control
  • Low noise level
  • Aluminum housing

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)

  • Features: Very high lifting and lowering speeds.
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Type Chainfalls Lifting speed with max.load
m/min
Lowering speed with max.load
m/min
Air connection Workingpressure bar Weight at 3m HOL
kg
Lifting speed without load
m/min
Min. Hosediam. Air consumption Lifting (l/sec) Air consumption Lowering (I/sec) CAD
16.30TCS-500C 0.5 TCS-500C 1 (6.3x19.1mm) 17 34 1/2"BSPT 6 19 33 1/2" 28 33
16.30TCS-500PE 0.5 TCS-500PE 1 (6.3x19.1mm) 17 34 1/2"BSPT 6 19 33 1/2" 28 33
16.30TCS-980C2 0.98 TCS-980C2 2 (6.3x19.1mm) 8.5 17 1/2"BSPT 6 24 17 1/2" 28 33
16.30TCS-980P2E 0.98 TCS-980P2E 2 (6.3x19.1mm) 8.5 17 1/2"BSPT 6 24 17 1/2" 28 33

Also available in oil free version upon request.

Download CAD

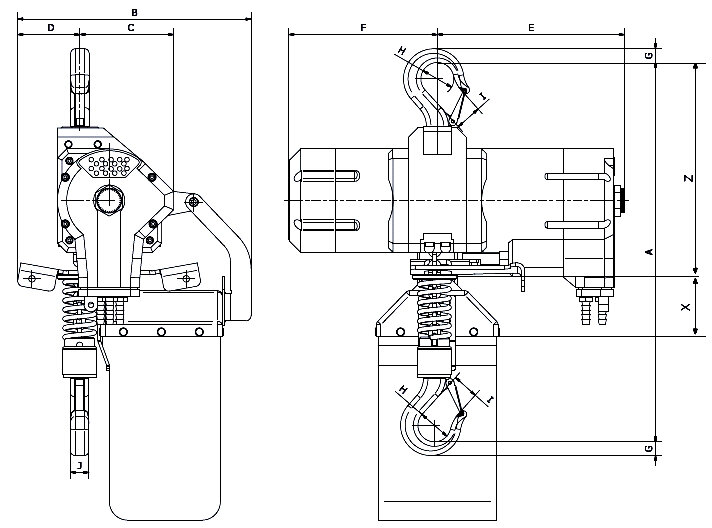

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Type
A
B
C
D
E
F
G
I
J
X
Z

mm











TCS-500C / TCS-500PE
415
255
13
68
205
163
15
35
22
22
40
210
TCS-980C2 / TCS980P2E
510
205
123
37
163
205
30
40
29
25
40
225
