Air chain hoist for material handling 140 and 250 kg.
These types RED ROOSTER Compact Hoist are very suitable for "Material-Handling". The pendant control is direct on the lower hook so the operator can control and position the load easy and direct. The perfect solution for horizontal movements is the combination with a push trolley.
- Pendant control direct on the lower hook.
- Optimum load control, very precise positioning.
- One-hand control.
- Variable speed control.
- Soft start and stop, no shock movements.
- Handle can be positioned for left-hand or righthand operation.
- Endstop system.
- 2 meter of lift. (Only for TMM-140AE)
We highly recommend the use of an SMC air treatment unit.

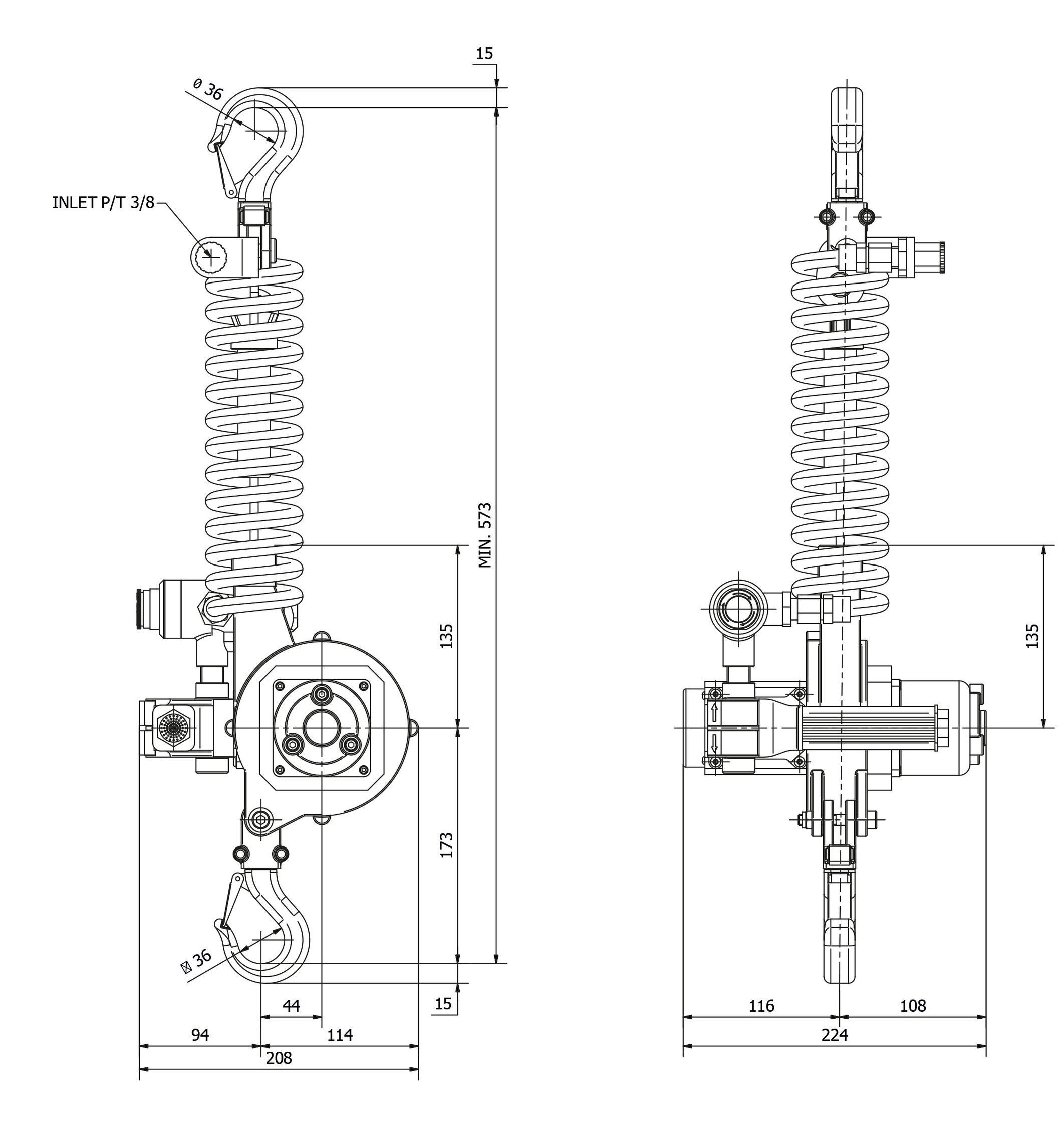

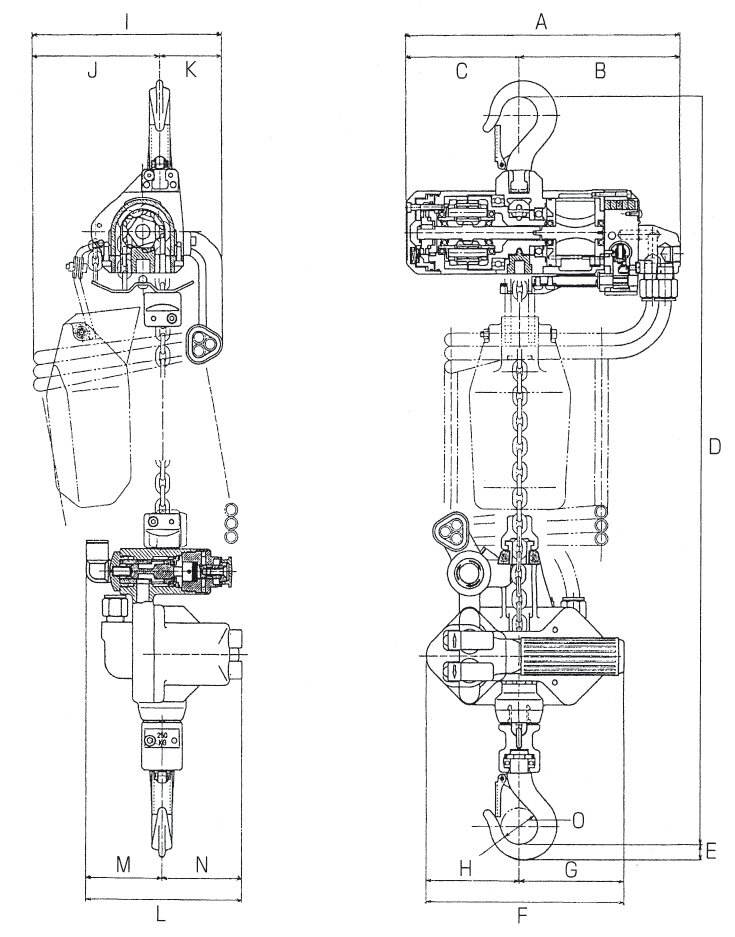

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
