Powertex
  • Cr6+ Free

POWERTEX PCB-S2 Chain block is a hoist of high quality which is durable and easy to operate using the ergonomic hand chain.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available
  • Can be supplied with overload protection (OLP) device (0.5 to 5 ton).
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Red powder coated body and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Chain Block POWERTEX PCB-S2
RFID equipped

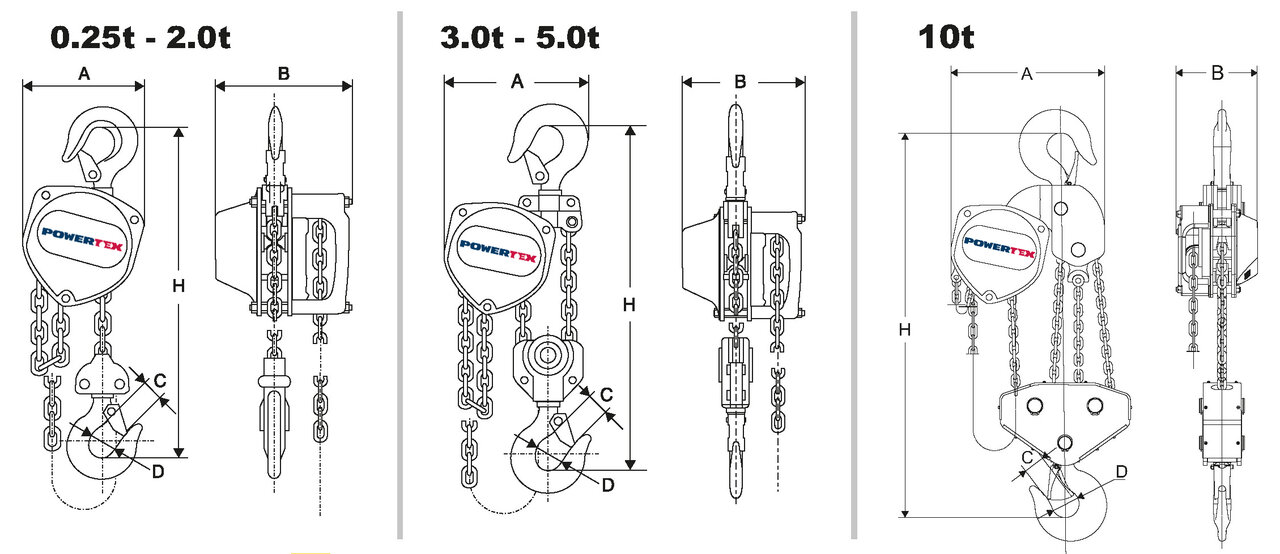

Chain Block POWERTEX PCB-S2, drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Model Load chain
mm
Hand chain
mm
Number of falls Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H min
mm
Weight
kg
CAD
16.10PCBS20025030 0.25 PCB-S2/250KG 4,0 x 12,0 5,0 x 23,7 1 23.5 108 106 20 30 260 5.9
16.10PCBS20050030 0.5 PCB-S2/500KG 5,0 x 15,0 5,0 x 23,7 1 24.9 130 128 22 34 280 9.8
16.10PCBS20100030 1 PCB-S2/1000KG 6,3 x 19,0 5,0 x 23,7 1 28.4 150 145 26 39 330 11.7
16.10PCBS20200030 2 PCB-S2/2000KG 8,0 x 24,0 5,0 x 23,7 1 34.3 185 175 35 49 385 18.9
16.10PCBS20300030 3 PCB-S2/3000KG 7,1 x 21,0 5,0 x 23,7 2 34.3 220 158 37 50 510 28.9
16.10PCBS20500030 5 PCB-S2/5000KG 9,0 x 27,0 5,0 x 23,7 2 37.2 255 183 43 60 615 37.1
16.10PCBS21000030 10 PCB-S2/10000KG 9,0 x 27,0 5,0 x 23,7 4 40 360 183 47 65 820 92.8

Last 3 digits in part code indicate the lifting height. For example 030 = 3,0 m
Weight: With standard 3m lifting height.
Art No + OLP = Available with overload protection (0.5 to 5 ton)
Art No + BK = Blackline
