General: The KITO chain block CF with working loads up to 3000 kg is a light weight tool. The double covered housing protects the gear from dirt and water. High quality bearings enable a long term service. The precision gear is constructed to use the block with low exertion.

  • Material: High impact aluminium housing, nickel-plated load chain in grade 10, steel hand chain.
  • Marking: Type plate with WLL, CE-marking and serial number.
  • Finish: Surface treated aluminium.
  • Safety factor: 4:1.
Kito CF
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

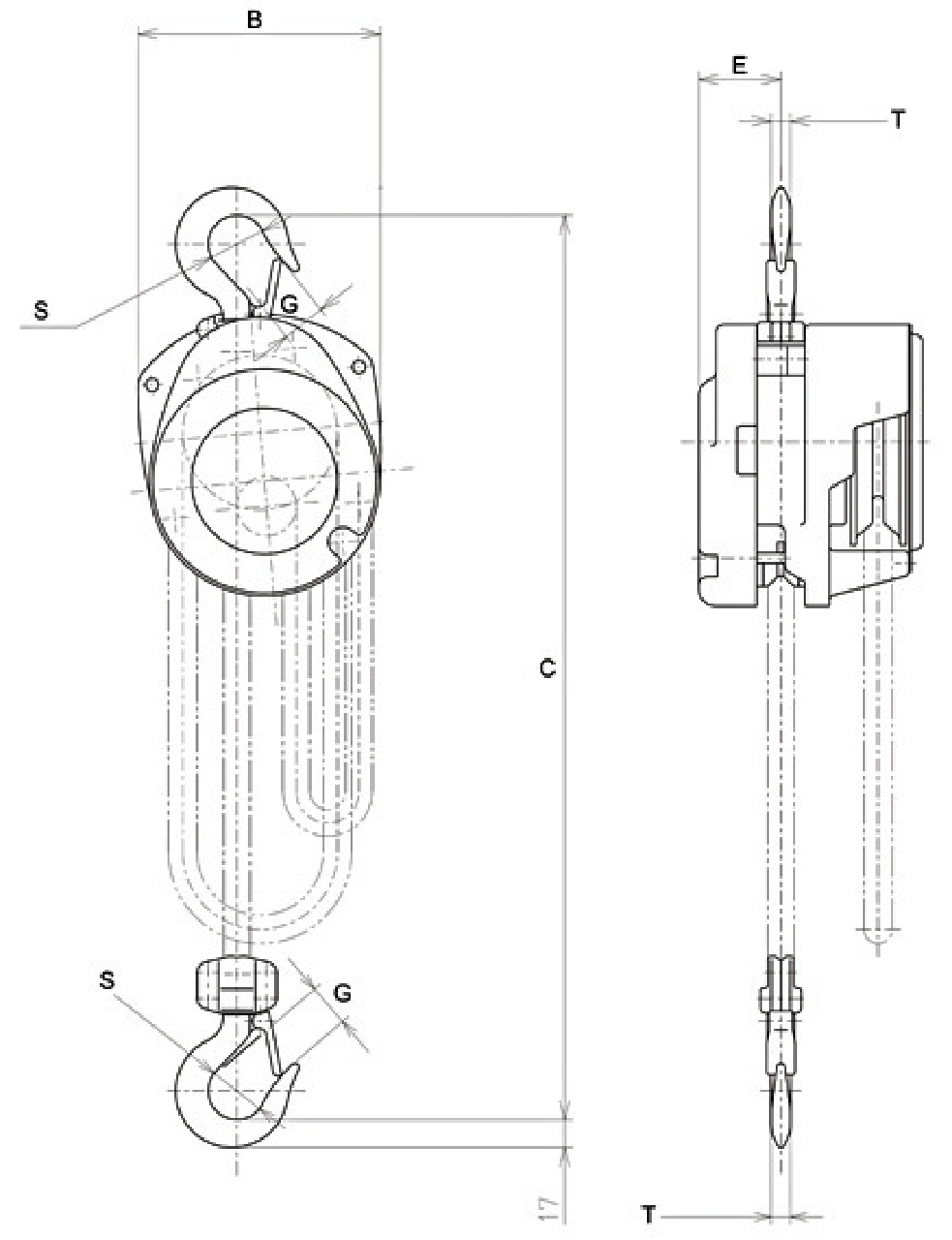

Lifting height (m) weight (kg) Load chain Ø (mm) Chain falls Chain pull to lift full load in daN Headroom C (mm) B (mm) E (mm) G (mm) S (mm) T (mm) CAD
16.10CF005SH030030 CF005 0.5 3 11 5,0 x 15,1 1 30 325 150 51 27 35 12
16.10CF010SH030030 CF010 1 3 13 6,3 x 19,1 1 36 370 174 58 29 42 16
16.10CF015SH030030 CF015 1.5 3 18 7,1 x 21,2 1 42 440 203 61 34 47 20
16.10CF020SH030030 CF020 2 3 21 6,3 x 19,1 2 40 510 204 58 36 50 22
16.10CF030SH030030 CF030 3 3 28 7,1 x 21,2 2 46 590 240 61 42 56 27
*Weight with standard lifting height.
