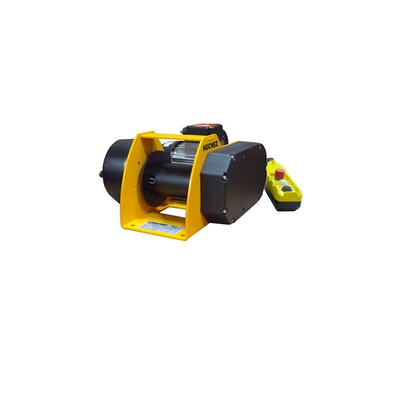

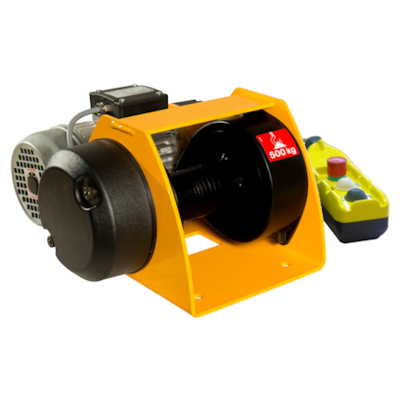

Electric winch MOTORBOX

Electric winch designed for simple lifting and pulling operations in different applications, ideal for replacing a manual winch. Capacities from 150 to 500 kg.

Available in two versions: - Direct control (CD) only for use protected from the weather. - Low voltage control (BT) ensuring user protect

Show more

Part code:

Electric winch designed for simple lifting and pulling operations in different applications, ideal for replacing a manual winch. Capacities from 150 to 500 kg.

Available in two versions: - Direct control (CD) only for use protected from the weather. - Low voltage control (BT) ensuring user protection against electrical risks.

Applications:

  • Maintenance
  • Industry

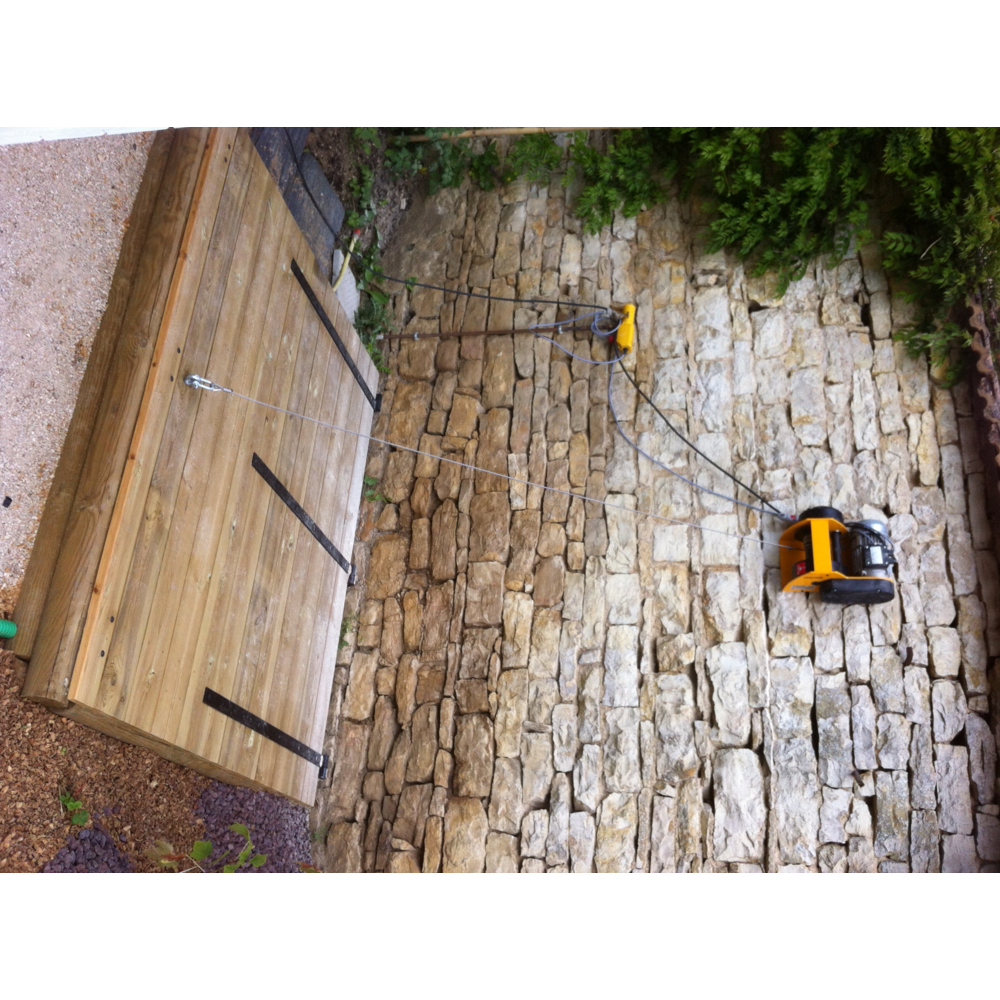

  • Manoeuvring hatches, doors etc.

Technical properties:

  • FEM class: 1Dm - ISO M1 – Occasional use.
  • Mechanically welded steel drum with wide flanges for safe and sound fastening of the rope.
  • Greased reducer with helical gears.
  • Automatic lack of current brake.
  • Single phase 230 V motor brake with permanent capacitor - 50 Hz lifting type. Class F. Protection IP 54.

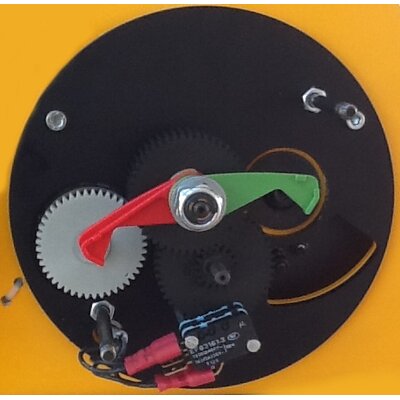

  • Limit switches included.

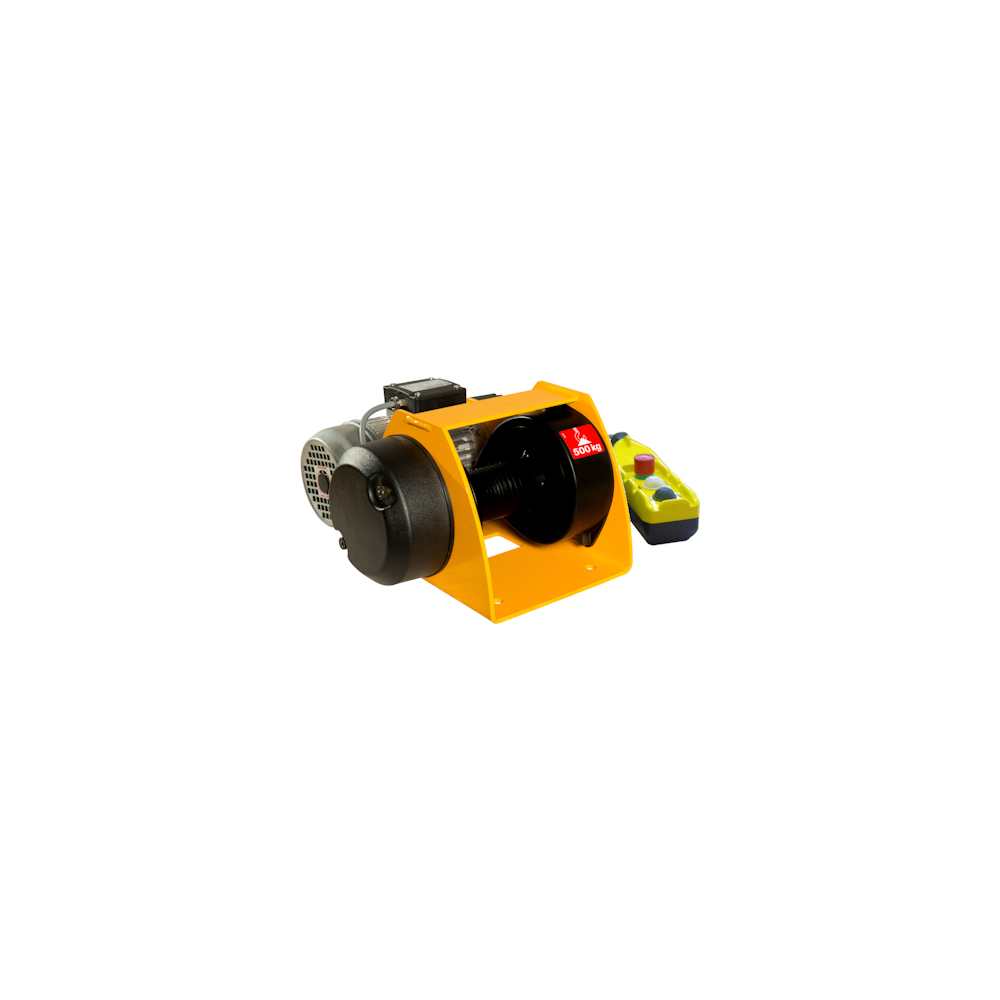

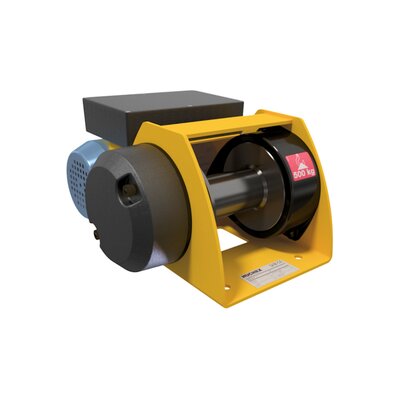

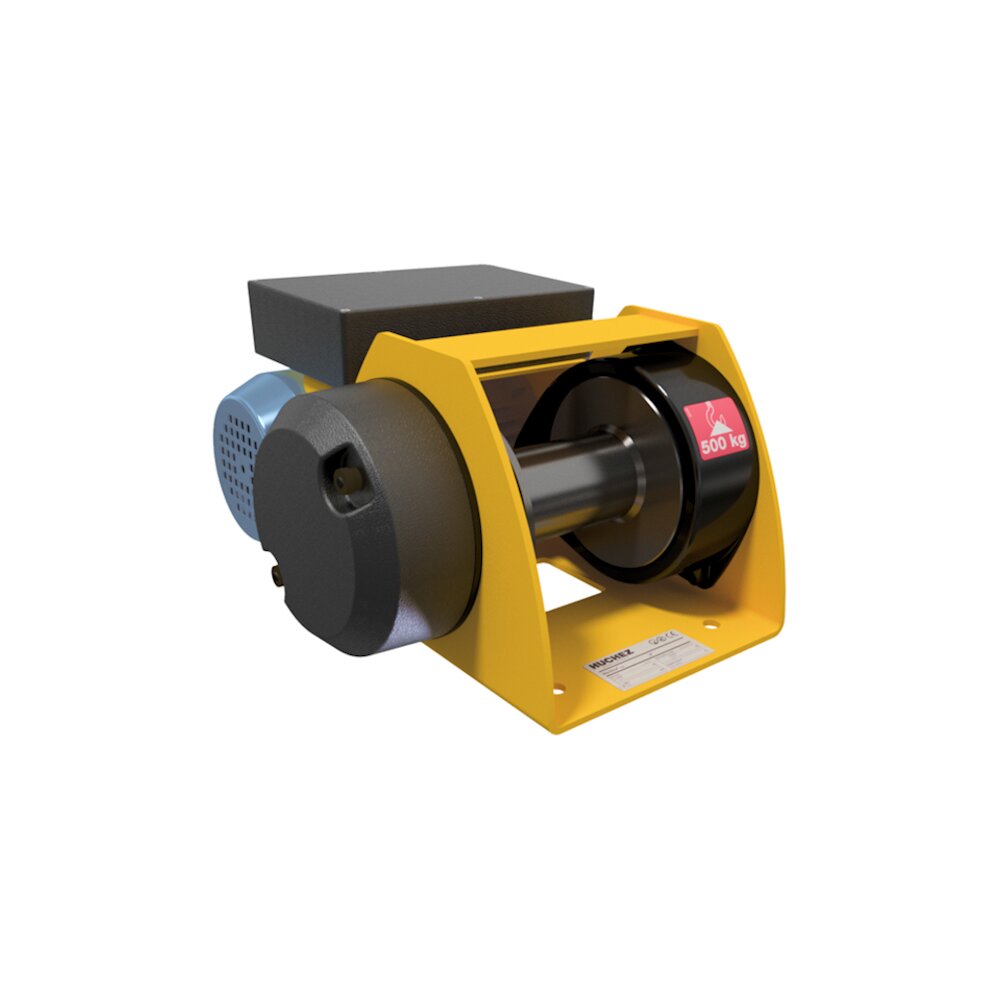

  • Direct control (CD models) only for use protected from the weather. Low voltage control (BT models) ensuring user protection against electrical risks.
  • 3 buttons pendant control (Up - Down- Emergency Stop), not removable (3m long control cable).

Options:

  • Wire rope and hook Tarpaulin cover
  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +50°C
  • Finish: Painted.
  • Standard: EN 13157, EN 14492-1
  • Safety factor: 5:1
