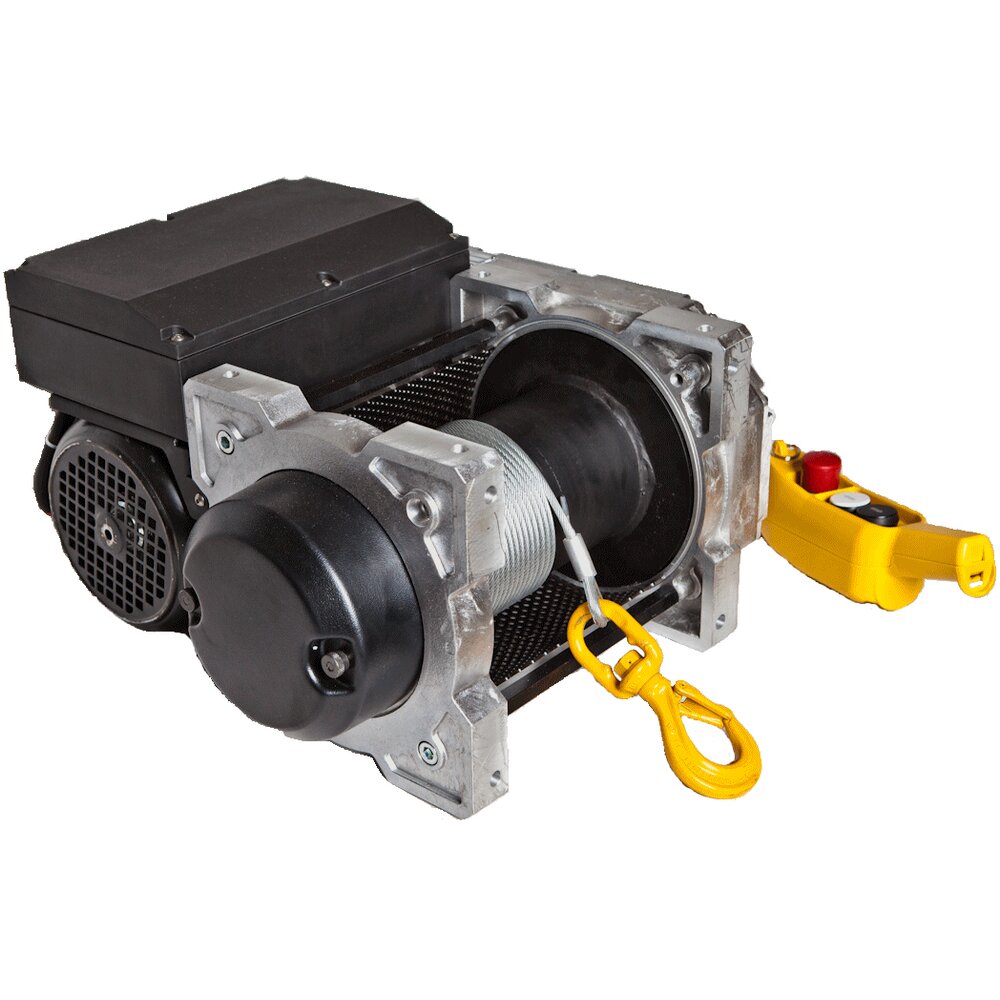

Electric winch TRBoxter BT 1-speed

Huchez

General:
Electric winch for loads from 250 up to 1500 kg with low voltage control and 1 speed.

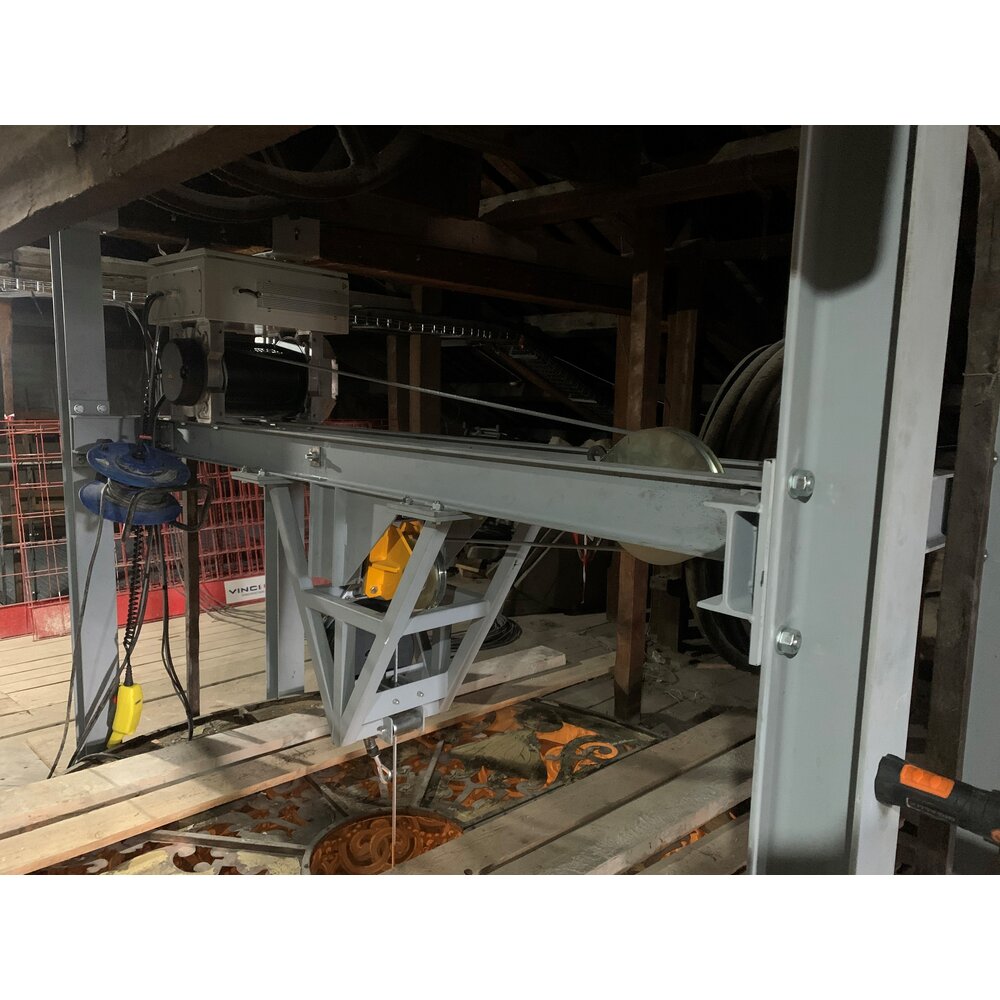

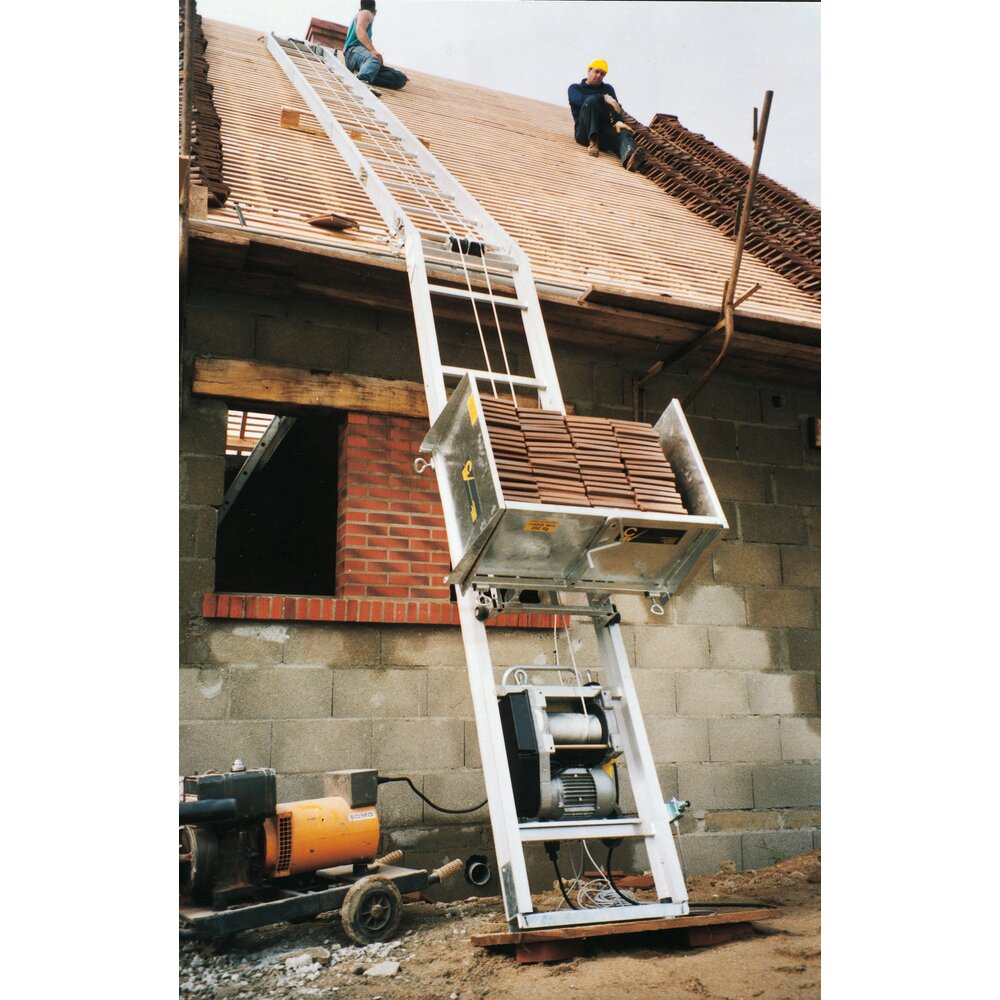

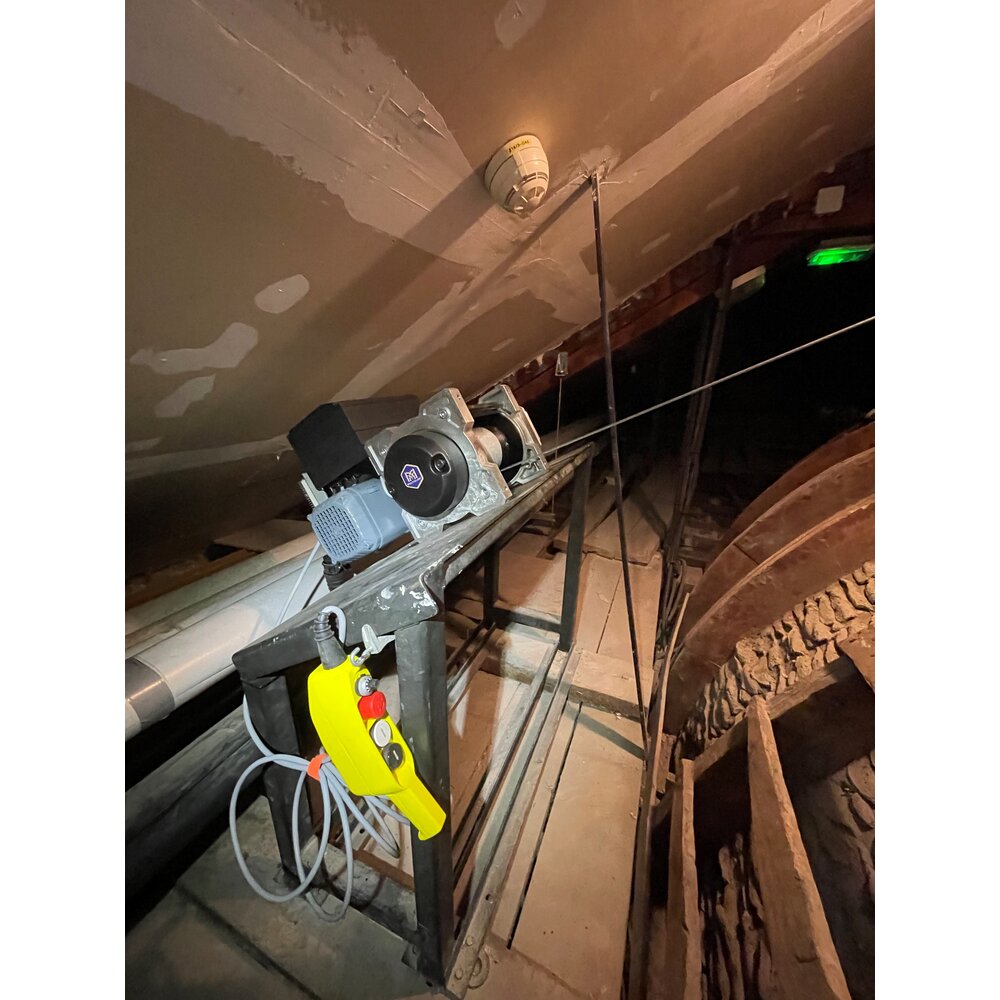

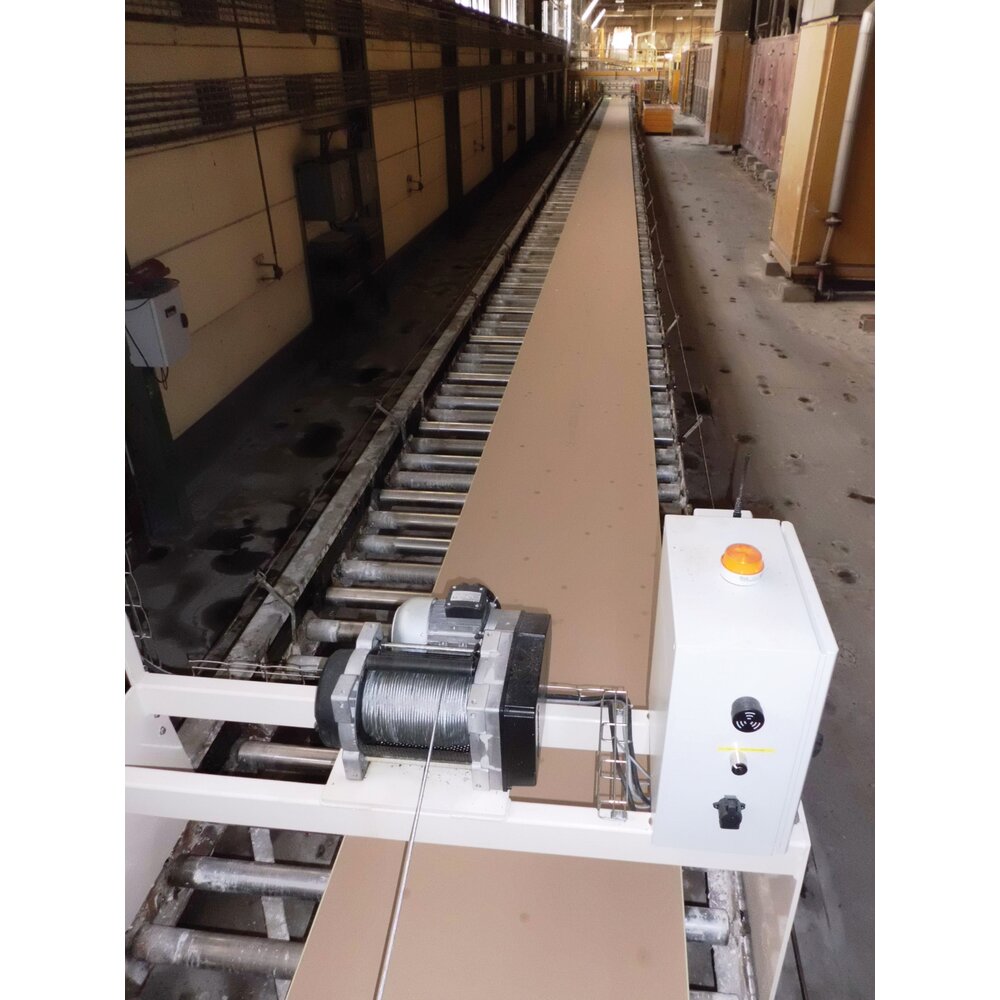

Multifunctional electric winch offering many rope attachments, rope outlets and options. Robust and compact, it benefits of a high operating factor for all kind of applications such as for example: Industrial applications, Building and public works, Theatre applications, Integration into many types of devices, cranes, material lifts etc.

Technical properties:

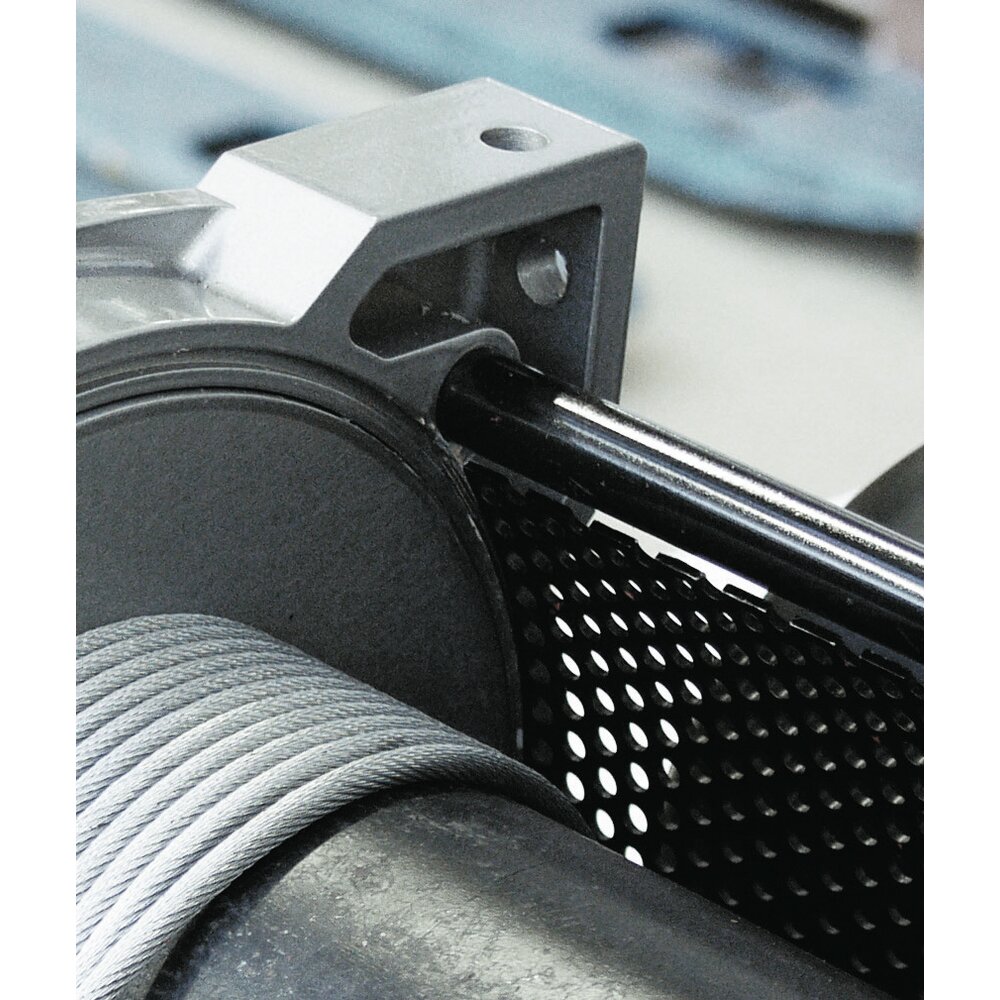

- Welded steel drum.
- Aluminium casing.
- The low voltage control protects the user from electrical risks.
- Asynchronous, single phase motors (230 V – 50 Hz P=0.75 or 1.1 kW depending on the models)
- Threephase motors (230/400 V – 50 Hz P= 0.75 or 1.1 kW depending on the models).
- Reducer sealed in oil bath with helical gears.
- 24 V or 190 V direct current electromagnetic brake (depending on the models).
- Electrical equipment under sealed cover.
- Very low voltage, 24 V remote control with socket – IP 65 protection.

Optional:
- limit switch.
- Radio control.
- load limiter.
- Lengthened drum models. Wirerope capacity will increase by 1.5 x standard capacity.

  • Material: Aluminum.
  • Marking: CE-marked
  • Temperature range: -10°C to +50°C.
