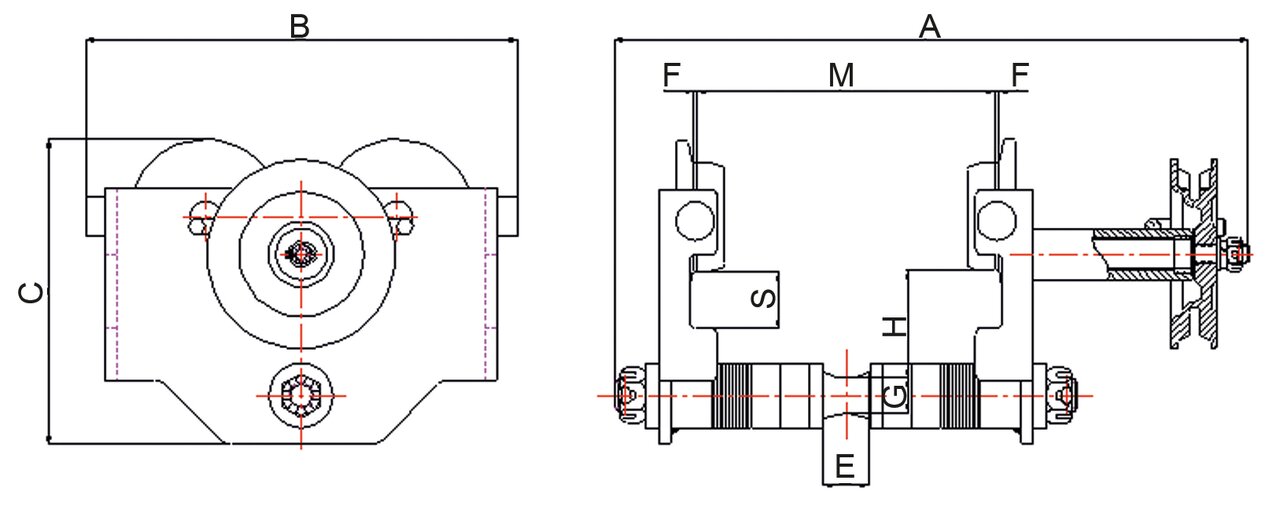

POWERTEX geared trolley operated by the chain. A compact and low built design with low dead weight in solid steel construction. It includes mechanical stops to ensure that the trolley is kept on the beam in case of an accident (anti-drop + anti-tilt). Fits most types of beam profiles and most brands of lifting blocks and electric hoists. Wheels with ball bearings.
Supplied with the grey label for adhering over white nameplate for use in the entertainment industry.
Static test coefficient: WLL x 1,5.
- Marking: According to standard, WLL, CE and individual serial number.
- Finish: Black painted.
- Standard: EN 13157
- Note: Working handchain length is 3m as standard. Available in other lengths.
- Safety factor: 4:1
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
