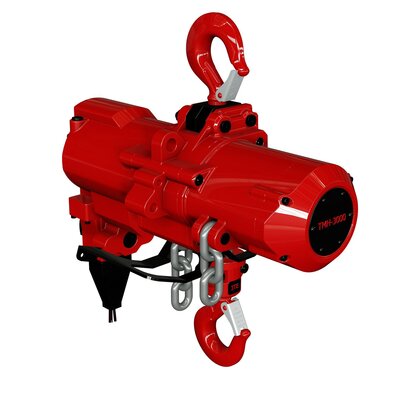

With M4 classification of mechanism this hoist is extremely reliable. This hoist will guarantee the continuity of your process. The TMH hoists are designed
with a full load supporting eye for installation and securing (during lift applications) the hoist for extra safety.
Standard features:
- Precise variable speed control (cord- and pendant control)
- Optimum control of the load, very precise positioning
- Main air shut off valve
- Mechanical end stop system
- Load limiter built-in without loss of headroom
- Low noise level (80 dBA)
- Air pressure 0,4 - 0,63 MPa (4-6,3 bar)
- Piped away exhaust air
Optional features:
- Marine Specification/Corrosion resistant
- Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request)
- Choice of pendants
- Radio control pendant for electro pneumatic controls
- Control systems
- Chain collectors (PVC, galvanised or stainless steel)
- Various types of hook or clevis available
- Air supply systems and valves
- Piped away exhaust air
- In house design for "specials"
- Festoon systems
- Main air shut off valve
ATEX:
- According to EC Directive 94/9/EC (Ex Classification)
Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold seperatly.)







Select a row from the table below, then click the add to quote button
Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Get CAD
Download

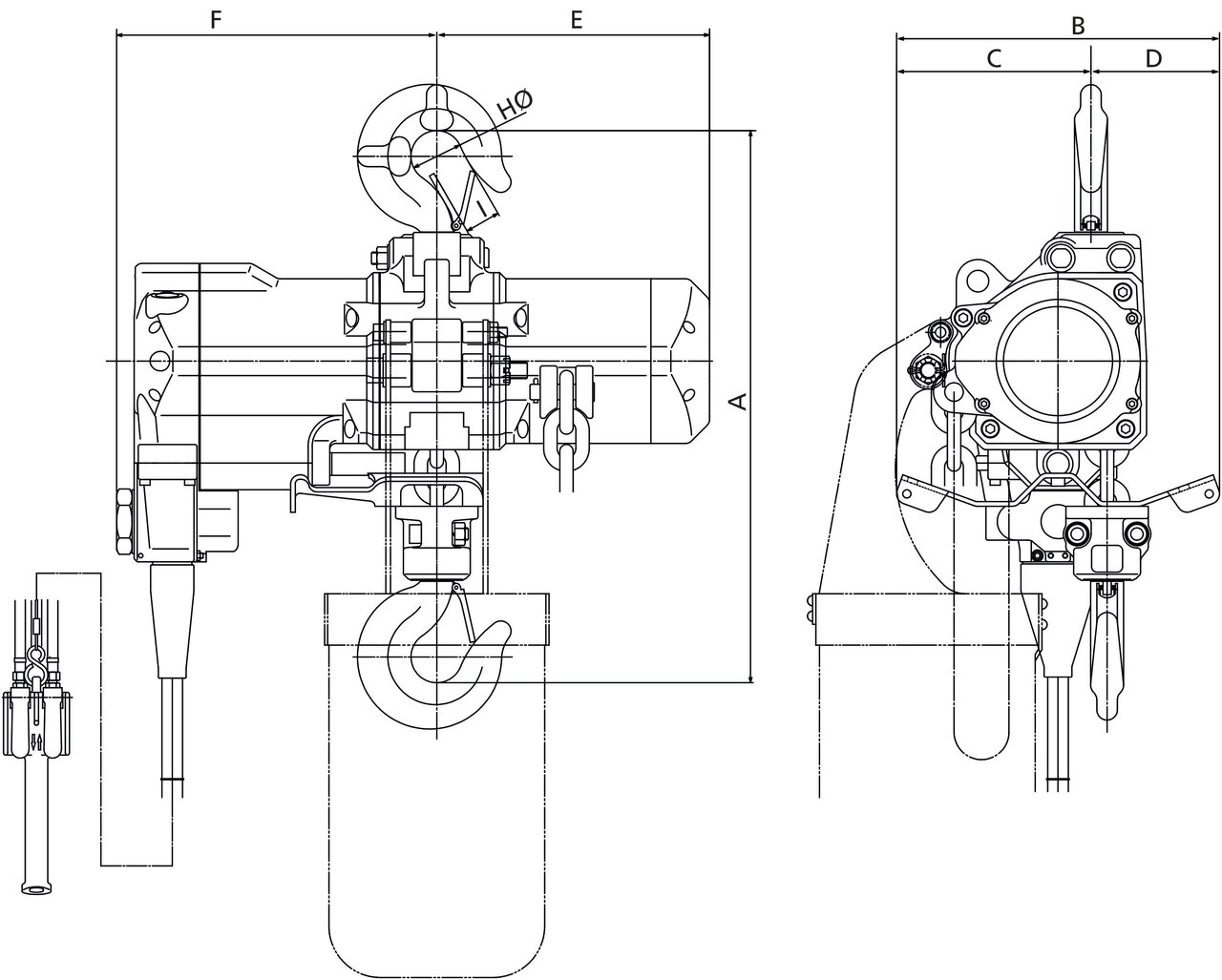

Type | A | B | C | D | E | F | H Ø | I |
TMH-3000C | 537 | 314 | 189 | 125 | 265 | 311 | 50 | 34 |
TMH-3000PE | 537 | 314 | 189 | 125 | 265 | 311 | ||
TMH-6000C2 | 742 | 371 | 245 | 126 | 265 | 311 | 65 | 42 |
TMH-6000P2E | 742 | 371 | 245 | 126 | 265 | 311 | 65 | 42 |
TMH-9000C3 | 783 | 455 | 160 | 295 | 265 | 311 | 75 | 53 |
TMH-9000P3E | 783 | 455 | 160 | 295 | 265 | 311 | 75 | 53 |
TMH-12000C4 | 856 | 398.5 | 149.5 | 249 | 309 | 266 | 83 | 64 |
TMH-12000P4E | 856 | 398.5 | 149.5 | 249 | 309 | 266 | 83 | 64 |
TMH-15000C5 | 855 | 466 | 152.5 | 313.5 | 300 | 275 | 83 | 58 |
TMH-15000P5E | 855 | 466 | 152.5 | 313.5 | 300 | 275 | 84 | 58 |
