Highspeed air chain hoist for loads from 500 up to 980 kg.
RED ROOSTER Air Chain Hoists are especially developped for the "Material Handling Industry". For example: warehousing, packaging etc.
These hoists have a very high lifting and lowering speed, making them very suitable for applications with long lifting heights.
- Very high lifting and lowering speeds
- Maximum speed adjustable, lifting and lowering speed independent from each other.
- Precise variable speed control (cord - and pendant control).
- Optimum control of the load, very precise positioning.
- Compact and light weight.
- Exhaust hose easy to assemble
- Endstop system
- Air motor is cooled by the exhaust air (internal)
- Cord control or pendant control
- Low noise level
- Aluminum housing
Optional:
- Marine Specification/Corrosion resistant
- Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
- Choice of pendants.
- Radio control pendant for electro pneumatic controls.
- Control systems.
- Chain collectors (PVC, galvanised or stainless steel).
- Various types of hook or clevis available.
- Air supply systems and valves.
- Air Service unit.
- Piped away exhaust air.
- In house design for "specials".
- Festoon systems.
- Main air shut off valve.
ATEX:
- According to EC Directive 94/9/EC (Ex Classification)
Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold separately.)
- Features: Very high lifting and lowering speeds.



Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

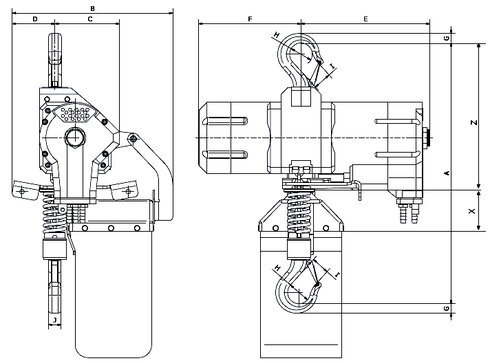

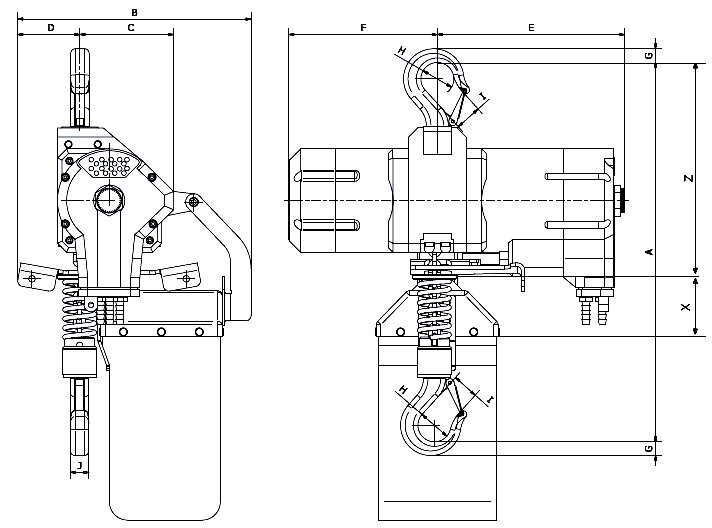

Type
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Hø
|
I
|
J
|
X
|
Z
|
|
mm
|
|||||||||||

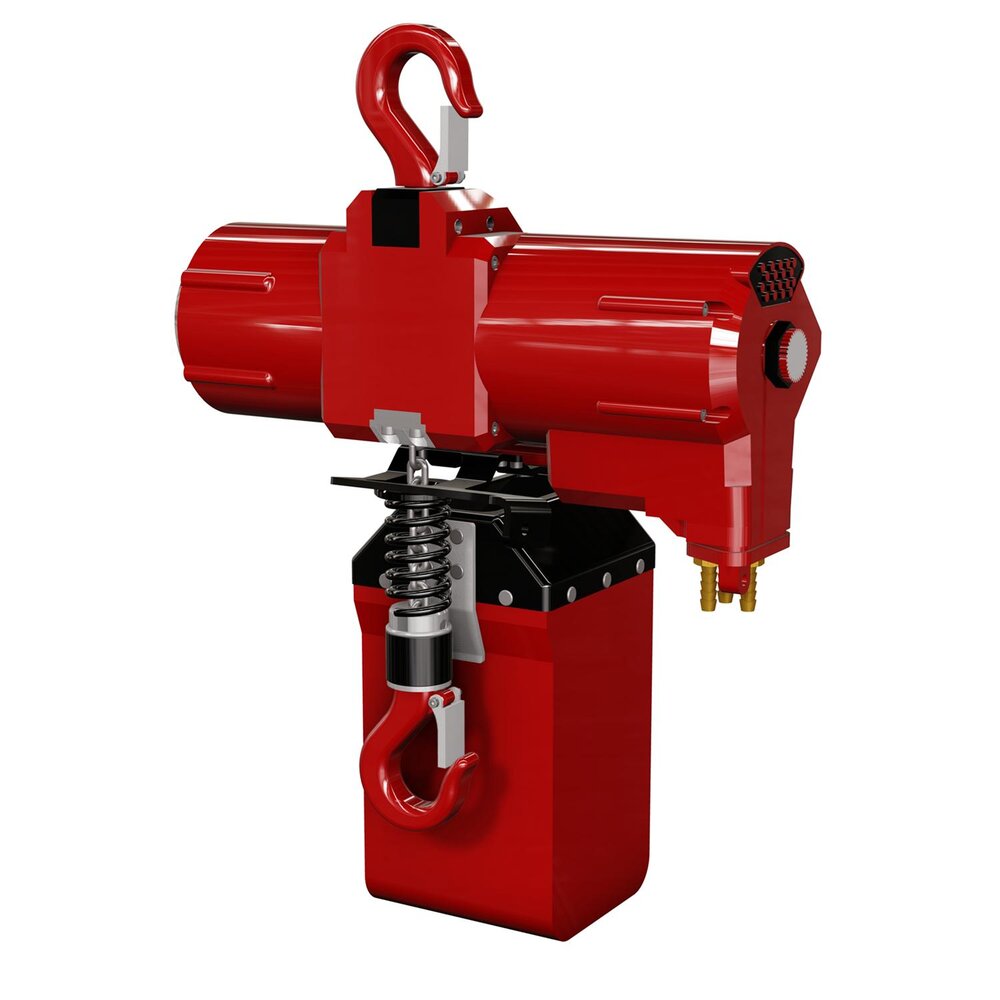

TCS-500C / TCS-500PE
|
415
|
255
|
13
|
68
|
205
|
163
|
15
|
35
|
22
|
22
|
40
|
210
|

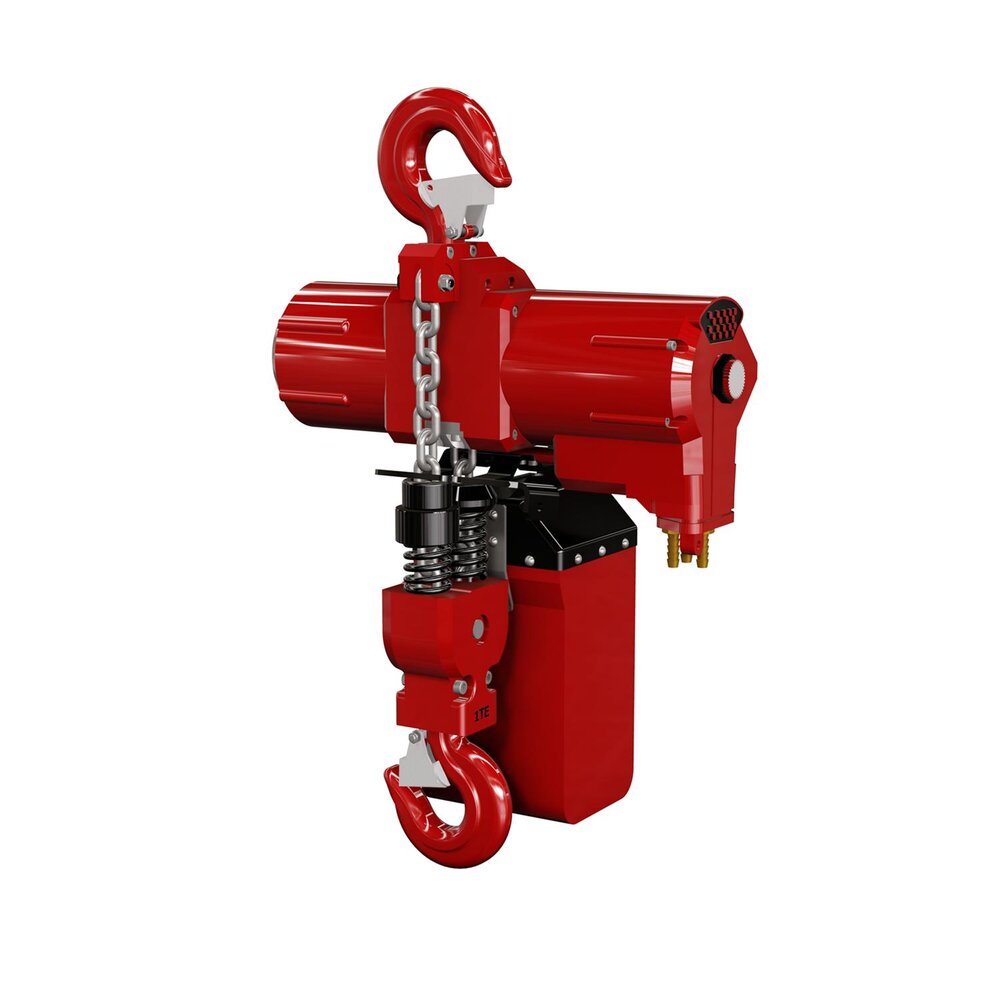

TCS-980C2 / TCS980P2E
|
510
|
205
|
123
|
37
|
163
|
205
|
30
|
40
|
29
|
25
|
40
|
225
|
