Powertex
  • Cr6+ Free

POWERTEX geared trolley operated by the chain. A compact and low built design with low dead weight in solid steel construction. It includes mechanical stops to ensure that the trolley is kept on the beam in case of an accident (anti-drop + anti-tilt). Fits most types of beam profiles and most brands of lifting blocks and electric hoists. Wheels with ball bearings.
Supplied with the grey label for adhering over white nameplate for use in the entertainment industry.
Static test coefficient: WLL x 1,5.

  • Marking: According to standard, WLL, CE and individual serialnumber.
  • Finish: Black painted.
  • Standard: EN 13157
  • Note: Working handchain length is 3m as standard. Available in other lengths.
  • Safety factor: 4:1
Trolley geared_with nameplate

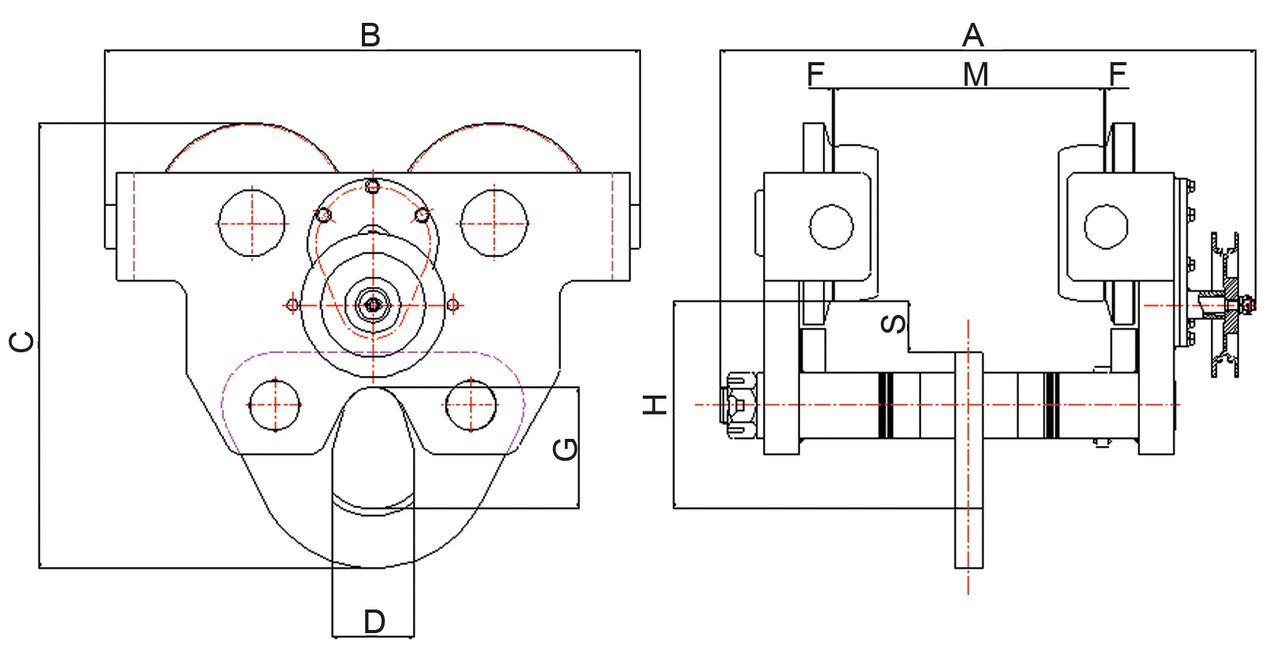

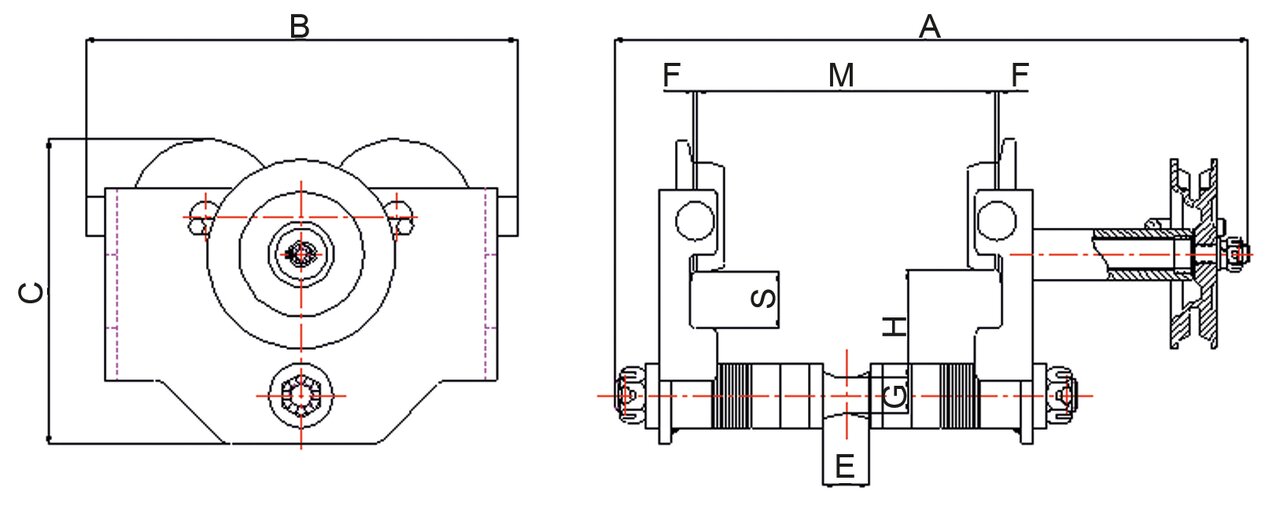

Trolley geared_0.25-5t_dwg Trolley geared_10t_dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Min. radius of curve m Wheel Ø outside/inside M
mm
A
mm
B
mm
C
mm
D
mm
H
mm
S
mm
E
mm
G
mm
F
mm
Weight
kg
CAD
16.05PGTS1005 0.5 0,8 79/55 50-180 382 224 159 - 57.5 (55.5) 30 27 18 (22) 1.5-3 9
16.05PGTS1010 1 1 96,2/68 66-188 398 270 190 - 67 (65) 35,5 29 22 (26) 1.5-3 15
16.05PGTS1020 2 1,1 108,2/80 88-200 420 300 218 - 74 (72) 36 43 (35.6) 28 (32) 1.5-3 22
16.05PGTS1030 3 1,3 131,3/100 100-205 456 356 262,5 - 87 (85) 38 46 34 (38) 1.5-3 34
16.05PGTS1050 5 1,4 143,7/110 114-212 474 405 292 - 95.5 (93.5) 41 56 39 (43) 1.5-3 49
