Adjustable runway beam trolley. Fitted with a width adjustment locking mechanism and wheelguarding anti-drop plates.
Proof load: 2 x WLL.

  • Finish: Yellow painted.
  • Note: All WLL apply to vertical lifting only.
  • Safety factor: 5:1.
Select a row from the table below, then click the add to quote button

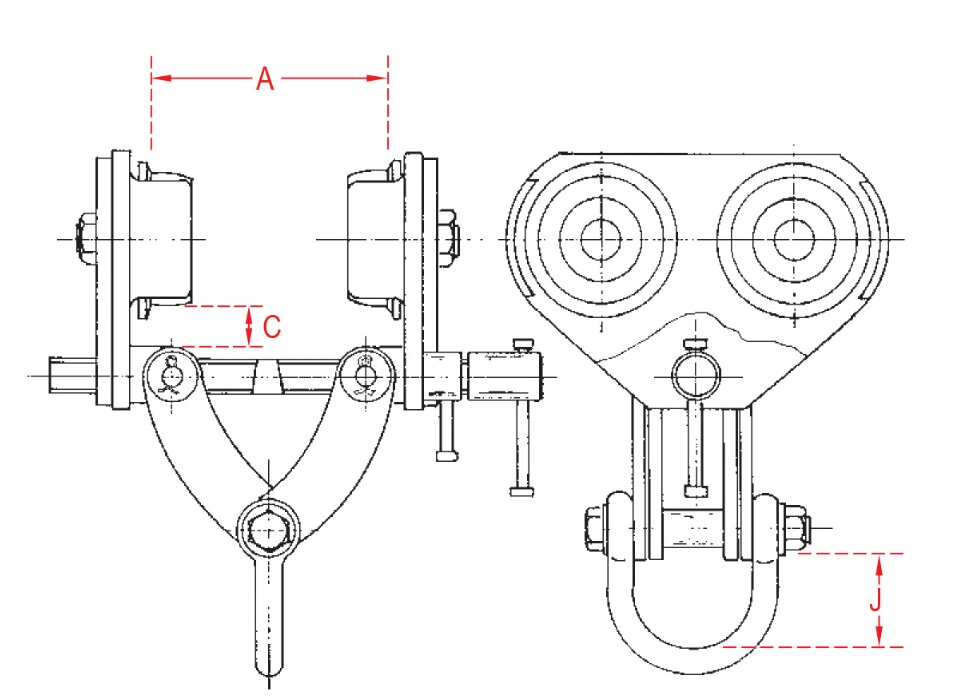

Part Code Code WLL
ton
Grab width A B
mm
T
mm
Weight
kg
CAD
16.056140B1 B1 3 76-203 28 100 24
16.056140B2 B2 6 105-305 32 100 50
16.056140B3 B3 10 160-305 38 130 75
