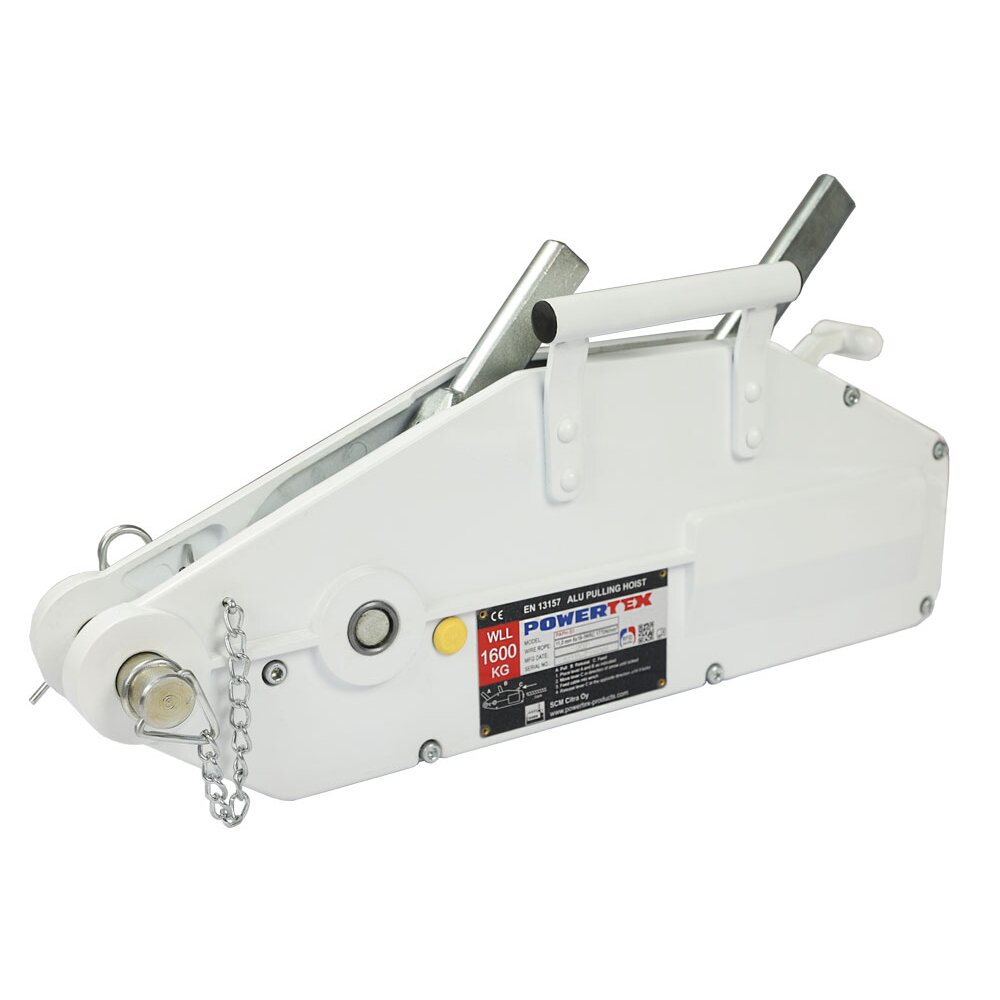

Aluminum Wire Rope Hoist POWERTEX PAPH-S1

POWERTEX Aluminum wire rope hoist PAPH-S1 is a compact and lightweight hoist that can be used for lifting, pulling and tightening offering very long lifting heights. It works with a steel wire rope running through the jaws of the hoist with a pulling speed of app. 3 m/min. The double sets of jaws op

Show more

Product number:
Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX Aluminum wire rope hoist PAPH-S1 is a compact and lightweight hoist that can be used for lifting, pulling and tightening offering very long lifting heights. It works with a steel wire rope running through the jaws of the hoist with a pulling speed of app. 3 m/min. The double sets of jaws open in turns so that the wire rope will always stay tight during the lifting/lowering operation.

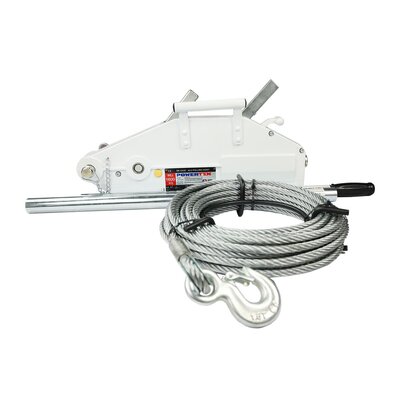

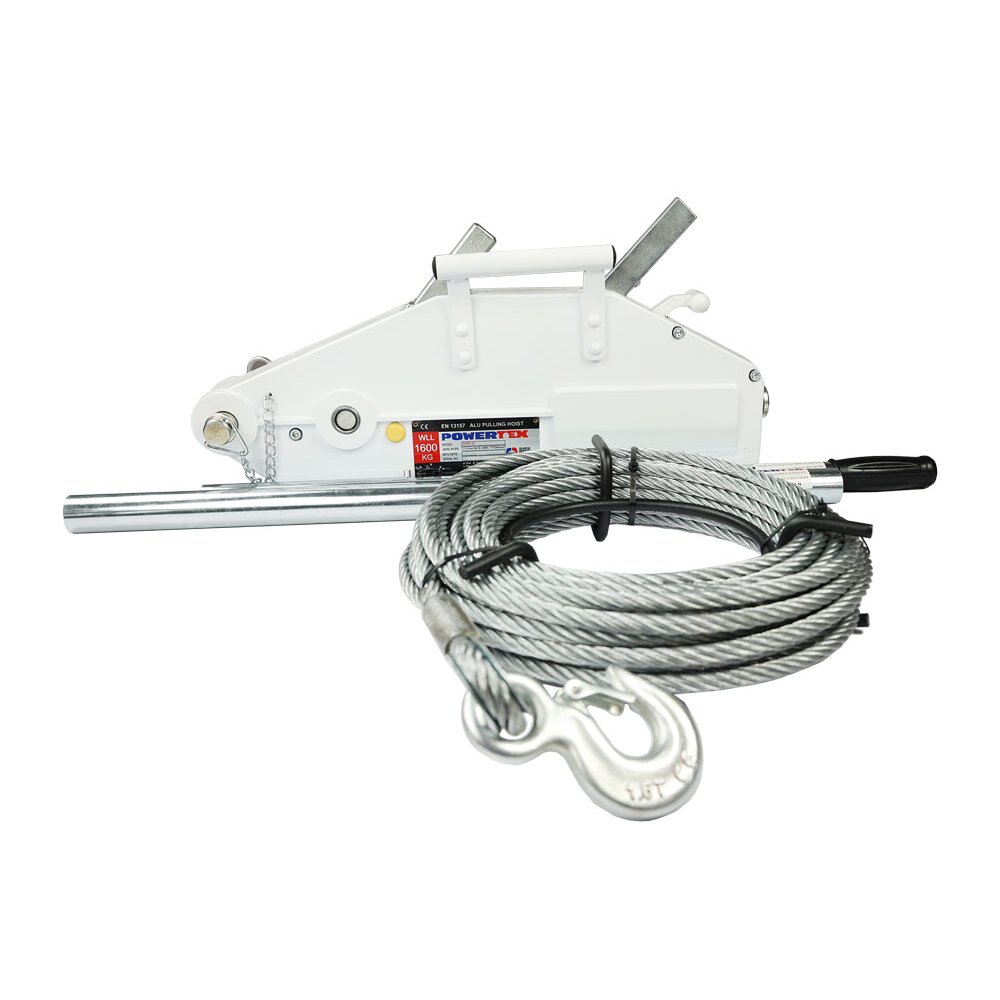

20 m coiled steel wire rope with latch hook is included.

Features:

  • Safe – Each hoist is dynamic proof load tested 1,25 x WLL before leaving the factory.
  • Compact, lightweight construction with aluminum covers.
  • Durable construction with powder coated finish and plated frame components.

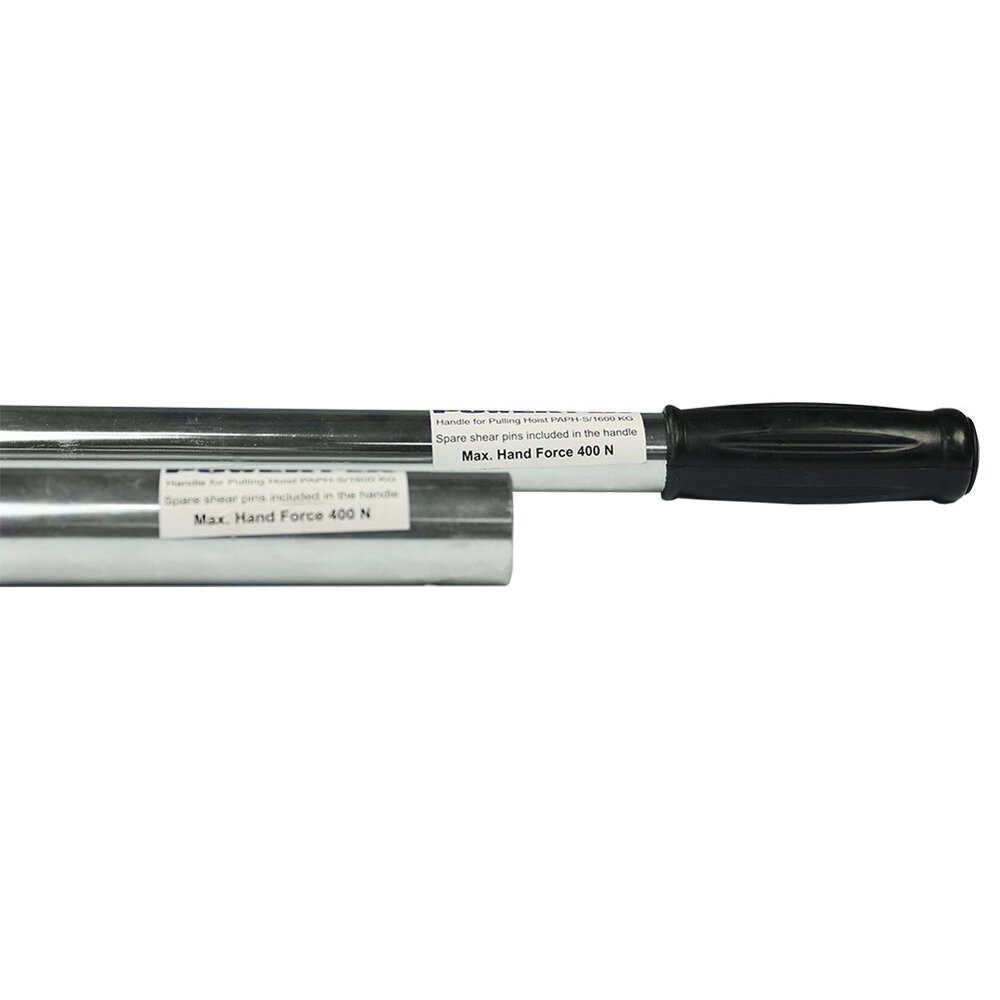

  • Equipped with replaceable shear safety pin that prevents overloading (5 spare pins included in the carrying handle/pulling handle).
  • Equipped with rubber protection at the top opening preventing dirt from entering the hoist.

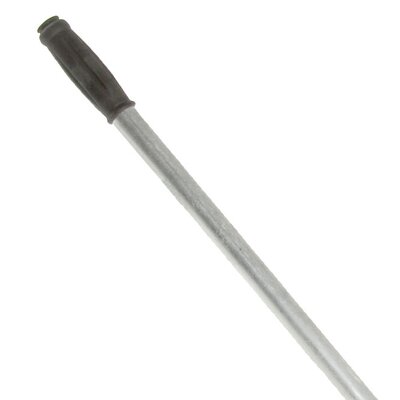

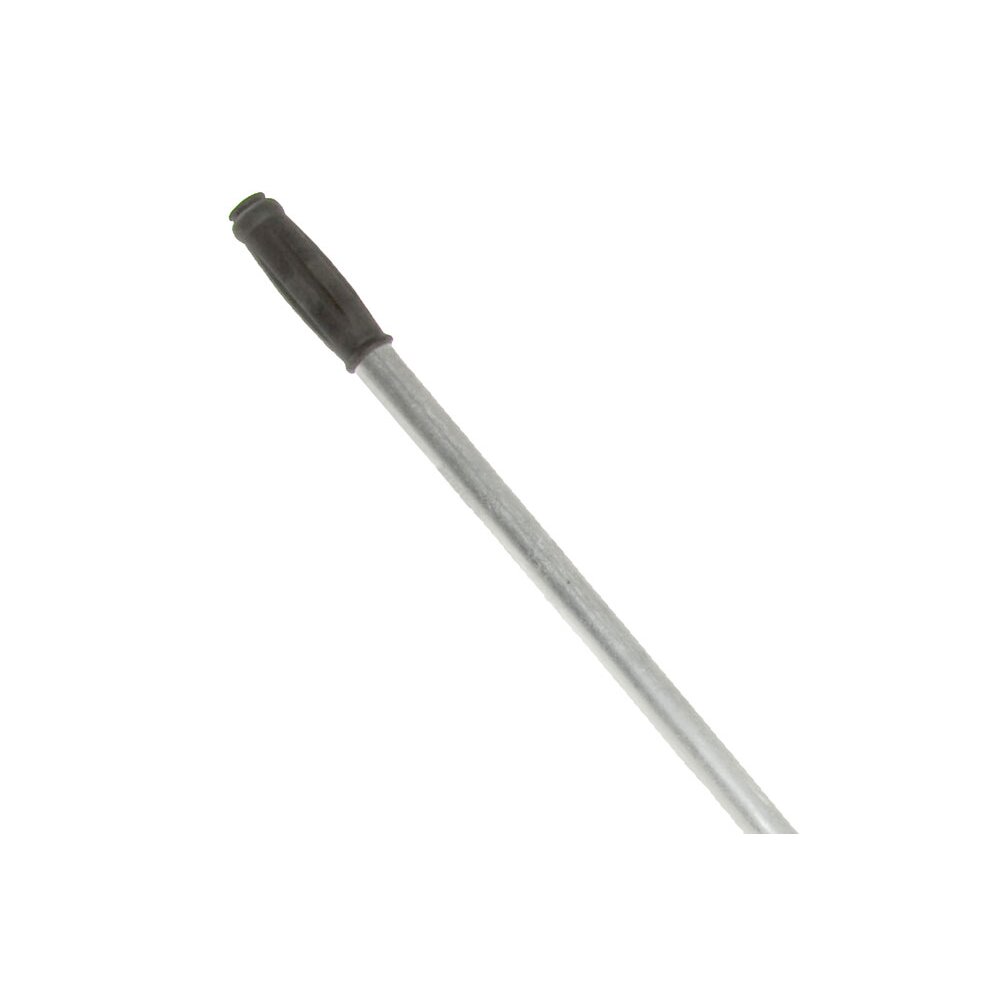

  • Carrying handle for easy transportation and handling.

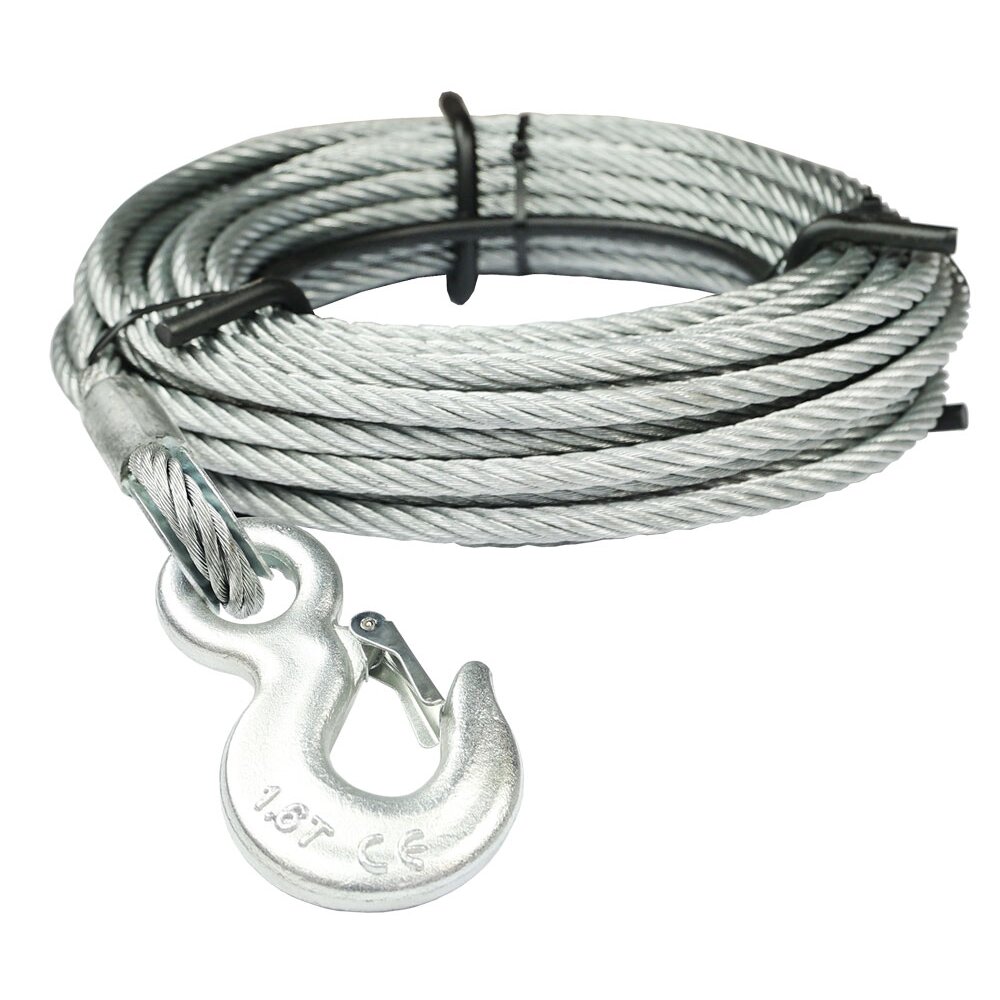

  • 20 m coiled steel wire rope with latch hook is included and other lengths can be offered.
  • Hooks are designed to open at overload instead of breaking.
  • Hooks fitted with heavy duty steel safety latches.
  • RFID equipped (chip) for easy service and inspection.
  • QR code for on-site access to Multilanguage user manual.
  • Test certificate and Declaration of Conformity enclosed with each hoist.
  • 14 language User manual enclosed with each hoist.
  • Spare parts available.
  • Material: Durable aluminium/steel construction, Rubber handle
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Wire rope type, Serial number, User manual/QR code.
  • Temperature range:  -10°C up to +50°C
  • Finish: White powder coated body, plated steel parts and galvanized wire rope / hook.
  • Standard: EN 13157, EN 13414-1
  • Note: Only original rope can be used with the hoist!
  • Safety factor: 4:1
