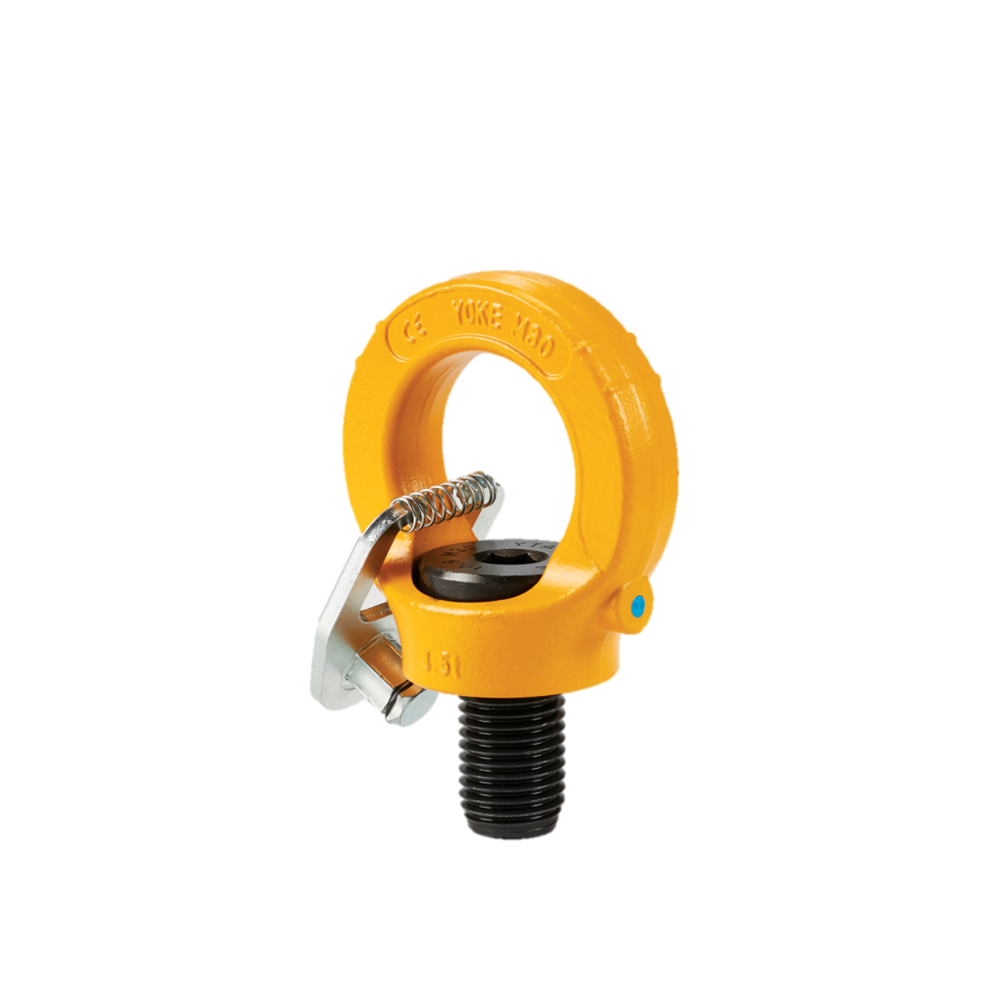

The lifting eye rotates through 360° adjustable in the direction of the load.
All Yoke lifting points meet or exceed all the requirements of ASME B30.26.
- Material: Alloy steel, quenched and tempered. Captive bolt with high WLL.
- Marking: According to standard, CE-marked
- Temperature range: -40° up to +200°C (without reduction in WLL).
- Finish: Painted.
- Standard: EN 1677-1
- Note: Built-in RFID/NFC chip
- Safety factor: 4:1
- Grade: 10
Select a row from the table below, then click the add to quote button
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Get CAD
Download

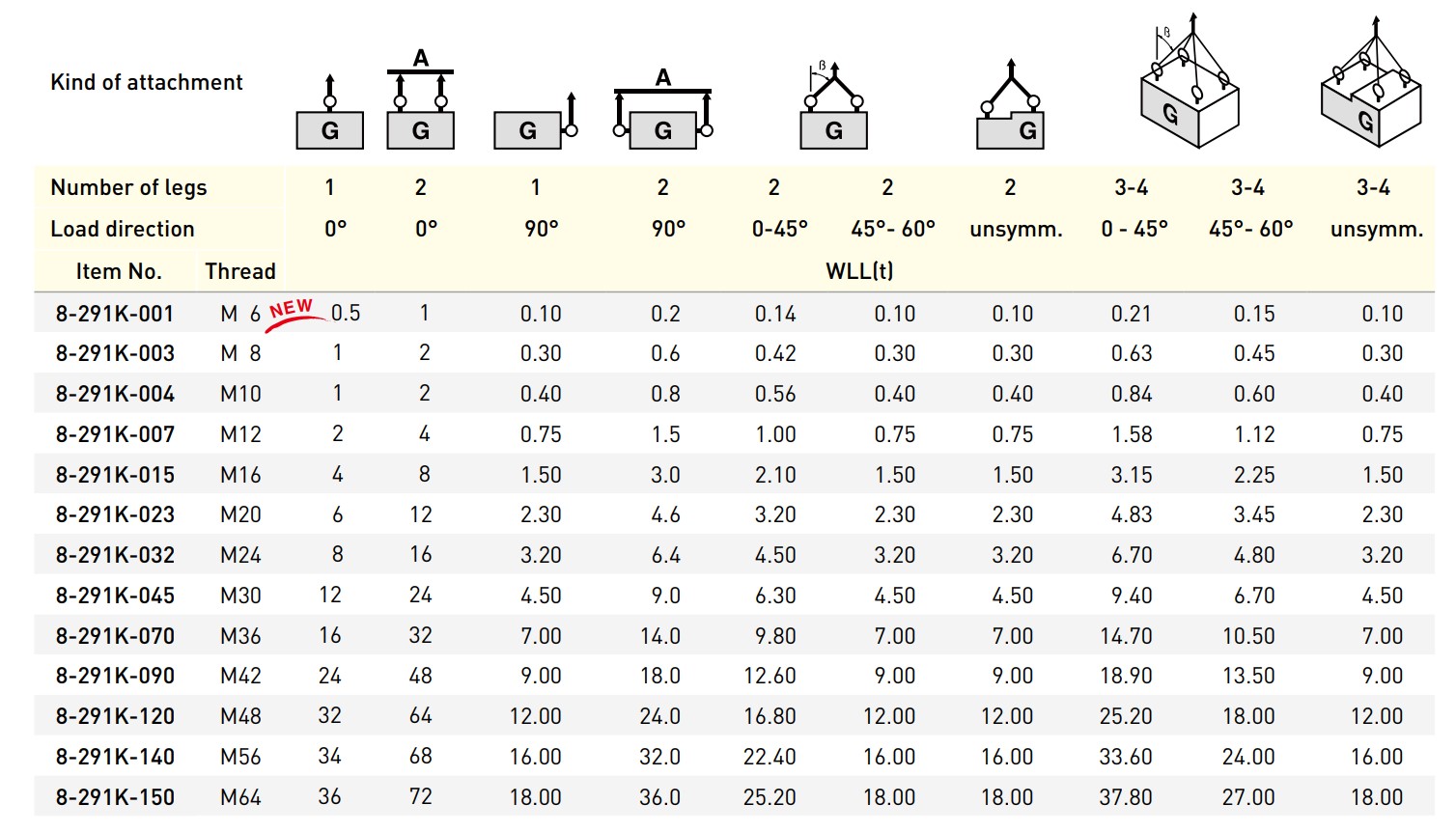

Load diagram
|
Lifting method
|
 |
 |
 |
 |
 |
|
|
|
|
 |
|||||
|
No of legs
|
1
|
2
|
1
|
2
|
2
|
2
|
3-4
|
3-4
|
2
|
3-4
|
|||||
|
Angle of inclination
|
0°
|
0°
|
90°
|
90°
|
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
unsymm.
|
unsymm.
|
|||||
| Threas | Load capacity (ton) | ||||||||||||||
|
M 8
|
1
|
2
|
0,3
|
0,6
|
0,42
|
0,3
|
0,63
|
0,45
|
0,3
|
0,3
|
|||||
|
M 10
|
1
|
2
|
0,4
|
0,8
|
0,56
|
0,4
|
0,8
|
0,6
|
0,4
|
0,4
|
|||||
|
M 12
|
2
|
4
|
0,75
|
1,5
|
1
|
0,75
|
1,5
|
1,1
|
0,75
|
0,75
|
|||||
|
M 16
|
4
|
8
|
1,5
|
3
|
2,1
|
1,5
|
3,1
|
2,2
|
1,5
|
1,5
|
|||||
|
M 20
|
6
|
12
|
2,3
|
4,6
|
3,2
|
2,3
|
4,8
|
3,4
|
2,3
|
2,3
|
|||||
|
M 24
|
8
|
16
|
3,2
|
6,4
|
4,5
|
3,2
|
6,7
|
4,8
|
3,2
|
3,2
|
|||||
|
M 30
|
12
|
24
|
4,5
|
9
|
6,3
|
4,5
|
9,4
|
6,7
|
4,5
|
4,5
|
|||||
|
M 36
|
16
|
32
|
7
|
14
|
9,8
|
7
|
14,7
|
10,5
|
7
|
7
|
|||||
|
M 42
|
24
|
48
|
9
|
18
|
12,6
|
9
|
18,9
|
13,5
|
9
|
9
|
|||||
|
M 48
|
32
|
64
|
12
|
24
|
16,8
|
12
|
25
|
18
|
12
|
12
|
|||||
|
M 56
|
32
|
64
|
12
|
24
|
16,8
|
12
|
25
|
18
|
12
|
12
|
|||||
|
M 64
|
32
|
64
|
12
|
24
|
16,8
|
12
|
25
|
18
|
12
|
12
|
|||||
