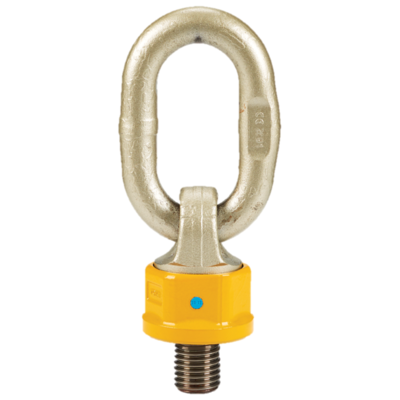

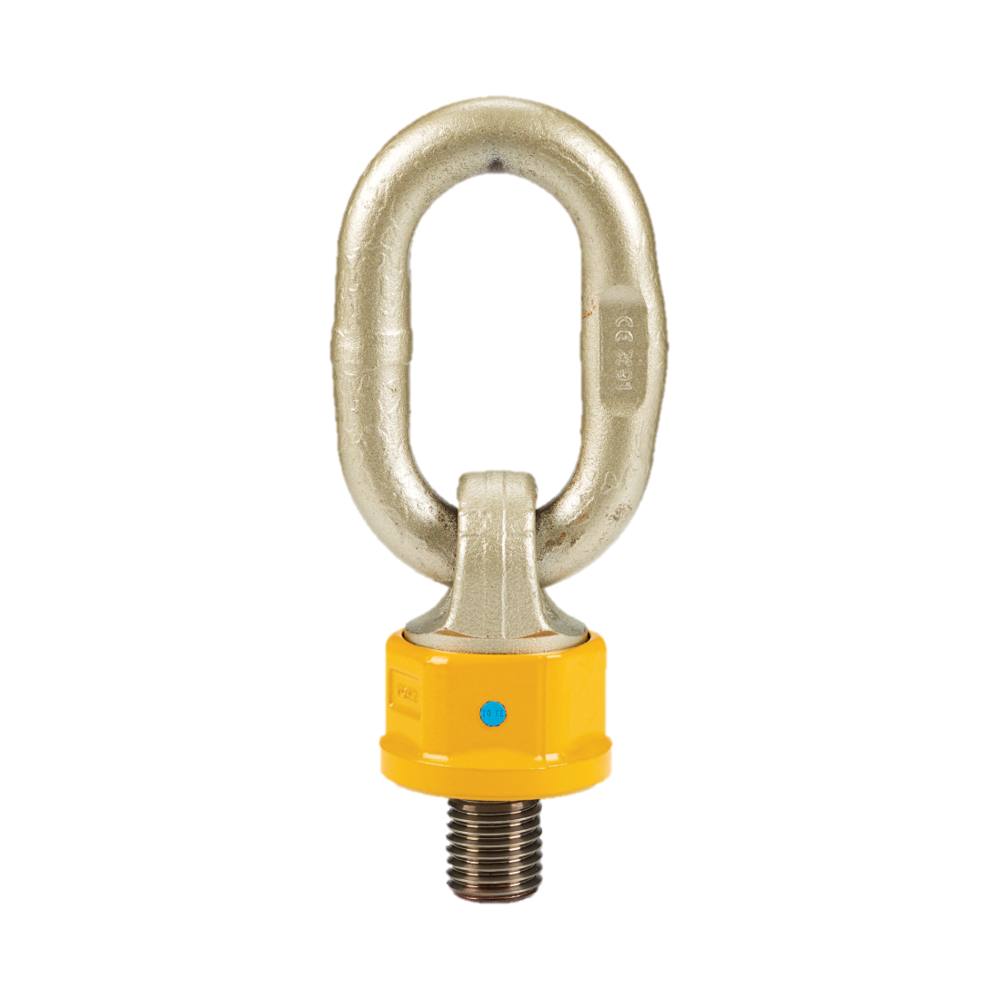

Pivots to 230°, rotates through 360° due to its unique ball bearing design.
Certified by DGUV GS-OA-15-04.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and batch code links to Test Certificate sheet.
Bolt are Metric thread (ASME / ANSI B18.3.1M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
All YOKE Super points meet or exceed all the requirements of ASME B30.26.
Easy to attach or dismantle due to the forged hexagon shaped body of the Super Point.
Capable of rotating under load.
With the new WLL tables you can find the right Super Point attachment for your application and by the red marking on both sides you can measure disposal stage of the Super Point.
- Material: Forged alloy steel, quenched and tempered.
- Marking: According to standard, CE-marked
- Standard: EN 1677-1
- Note: Built-in RFID/NFC chip
- Warning: Do not turn continuously in 90 degree direction at full load.
- Safety factor: 4:1
- Grade: 10
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
| Kind of attachment |  |
 |
 |
|
 |
|
 |
 |
||
| Number of legs | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 3-4 | 3-4 | 3-4 |
| Angle of inclination | 0° | 0° | 90° | 90° | 0-45° | 45-60° | Unsymm. | 0-45° | 45-60° |
Unsymm. |
| Thread | WLL (ton) | |||||||||
| M8 | 0,6 | 1,2 | 0,4 | 0,8 | 0,6 | 0,4 | 0,4 | 0,8 | 0,6 | 0,6 |
| M10 | 1 | 2 | 0,5 | 1 | 0,7 | 0,5 | 0,5 | 1 | 0,75 | 0,75 |
| M12 | 1,4 | 2,8 | 0,7 | 1,4 | 1 | 0,7 | 0,7 | 1,4 | 1 | 1 |
| M12 | 1,4 | 2,8 | 0,7 | 1,4 | 1 | 0,7 | 0,7 | 1,4 | 1 | 1 |
| M14 | 2 | 4 | 1 | 2 | 1,4 | 1 | 1 | 2,12 | 1,5 | 1,5 |
| M16 | 2,8 | 5,6 | 1,4 | 2,8 | 2 | 1,4 | 1,4 | 3 | 2,12 | 2,12 |
| M16 | 2,8 | 5,6 | 1,4 | 2,8 | 2 | 1,4 | 1,4 | 3 | 2,12 | 2,12 |
| M16 | 2,8 | 5,6 | 1,4 | 2,8 | 2 | 1,4 | 1,4 | 3 | 2,12 | 2,12 |
| M20 | 3,4 | 6,8 | 1,7 | 3,4 | 2,4 | 1,7 | 1,7 | 3,55 | 2,5 | 2,5 |
| M24 | 3,4 | 6,8 | 1,7 | 3,4 | 2,4 | 1,7 | 1,7 | 3,55 | 2,5 | 2,5 |
| M20 | 5 | 10 | 2,5 | 5 | 3,55 | 2,5 | 2,5 | 5,3 | 3,75 | 3,75 |
| M20 | 5 | 10 | 2,5 | 5 | 3,55 | 2,5 | 2,5 | 5,3 | 3,75 | 3,75 |
| M20 | 5 | 10 | 2,5 | 5 | 3,55 | 2,5 | 2,5 | 5,3 | 3,75 | 3,75 |
| M20 | 5 | 10 | 2,5 | 5 | 3,55 | 2,5 | 2,5 | 5,3 | 3,75 | 3,75 |
| M24 | 8 | 16 | 4 | 8 | 5,6 | 4 | 4 | 8,5 | 6 | 6 |
| M24 | 8 | 16 | 4 | 8 | 5,6 | 4 | 4 | 8,5 | 6 | 6 |
| M24 | 8 | 16 | 4 | 8 | 5,6 | 4 | 4 | 8,5 | 6 | 6 |
| M24 | 8 | 16 | 4 | 8 | 5,6 | 4 | 4 | 8,5 | 6 | 6 |
| M30 | 8 | 16 | 4 | 8 | 5,6 | 4 | 4 | 8,5 | 6 | 6 |
| M30 | 12 | 24 | 6,7 | 13,4 | 9,5 | 6,7 | 6,7 | 14 | 10 | 10 |
| M30 | 12 | 24 | 6,7 | 13,4 | 9,5 | 6,7 | 6,7 | 14 | 10 | 10 |
| M30 | 12 | 24 | 6,7 | 13,4 | 9,5 | 6,7 | 6,7 | 14 | 10 | 10 |
| M30 | 12 | 24 | 6,7 | 13,4 | 9,5 | 6,7 | 6,7 | 14 | 10 | 10 |
| M30 | 12 | 24 | 8 | 16 | 11,2 | 8 | 8 | 16 | 12 | 12 |
| M30 | 12 | 24 | 8 | 16 | 11,2 | 8 | 8 | 16 | 12 | 12 |
| M36 | 15 | 30 | 10 | 20 | 14 | 10 | 10 | 21,2 | 15 | 15 |
| M36 | 15 | 30 | 10 | 20 | 14 | 10 | 10 | 21,2 | 15 | 15 |
| M42 | 15 | 30 | 12,5 | 25 | 17 | 12,5 | 12,5 | 25 | 18 | 18 |
| M42 | 15 | 30 | 12,5 | 25 | 17 | 12,5 | 12,5 | 25 | 18 | 18 |
| M42 | 15 | 30 | 12,5 | 25 | 17 | 12,5 | 12,5 | 25 | 18 | 18 |
| M45 | 15 | 30 | 12,8 | 25 | 17 | 12,8 | 12,8 | 25 | 18 | 18 |
| M48 | 15 | 30 | 12,5 | 25 | 17 | 12,5 | 12,5 | 25 | 18 | 18 |
| M42 | 20 | 40 | 13 | 26 | 18 | 13 | 13 | 27 | 19 | 19 |
| M45 | 25 | 50 | 17 | 34 | 23,5 | 17 | 17 | 35 | 25 | 25 |
| M48 | 25 | 50 | 17 | 34 | 23,5 | 17 | 17 | 35 | 25 | 25 |
| M48 | 25 | 50 | 17 | 34 | 23,5 | 17 | 17 | 35 | 25 | 25 |
| M56 | 25 | 50 | 18 | 36 | 25 | 18 | 18 | 37,5 | 26,5 | 26,5 |
| M56 | 25 | 50 | 18 | 36 | 25 | 18 | 18 | 37,5 | 26,5 | 26,5 |
| M64 | 25 | 50 | 20 | 40 | 28 | 20 | 20 | 42,5 | 30 | 30 |
| M64 | 32,5 | 65 | 28 | 56 | 39 | 28 | 28 | 58 | 42 | 42 |
