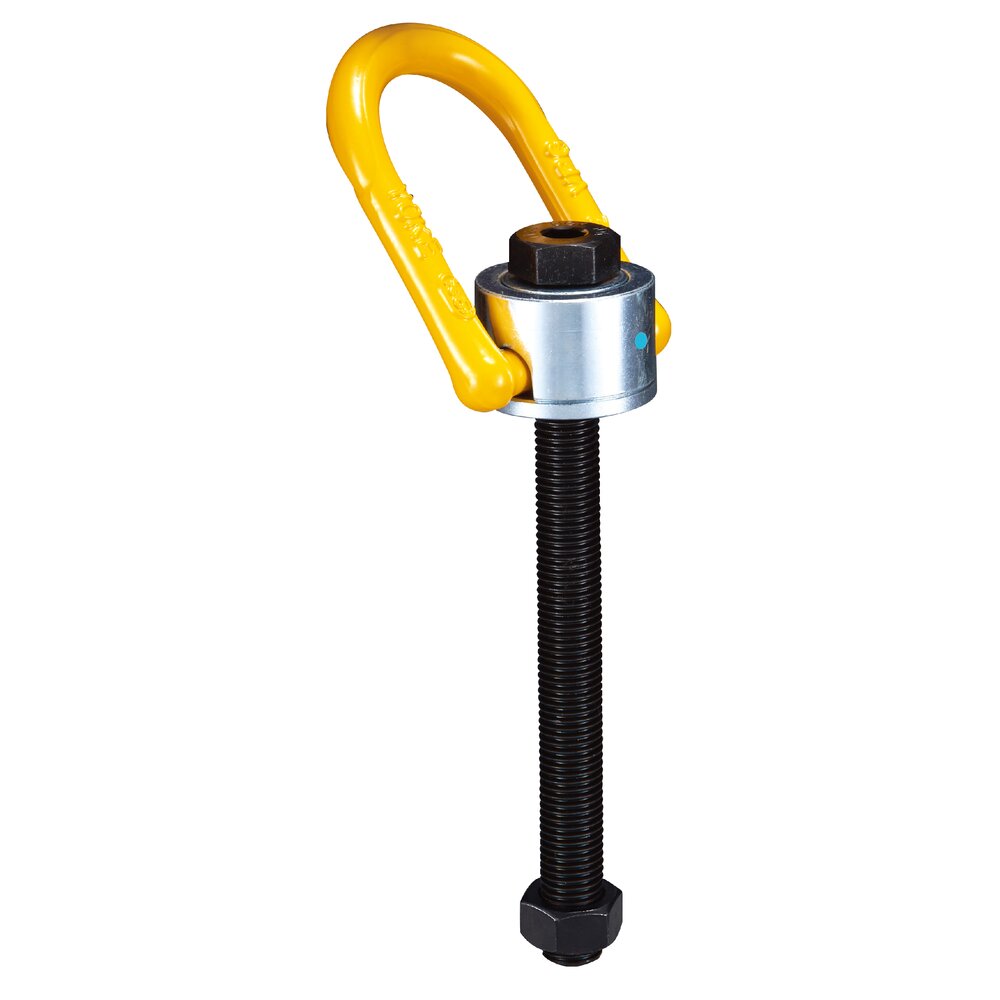

This swivel hoist ring rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolt are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- Quick and simple assembly, just a tapped hole is required.
- Material: Forged alloy steel, quenched and tempered
- Marking: According to standard, CE-marked
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 10
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
