Home / Products / Sling components & lifting hardware / Lifting hardware / Shackles / Clevis Shackles Pewag KSCHW

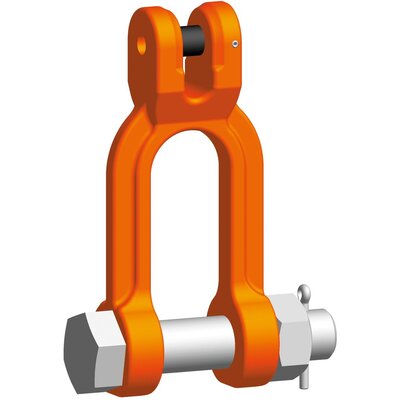

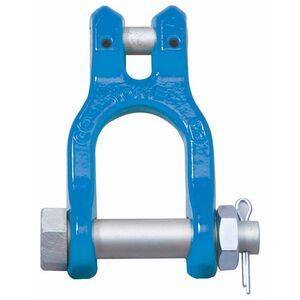

KSCHW Clevis shackles are designed for the assembling of chain slings. They are used as end fittings or suspension elements in chain slings.
Directly attached to the chain. Allows direct connection with other components such as spreader beams.

Material: High duty grade 10.
Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
Temperature range: -40ºC up to +380°C.
Finish: Orange powder coated.
Standard: EN 1677-1

Safety factor: 4:1
Grade: 10

Clevis Shackles KSCHW G10

Select a row from the table below, then click the add to quote button

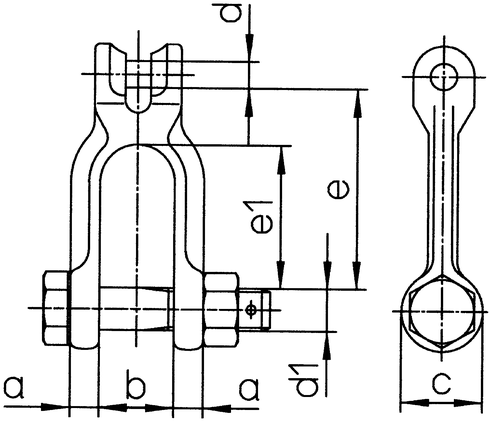

Part Code	Code	WLL ton	a mm	b min. mm	c mm	d mm	d1 mm	e mm	e1 mm	Weight kg
11.3933844	KSCHW 7/X	1.9	12	26	31	9	16	76	54	0.64
11.3933846	KSCHW 8/X	2.5	12	26	31	10	16	76	54	0.66
11.3933847	KSCHW 10/X	4	16	32	39	12	20	105	76	1.22
11.3933854	KSCHW 13/X	6.7	21	42	50	16	24	113	77	2.64

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
