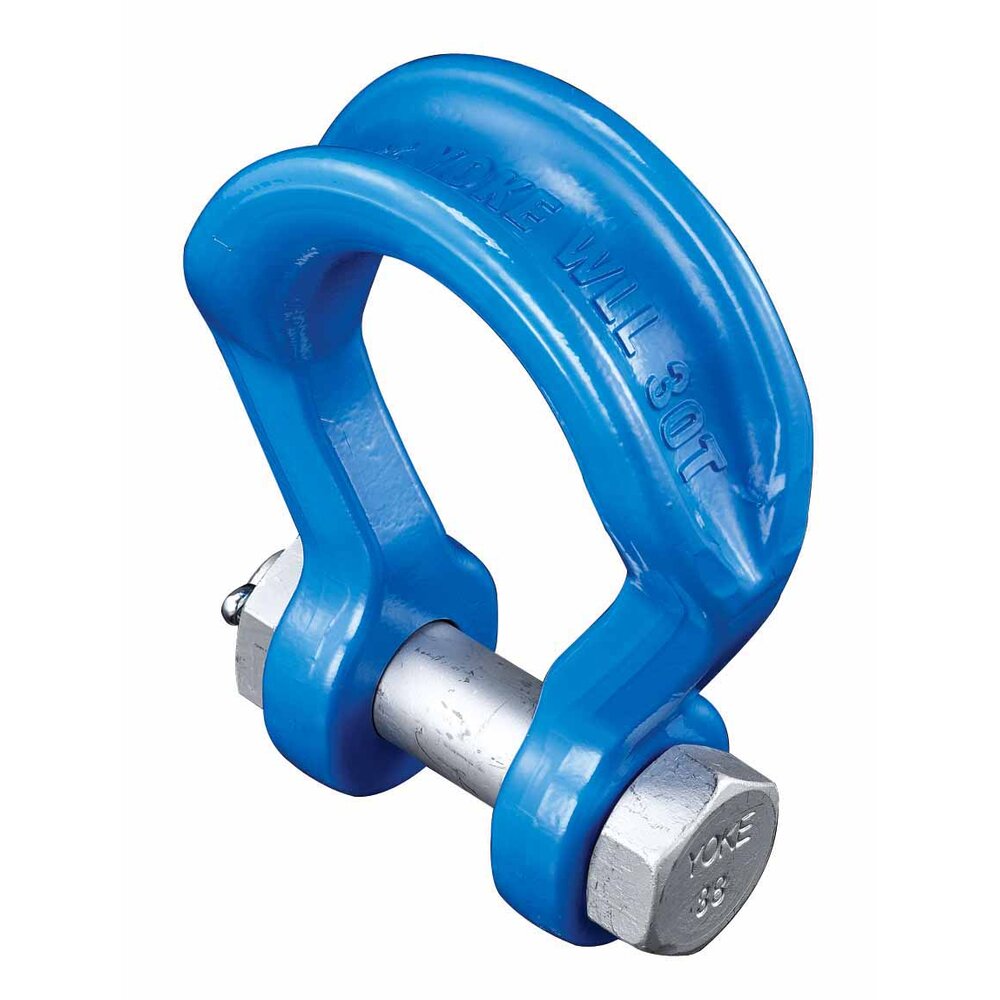

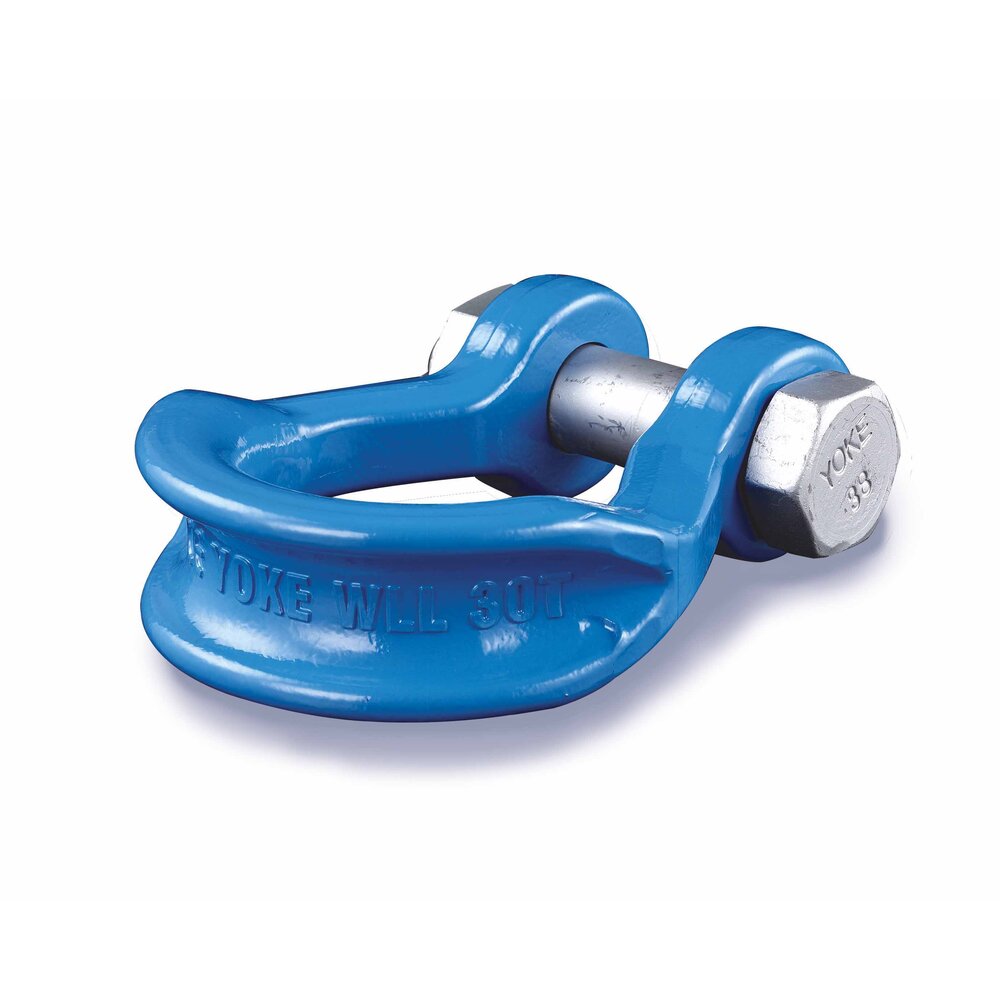

Forged alloy wide body shackle with bolt pin.
All shackles with batch Code which links to Test Certificate and quality traceability.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
100% magnaflux crack detection during manufacturing.
- Material: Shackles are forged alloy steel with alloy pin.
- Marking: Size, WLL, CE, manufacturer ID, traceability.
- Temperature range: -40°C up to +200°C (without reduction in WLL).
- Finish: Blue painted.
- Safety factor: 5:1
- Grade: 10

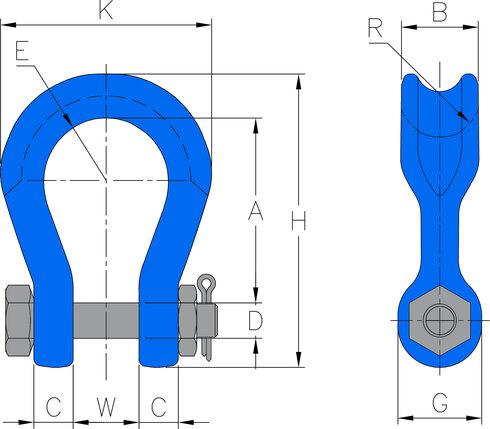

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
