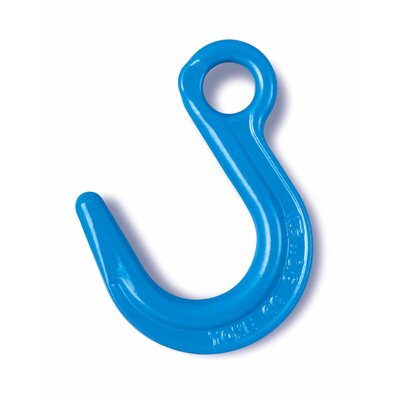

Eye Foundry Hook X-047

  • At least 25% greater WLL than traditional Grade 8 products.
  • Testing according to DIN PAS 1061 and ASTM A952/A 952M.
  • Proof load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Designed for the assembly of chain slings where wide throat openings are necessary

When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, Size, grade, manufacturer ID, traceability.
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Standard: EN 1677-1
  • Warning: Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.
  • Safety factor: 4:1
  • Grade: 10
