At least 25% greater WLL than traditional Grade 8 products.
Rotate when loaded.
Proof load tested: at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.

Material: Quenched and Tempered Alloy Steel.
Marking: According to standard
Temperature range: Tempering temperature minimum 400°C .
Finish: Blue painted.
Standard: EN 1677-3

Safety factor: 4:1
Grade: 10

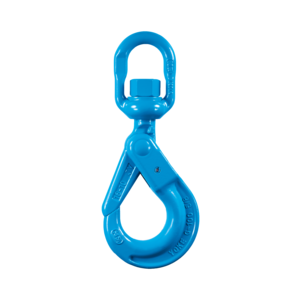

Swivel Self Locking Hook X-027N

Select a row from the table below, then click the add to quote button

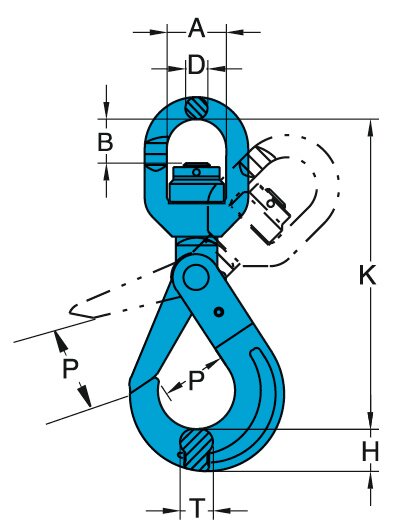

Part Code	WLL ton	For chain gr 10 Ø mm	A mm	B mm	D mm	H mm	K mm	P mm	T mm	Weight kg
11.16X-027N-06	1.4	6	32	22	12	19	149	28	15	0.7
11.16X-027N-07	2.5	7.8	36	29	13	24	186	34	20	1.2
11.16X-027N-10	4	10	41	34	16	30	218	44	26	2
11.16X-027N-13	6.7	13	46	43	21	39	276	51	30	4.1
11.16X-027N-16	10	16	61	50	23	49	329	60	36	7.2
11.16X-027N-20	16	20	74	82	25	65	387	70	53	13
11.16X-027N-22	19	22	97	95	33	63	457	80	49	20
11.16X-027N-26	26.5	26	123	115	42	69	535	99	56	33
