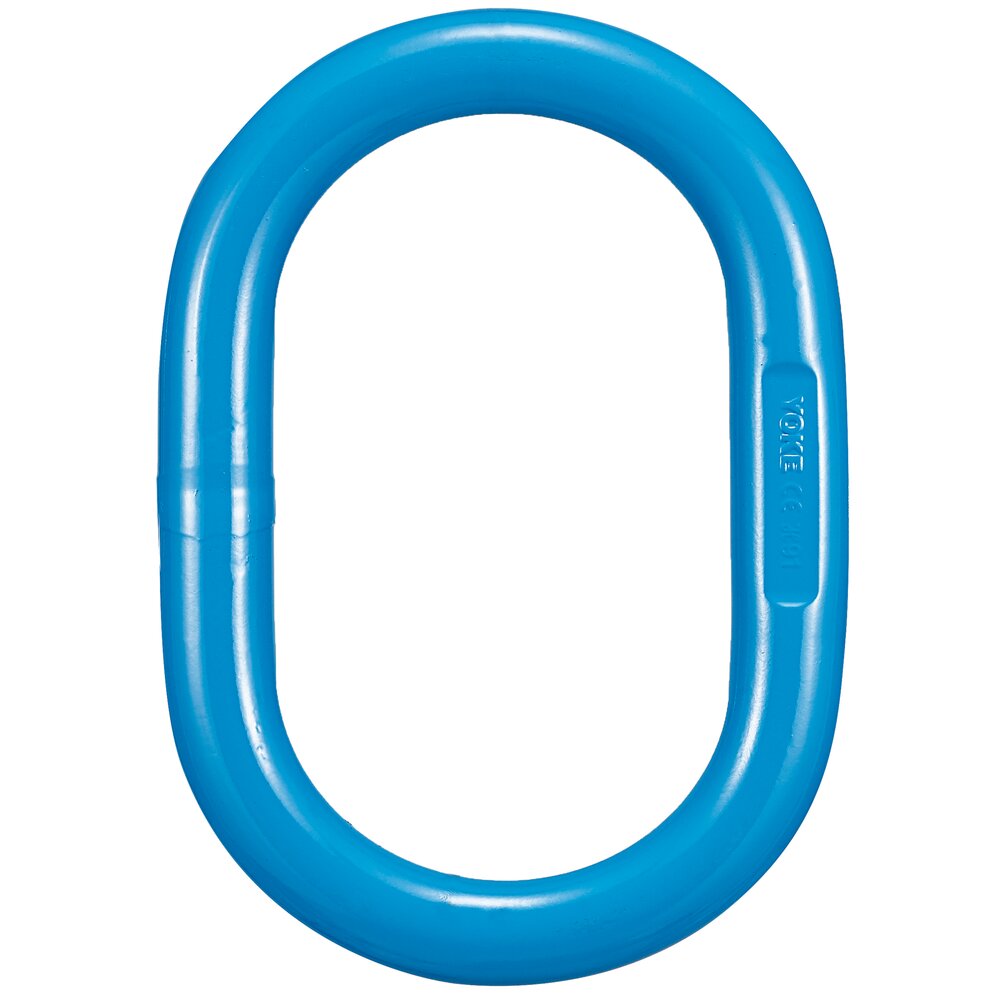

Welded Master Link designed for 1-2 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional Grade 8 products.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

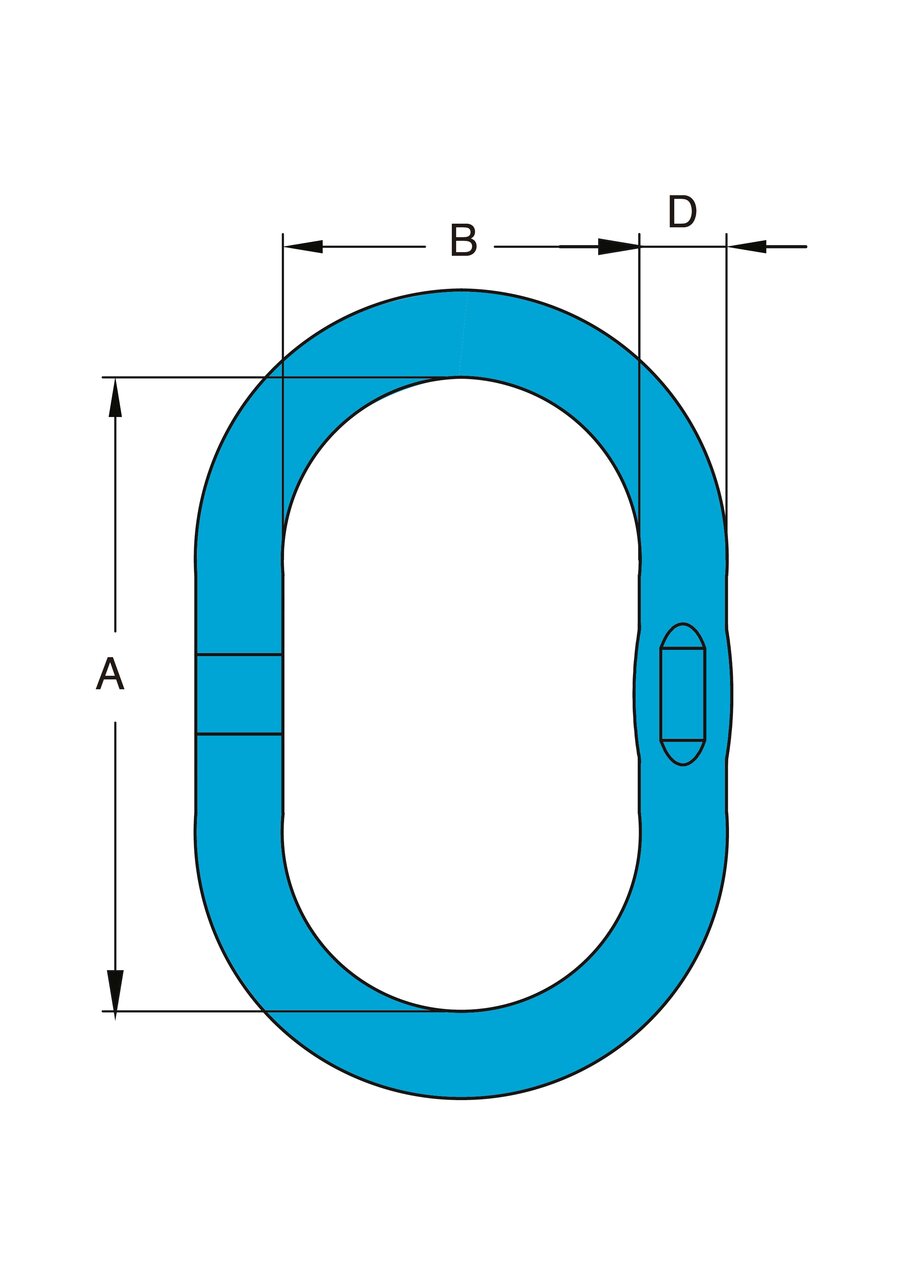

Yoke Welded Master Link single ring measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
For grade 100 Chain Single leg
mm
For grade 100 Chain Double leg
mm
Din 15401.NO D
mm
A
mm
B
mm
Weight
kg
11.02X-002W-13 CD-13 2,8 7,8 6 4 13 120 70 0,4
11.02X-002W-16 CD-16 4 10 7,8 5 16 140 80 0,7
11.02X-002W-19 CD-19 6,7 13 10 6 19 160 95 1,1
11.02X-002W-22 CD-22 8,5 13 10 10 22 170 105 1,6
11.02X-002W-28 CD-28 11,5 16 13 10 28 190 110 2,9
11.02X-002W-32 CD-32 17 20 16 12 32 230 130 4,5
11.02X-002W-36 CD-36 25,1 22 20 20 36 275 150 6,7

WLL ton is 0-45º
