Special wear protection for roundslings and webbing slings, intended for lift of load with cutting edges. Extremely good cutting resistance and high wear strength.
Design: Single- or double sided sheathes.


  • Material: Polyurethane.
  • Temperature range: Approx. -30° up to +70°C, short expose to approx. +90°C.
Stobitex_wear_protection_sleeve_pic2

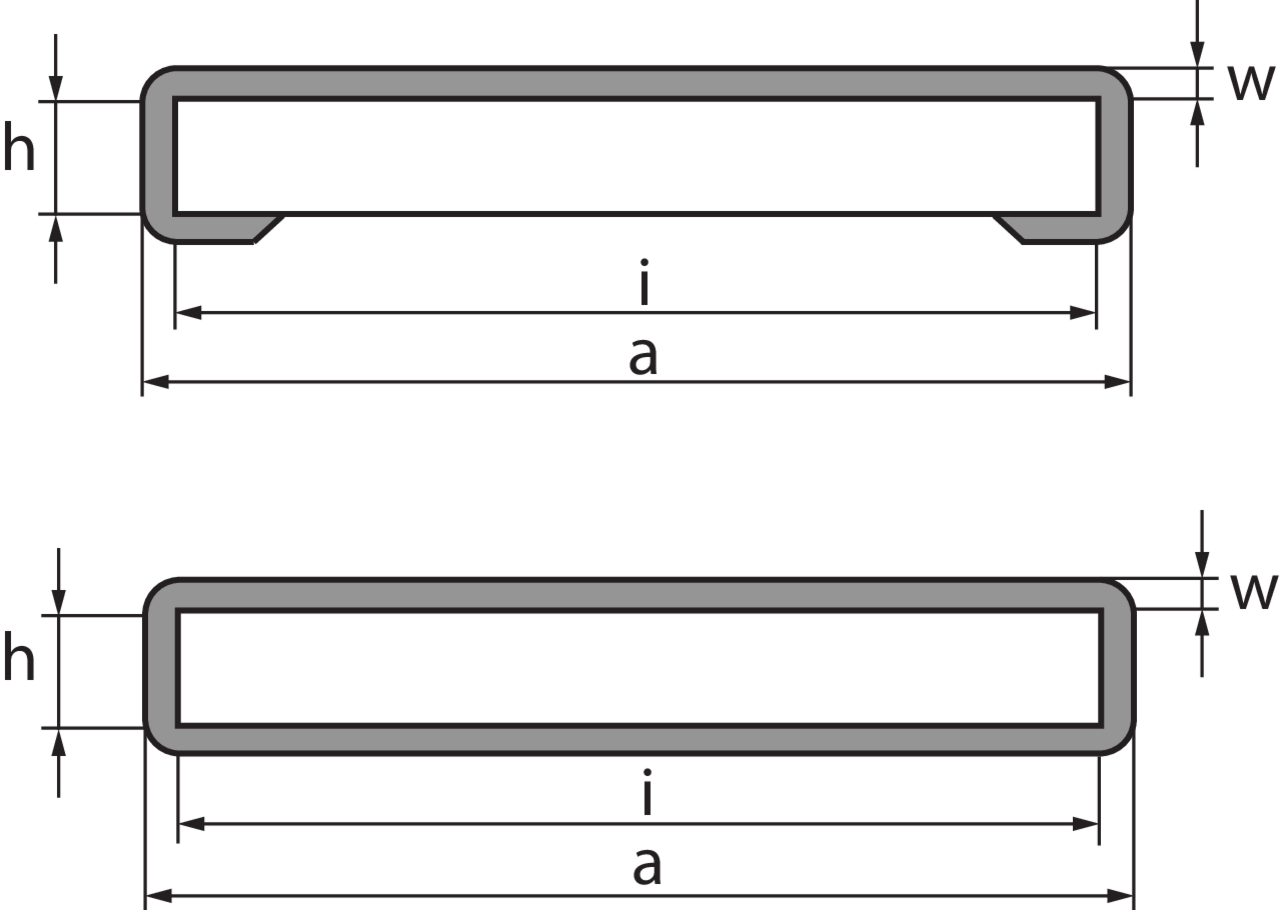

Stobitex_drw
Select a row from the table below, then click the add to quote button
Part Code Size W
mm
For 2 layer lifting
mm
For 4 layer lifting
mm
For roundslings ton A
mm
i
mm
h
mm
Weight
kg/m
CAD
12.4000200020 50 5 30 50 40 10 0.85
12.4000200030 50 5 30 50 40 20 0.9
12.4000200060 70 5 50 70 60 12 1.25
12.4000200061 70 5 50 70 60 17 1.3
12.4000200070 80 5 60 80 70 12 1.3
12.4000200090 80 5 60 80 70 24 1.35
12.4000200095 85 5 1 85 75 12 1.35
12.4000200110 95 5 2 95 58 24 1.5
12.4000200120 110 5 90 110 100 12 1.55
12.4000200130 110 5 3 110 100 174 1.6
12.4000200140 110 5 90 110 100 24 1.6
12.4000200190 145 5 120 145 135 12 2
12.4000200200 145 5 120 145 135 24 2.1
12.4000200240 170 5 150 170 160 12 2.3
12.4000200250 170 5 6 170 160 17 2.4
12.4000200260 170 5 150 170 160 24 2.4
12.4000200280 200 5 180 200 190 12 2.6
12.4000200290 200 5 8 200 190 17 2.65
12.4000200300 200 5 180 200 190 24 2.7
12.4000200320 230 5 10 230 220 36 3.5
12.4000200340 260 8 240 260 250 15 3.9
12.4000200360 290 8 15 290 280 30 4.4
12.4000200370 330 8 300 330 320 15 4.4
12.4000200380 330 8 300 330 320 30 4.8
12.4000200390 330 8 20 330 320 45 5.3
