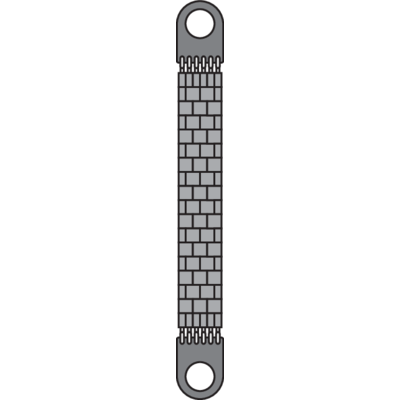

Design: A number of galvanized steel wire ropes are ”weaved” together with the help of PVC-blocks to desired width and WLL. As a standard there is a soft eye or a shackle clamp in each end. Other endfittings, widths and working load limits on request.

Rope construction: 6 mm 6x19M-FC, 8-20 mm 6x36WS-FC 1960 N/mm²

Soft eye

Shackle clamp

Roller clamp

Shackle-/roller clamp

Select a row from the table below, then click the add to quote button

Part Code	WLL ton	Width mm	Number x rope Ø pcs x mm	Working load limit (WLL) in tons Basket lift
M-16	0.4	20	1x6	0,8
M-18	0.75	23	1x8	1,5
M-26	0.8	40	2x6	1,6
M-28	1.5	46	2x8	3
M-46	1.6	80	4x6	3,2
M-112	1.7	27	1x12	3,4
M-116	3	34	1x16	6
M-48	3	92	4x8	6
M-86	3.2	160	8x6	6,4
M-212	3.4	54	2x12	6,8
M-106	4	200	10x6	8
M-120	4.7	42	1x20	9,4
M-88	6	184	8x8	12
M-216	6	68	2x16	12
M-412	6.8	108	4x12	13,6
M-108	7.5	230	10x8	15
M-220	9.4	84	2x20	18,8
M-416	12	136	4x16	24
M-812	13.6	216	8x12	27,2
M-1012	17	270	10x12	34
M-420	18.8	172	4x20	37,6
M-816	24	272	8x16	48
M-1016	30	340	10x16	60
M-820	37.6	344	8x20	75,2
M-1020	47	430	10x20	94

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
