Home / Products / Steel wire ropes & accessories / Steel wire rope / General ropes / Steel Wire Rope 8x17-IWRC

ISO 4309 Rope Category No: All Diameters RCN.05

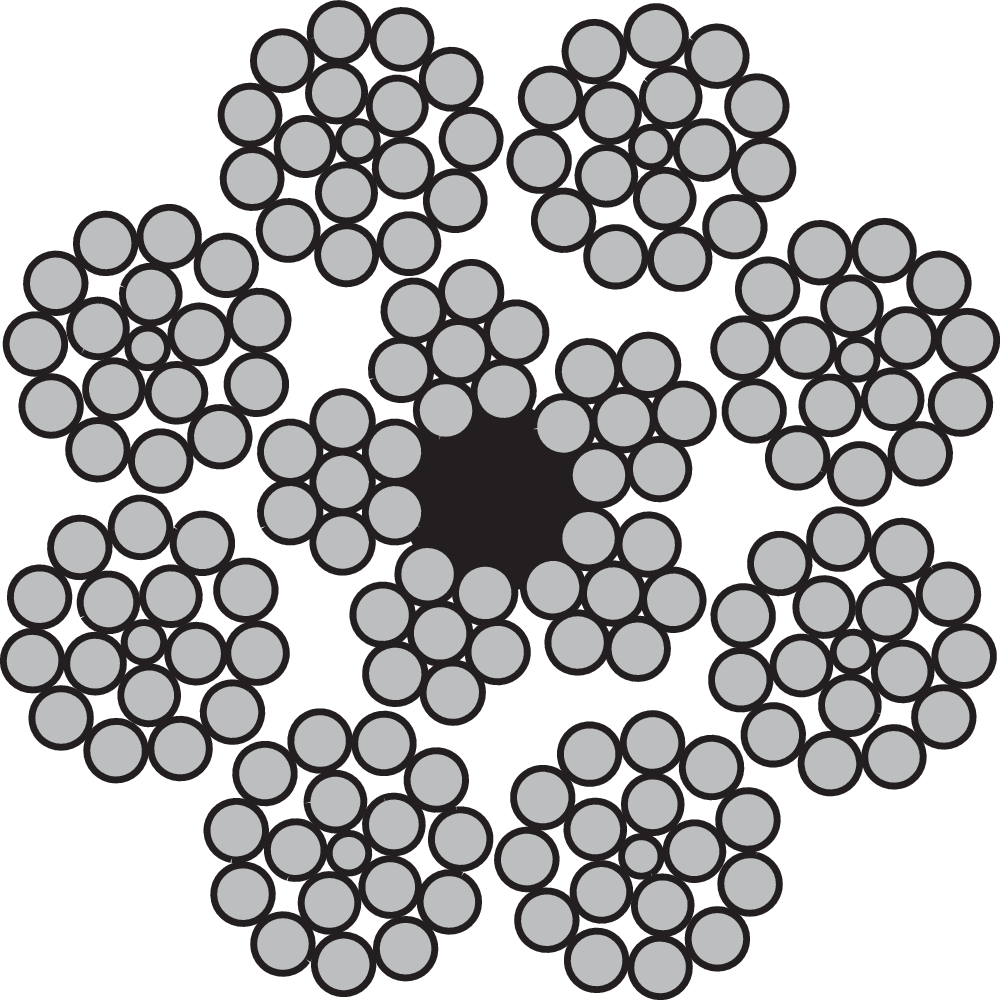

Rope construction: 8x17-IWRC.
Marking: According to standard
Standard: EN 12385-4

Fill factor: 0.53

Winch rope
Overhead cranes

Select a row from the table below, then click the add to quote button

	Part Code	Rope diameter mm	Steel Area mm²	Min. breaking force kN 1960 N/mm²	Min. breaking force kN 1770 N/mm²	Weight kg/100m
	01.G10171080G	8	26,6	39,1		24
	01.G10171100E	10	41,6	61,1	55,2	37
