General: Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results.

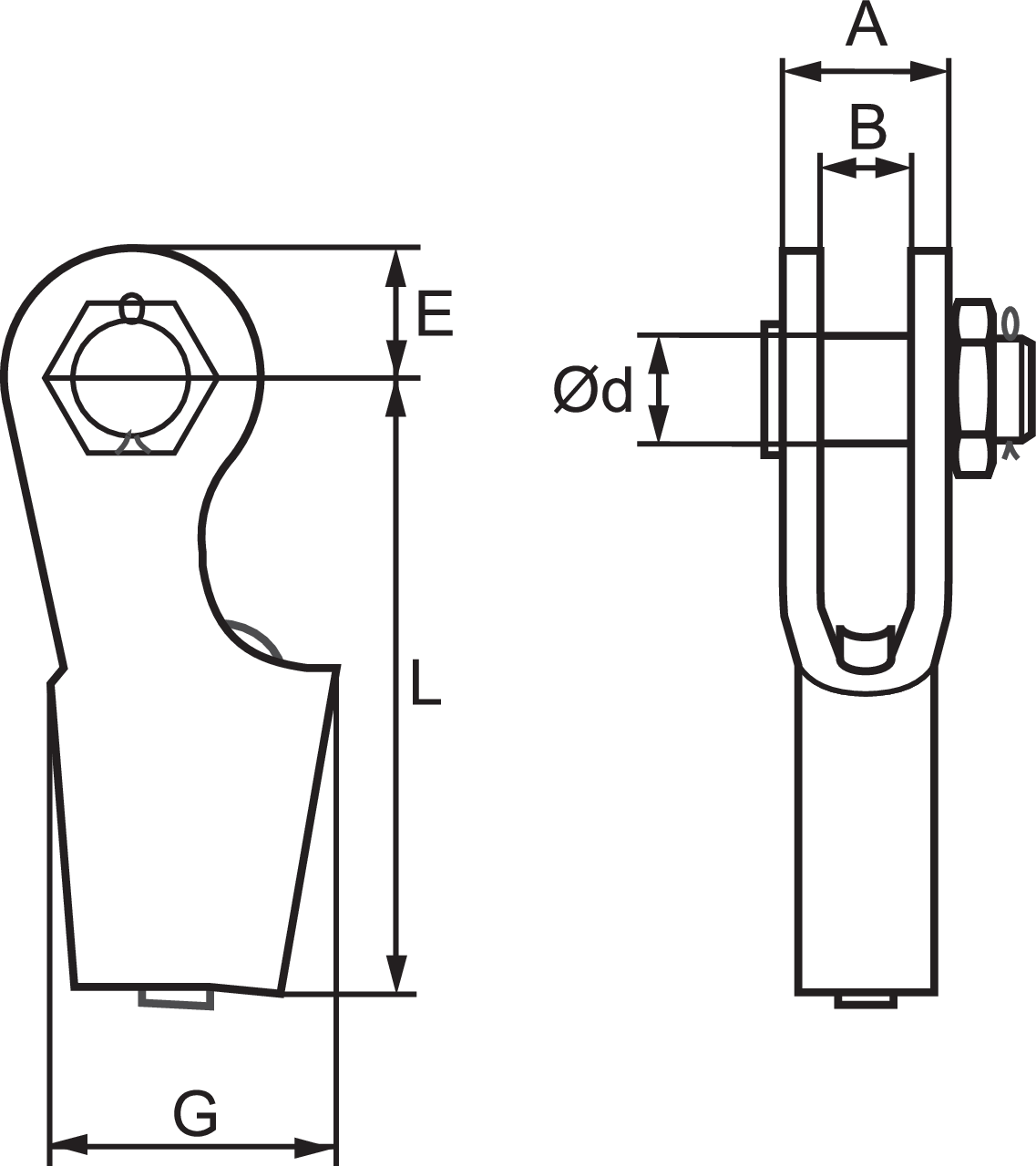

Design: Bended and welded house made of plate. Wedge made of plate with milled grove and symmetrical shaped to avoid error assemblies. Turned bolt with head, low nut and split cotter. The wedge sockets is delivered complete. Note that some wedge houses fit to different sizes of wedges.
Marking house and wedge: Dimension area.
Proof: Batch proof 2 x WLL.
- Material: House, wedge and bolt by high-tensile construction steel.
- Finish: Electro-zink plated
- Note: To elevators and mines we recommend other designs.
- Safety factor: 5:1
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
