General: Open grip for prestressed strand. The grips are for multiple use.

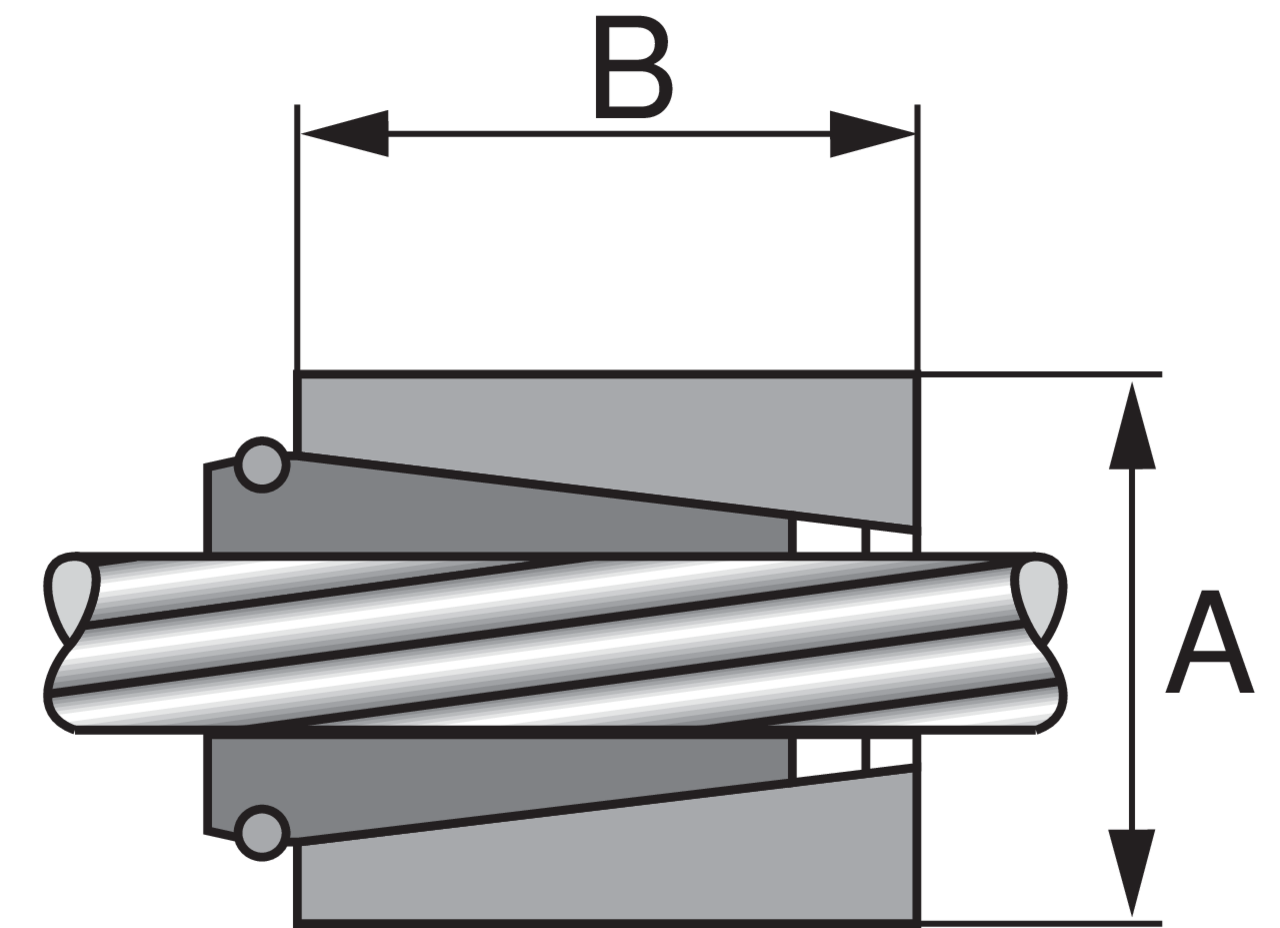

Design: It comprises a barrel and a wedge in three segments. The wedge segments are held together with an 'O' ring.

603006_s_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
A
mm
B
mm
CAD
10.65604002 604002* 9.6 35 36
10.65604004 604004* 13 44 47
10.65604071 604071* 15 50 57
10.65604006 604006* 18 60 72

* Contains barrel and wedge
