Skylotec

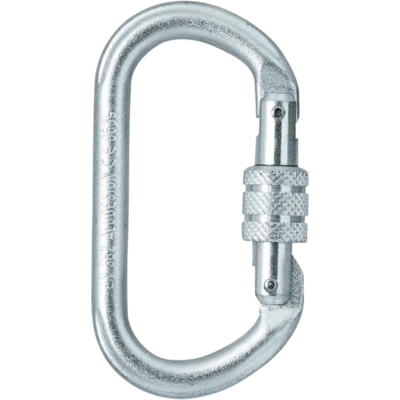

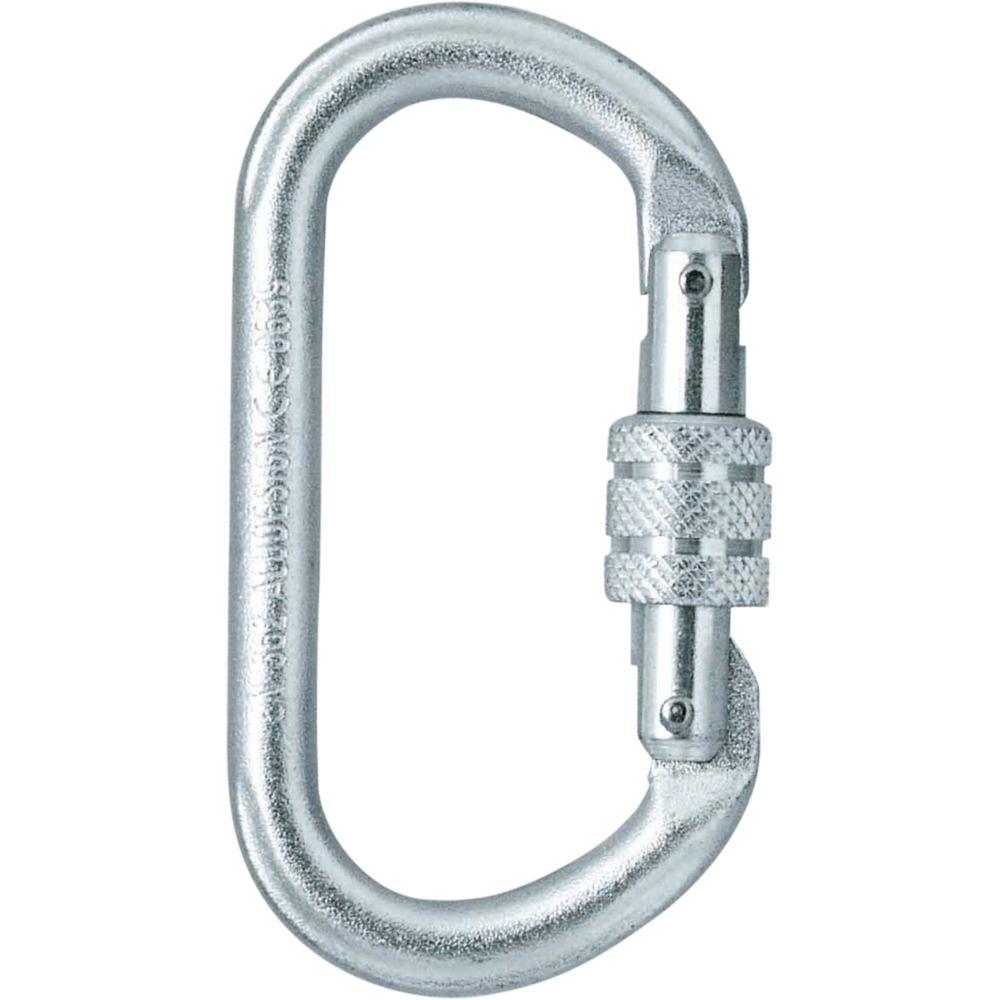

Oval steel carabiner (screw).
This carabiner is ideal for use as a lower-off, for extreme wear and when aluminium is not good enough.

  • Material: Steel.
  • Marking: According to standard, CE-marked, Supplier symbol, art no, standards, max. load.
  • Standard: EN 362-B
h-037
Select a row from the table below, then click the add to quote button
Part Code Min. breaking force
kN
Size Breaking load, minor axis
kN
Breaking load open
kN
Max Opening
mm
Weight
kg
CAD
19.09H-037 25 109 x 57mm 9 8 17 0.16

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
