General: Fall protection for HDF precast concrete. Temporary anchoring point for personal fall protection - for one person. To be used when assembling HDF precast concrete, placed between two concrete elements.
Material:

Standard: SS-EN 795 and SS-EN 795/A1

  • Marking: According to standard, ID, code and class.
  • Standard: EN 795
New Picture
Select a row from the table below, then click the add to quote button

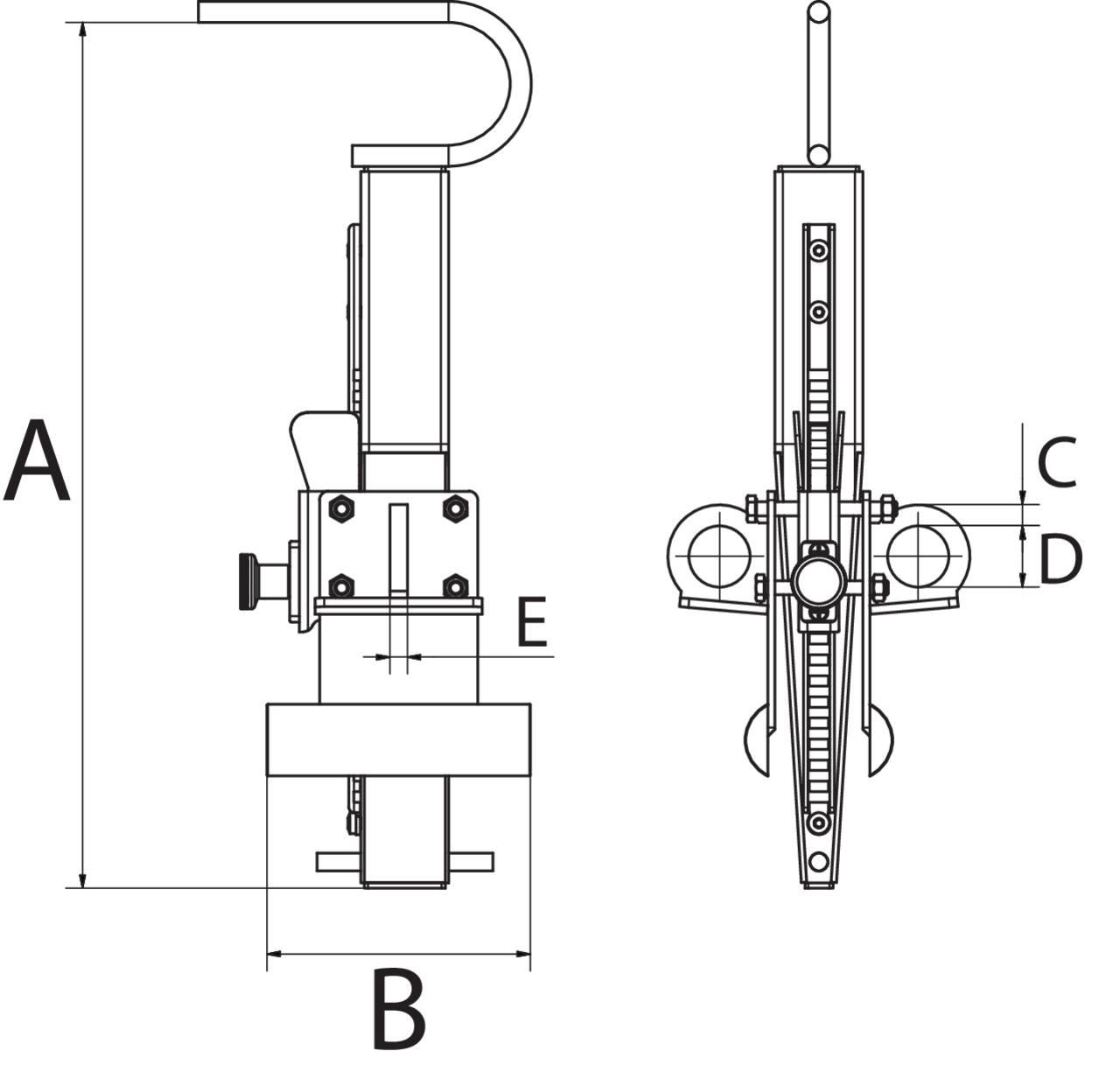

Part Code A
mm
B
mm
C
mm
D
mm
E
mm
CAD
19.192259352 493 150 35 12 10

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
