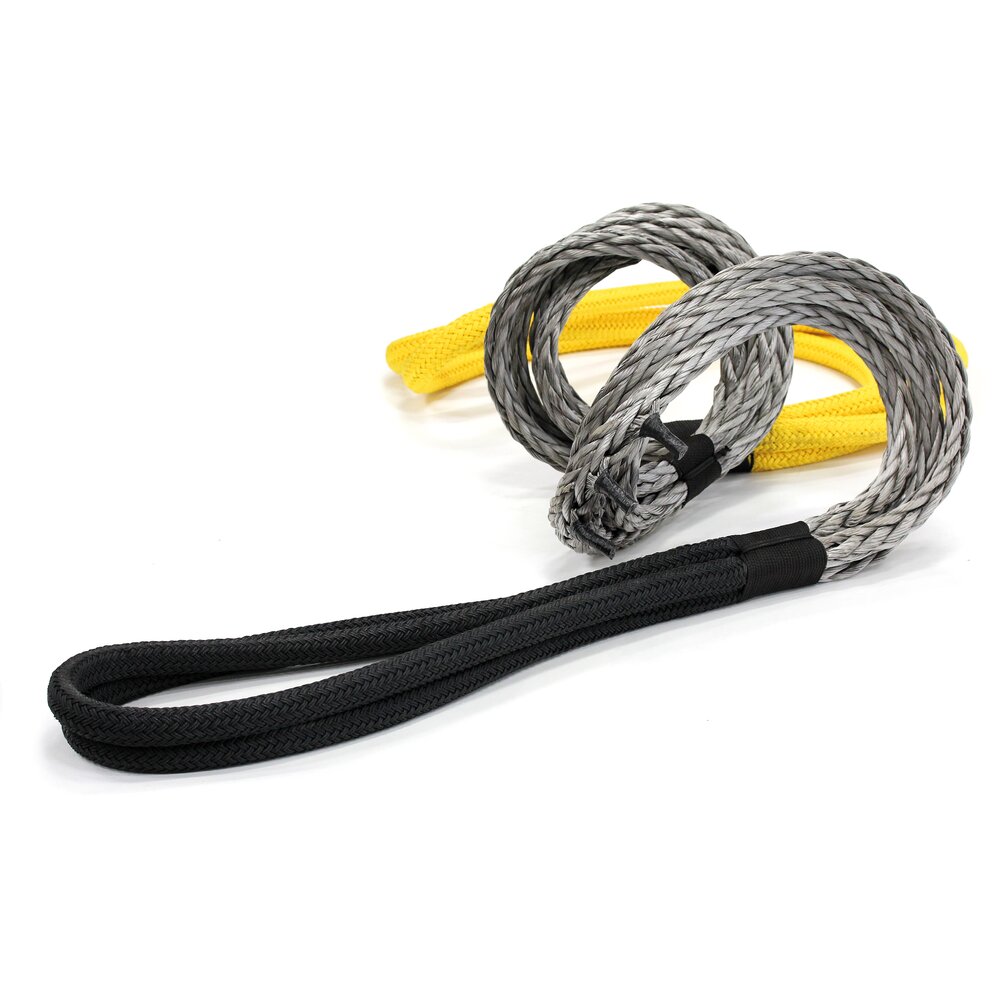

General: Textile lifting slings GeoLift can easily deal with loads up to hundreds of tons on the hook, and are made to measure and meet standards of precision. But they are still light weight and easy to handle. GeoLift are heavy load lifting slings that are based on the textile rope DynaOne® made with Dyneema®, and are comprehensively certified for safety and set international standards. Manufactured according to customer specification in order to perfectly fit the desired application.
Elongation at WLL: Maximum 1,8%
Lenght tolerance: Production tolerance of length +/– half rope diameter
- Material: DynaOne® made with Dyneema® SK78
- Marking: According to standard, Equipped with label with information according to standard. Yellow coloured sleeves to define lifting point towards crane hook. Black sleeves towards load.
- Temperature range: -40 to 70°C
- Standard: EN 1492-4
- Safety factor: 7:1
Up to 100t
|
Art No
|
Code
|
Type
|
Rope Ø
|
Min. length
|
Weight at min. length
|
WLL
|
BL
|
|
|
|
|
mm
|
m
|
kg
|
t
|
t
|
|
|
LS 10t
|

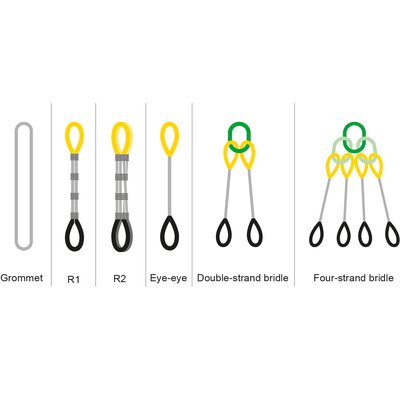

R1
|
24
|
2,3
|
2,5
|
10
|
70
|
|
|
LS 15t
|
R1
|
28
|
2,3
|
3,5
|
15
|
105
|
|
|
LS 30t
|
R2
|
28
|
2,5
|
9,5
|
30
|
210
|
|
|
LS 50t
|
R2
|
40
|
2,8
|
13,5
|
50
|
350
|
|
|
LS 70t
|
R2
|
48
|
3,0
|
21,0
|
70
|
490
|
|
|
LS 90t
|
R2
|
56
|
5,0
|
44,0
|
90
|
630
|
|
|
LS 100
|
R2
|
64
|
5,0
|
59,0
|
100 |
700
|
Higher than 100t
|
Art No
|
Code
|
Type
|
Rope Ø
|
Min. length
|
Weight at min. length
|
SWL
|
SWL
|
BL
|
|
|
|
|
mm
|
m
|
kg
|
SF7
|
SF5
|
t
|
|
|
HD 125t
|
R2
|
80
|
8,2
|
121
|
125
|
175
|
926
|
|
|
HD 150t
|
R2
|
88
|
9,0
|
161
|
150
|
220
|
1100
|
|
|
HD 175t
|
R1
|
116
|
11,5
|
250
|
175
|
245
|
1225
|
|
|
HD 200t
|
R1
|
124
|
12,2
|
303
|
200
|
280
|
1400
|
|
|
HD 225t
|
R1
|
132
|
12,9
|
364
|
225
|
315
|
1575
|
|
|
HD 300t
|
R2
|
120
|
11,8
|
458
|
300
|
420
|
2100
|
|
|
HD 325t
|
R2
|
128
|
12,6
|
556
|
325
|
455
|
2275
|
|
|
HD 350t
|
R2
|
132
|
12,9
|
606
|
350
|
490
|
2450
|
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
