Insulated blank swivel for various lifting applications. Design for protection of overhead crane during welding operations on suspended loads. Individually tested to resist 1000 Volts insulated with Test Certificate.

RFID equipped (chip) for easy service and inspection

For connection with suspension parts you will need Coupling Pin and C-Sleeve Set X-P015, please order them separately.

Order suspension parts Coupling Master Link 8-051.

2 pcs. half coupling links can be ordered as 1 pc. X-015 + 1 pc. X-P015.
Other suspension parts on request.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8
RFID equipped
Select a row from the table below, then click the add to quote button

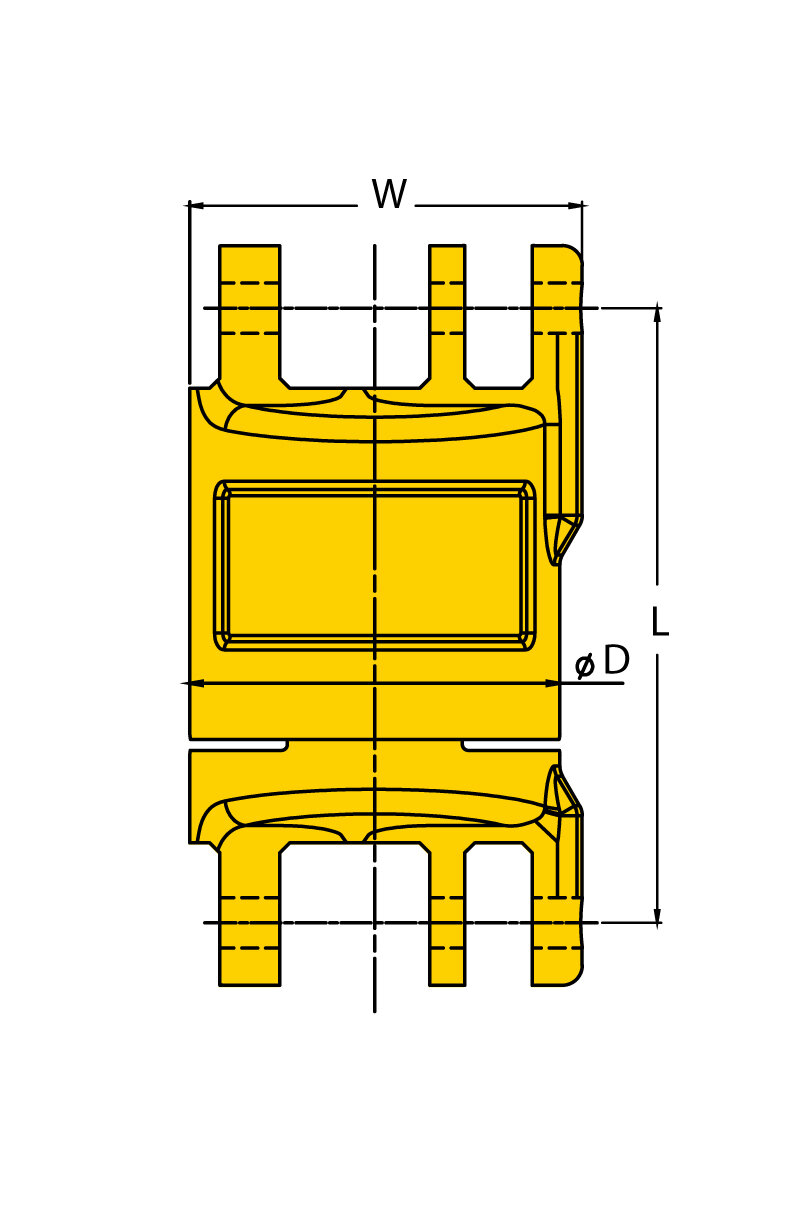

Part Code WLL
ton
For chain gr 8 Ø
mm
D
mm
L
mm
Weight
kg
CAD
11.468-088N-07 2 7, 8 50 75 0.6
11.468-088N-10 3.15 10 62 94 1.2
11.468-088N-13 5.3 13 77 123 2.4
11.468-088N-16 8 16 94 143 4.2
11.468-088N-20 12.5 18, 20 109 164 6.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
