Kito

General: The KITO CB Series chain hoists have a shock resistant gear casing, double ratcheted spring, precision gears and double casing (to protect against dust and water), mechanical breaks, load chain guide and long-life chain. Reliable, durable and easy to use. Capacity from 500 kg to 50 t (special design up to 100 t).

Options:

  • Plain trolley
  • Geared trolley
  • Canvas chain bucket
  • Overload limiter
  • Material: Nickel plated load chain, grade 10.
  • Marking: Type plate with WLL, CE-marking and serial number.
  • Finish: Painted.
  • Safety factor: 4:1.
Kito CB
E x available
Select a row from the table below, then click the add to quote button

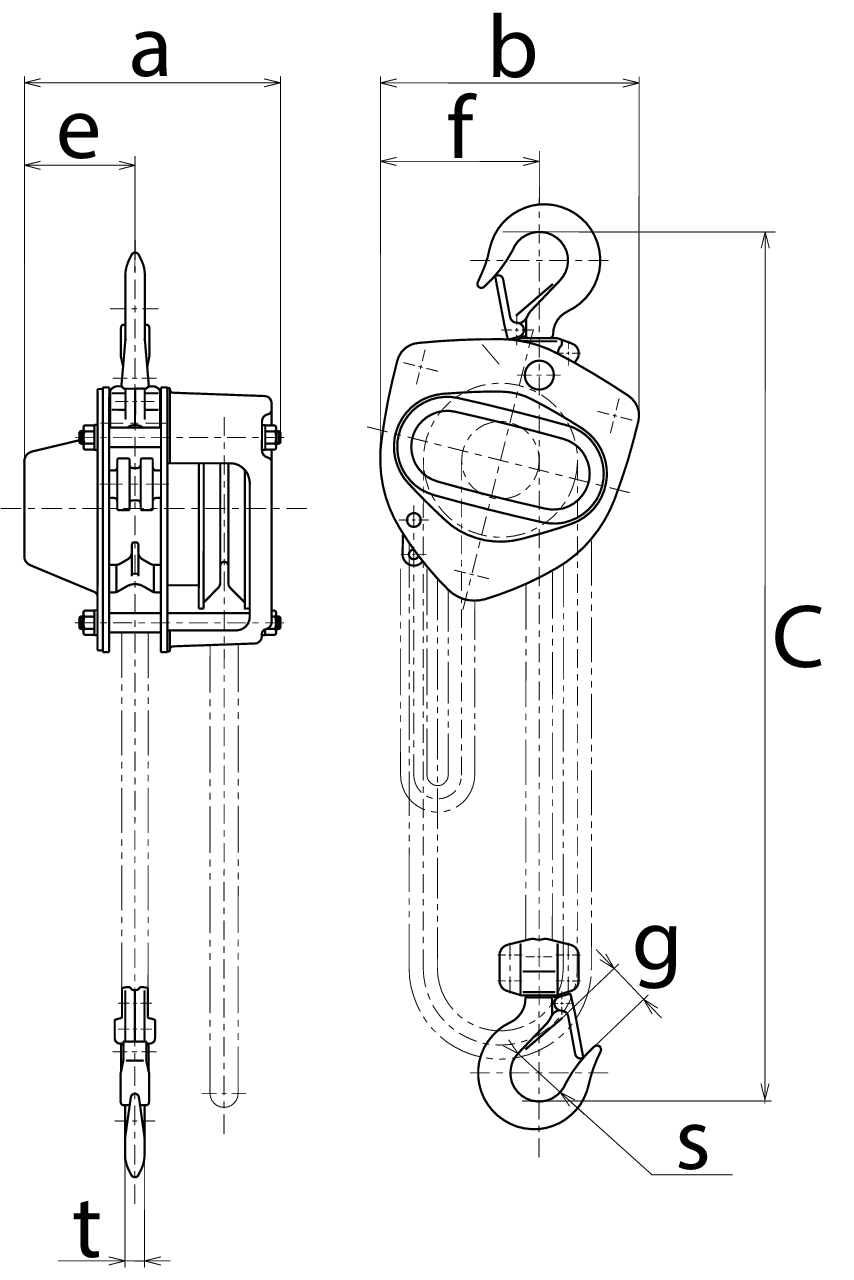

Part Code Code WLL
ton
s (mm) Load chain Ø (mm) Chain falls Std. lifting height m Chain pull to lift full load in daN A
mm
B
mm
C
mm
e (mm) f (mm) g (mm) t
mm
Weight
kg
CAD
16.10CB005SSH030030 CB005 0.5 35,5 5,0 x 15,1 1 3 23,5 158 161 285 69 99 27 12,1 10
16.10CB010SSH030030 CB010 1 42,5 6,3 x 19,1 1 3 28,4 162 161 295 71 99 29 16,0 11.5
16.10CB015SSH030030 CB015 1.5 47,5 7,1 x 21,2 1 3 34,3 171 182 350 78 112 34 19,5 14.5
16.10CB020SSH030030 CB020 2 50,0 8,0 x 24,2 1 3 35,3 182 202 375 87 125 36 21,8 20
16.10CB025SSH030030 CB025 2.5 53,0 9,0 x 27,2 1 3 32,3 192 233 420 91 143 40 24,3 27
16.10CB030SSH030030 CB030 3 56,0 7,1 x 21,2 2 3 35,3 171 235 510 78 162 42,5 27,2 24
16.10CB050SSH030035 CB050 5 63,0 9,0 x 27,2 2 3 33,3 192 282 600 91 194 46,5 34,5 41
16.10CB075SSH035040 CB075 7.5 85,0 9,0 x 27,2 3 3,5 34,3 192 373 770 91 253 72,5 47,5 63
16.10CB100SSH035050 CB100 10 85,0 9,0 x 27,2 4 3,5 35,3 192 438 760 111 308 72,5 47,5 83
16.10CB150SSH035045 CB150 15 100 9,0 x 27,2 6 3,5 36,3 268 492 1,020 119 337 80,0 60,0 155
16.10CB200SSH035045 CB200 20 110 9,0 x 27,2 8 3,5 35,3 x 2 374 746 1,180 187 373 81,0 67,0 235
16.10CB300SSH035045 CB300 30 125 9,0 x 27,2 10 3,5 42,1 x 2 404 746 1,300 202 373 103 85,0 310
16.10CB400SSH035045 CB400 40 140 9,0 x 27,2 14 3,5 42,1 x 2 502 760 1,480 251 380 104 95,0 480
16.10CB500SSH035045 CB500 50 155 9,0 x 27,2 16 3,5 48,0 x 2 544 796 1,560 272 398 112 106,0 640
