General: Designed to lift cable drums vertically through centre hole. For coil drums according to SS 84 28 01 standard, though can be used with other drums.

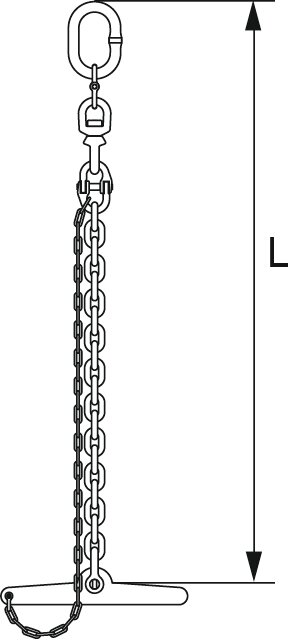

Design: Chain with lift fittings, swivel, master link and operating chain.

  • Marking: WLL and CE marking.
  • Finish: Painted.
Select a row from the table below, then click the add to quote button
Part Code Code WLL
Drum hole Ø (mm) L
16.837601 7601 1.2 75 670 2.3
16.837602 7602 2.5 106 860 5.3
16.837603 7603 4 132 980 9.6
Other dimensions and design available on request.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
