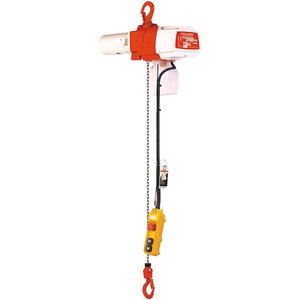

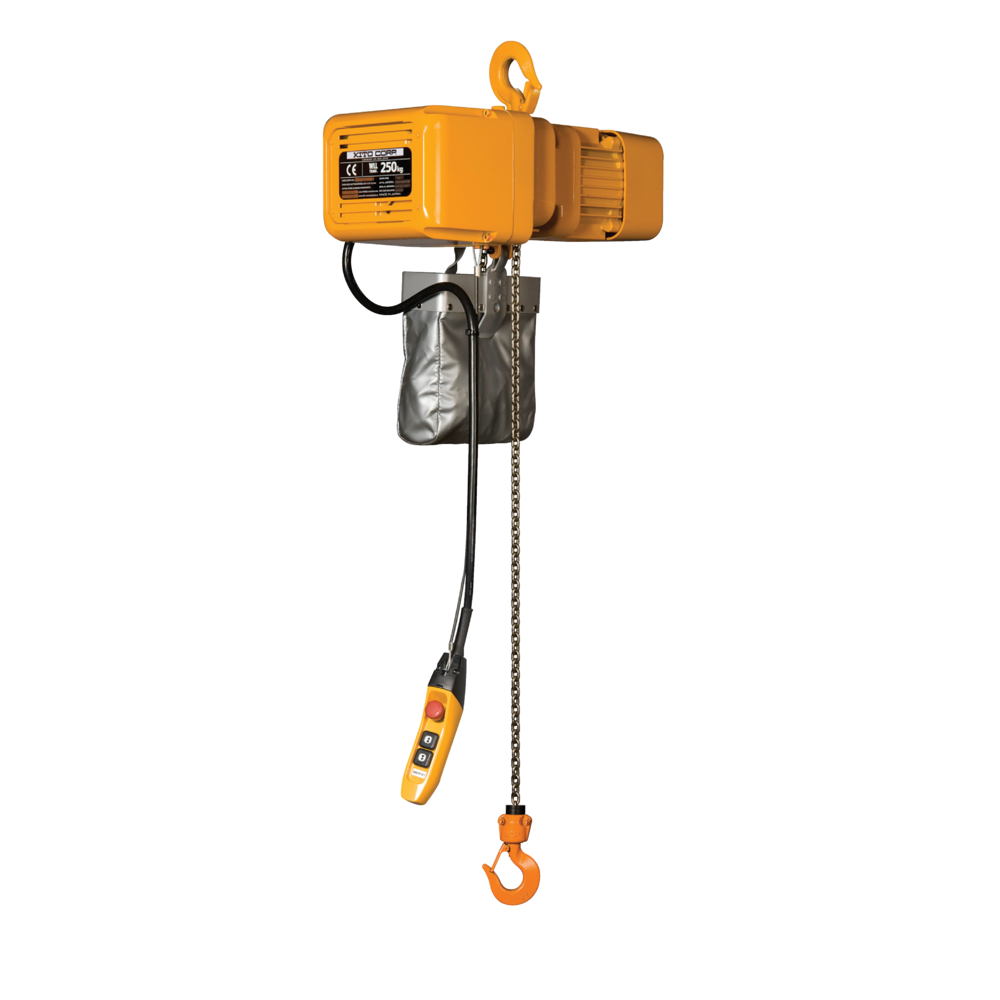

KITO ER2 Dual Speed Series

Electric chain hoist with hook suspension

General: The KITO ER2 Electric Chain Hoists are durable, safe and easy to use hoists. It has a top hook or overhead mounting suspension, aluminium die-cast body, electromagnetic brake and a canvas chain container.
It lifts from 125 kg up to 5 tons.

Standard configuration:

400 V/50 Hz
Frequency inverter for 2 lifting speeds
CH-Meter: operating hours/number of starts
Ergonomic push button control
Upper-lower limit switch
Nickel-plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
Thermal protector
Carbon friction clutch

Options:

500 V/Contactor control
230 V/50 Hz/60 Hz, 3 phase
Rubber bumpers for motorized trolleys
Additional mechanical brake
Electrical overload limiter
Acoustic overload signal
Radio remote control
Variable speed control
Level limit switch
Steel chain container
Trolley versions: motorized, geared and plain

Note: Can also be delivered with infinitely variable speed control, programmable level limits and cylinder control.

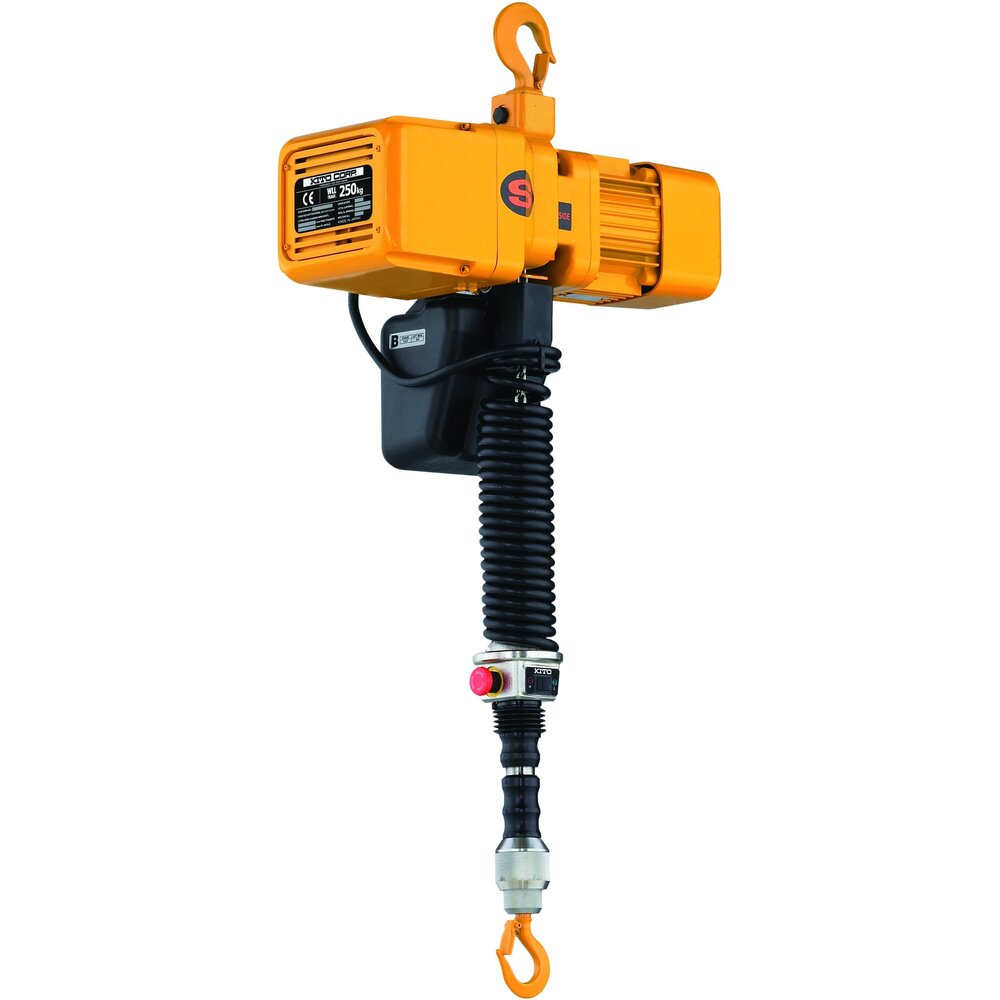

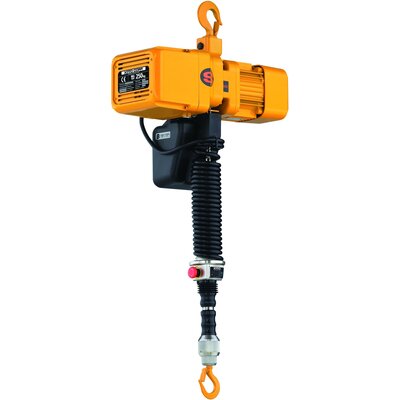

ER2 cylinder control

WLL ton	Product code	Load chain Ø mm	Chain falls	Lifting motor Output (kW)	Lifting motor Rating (%ED)	Class ISO/FEM	Additional weight per 1 m lift	Lifting speed* 50Hz high m/min	Lifting speed* 50Hz low m/min	Test load kg	Weight kg
0,125	ER2-001IH	4,3 x 12	1	0,56	40/20	M6/3m	0,42	16,6	2,81,4	156	27
0,25	ER2-003IS	4,3 x 12	1	0,56	40/20	M6/3m	0,42	10,8	1,80,9	313	27
0,25	ER2-003IH	6,0 x 16,8	1	0,9	40/20	M6/3m	0,81	15,7	2,61,3	313	36
0,5	ER2-005IL	6,0 x 16,8	1	0,56	40/20	M6/3m	0,81	4,5	0,80,4	625	32
0,5	ER2-005IS	6,0 x 16,8	1	0,9	40/20	M6/3m	0,81	8,5	1,40,7	625	36
1	ER2-010IL	7,7 x 21,5	1	0,9	40/20	M5/2m	1,33	4,2	0,70,3	1 250	45
1	ER2-010IS	7,7 x 21,5	1	1,8	40/20	M5/2m	1,33	8,2	1,40,7	1 250	52
1,6	ER2-016IS	10,2 x 28,5	1	1,8	40/20	M5/2m	2,3	5,3	0,90,4	2 000	72
2	ER2-020IL	10,2 x 28,5	1	1,8	40/20	M4/1Am	2,3	4,3	0,70,4	2 500	73
2	ER2-020IS	10,2 x 28,5	1	3,5	40/20	M4/1Am	2,3	8,2	1,40,7	2 500	89
2,5	ER2-025IS	11,2 x 31,3	1	3,5	40/20	M4/1Am	2,8	6,6	1,10,6	3 130	100
3,2	ER2-032IS	10,2 x 28,5	2	3,5	40/20	M4/1Am	4,7	5,2	0,90,4	4 000	105
5	ER2-050IS	11,2 x 31,3	2	3,5	40/20	M4/1Am	5,6	3,3	0,60,3	6 250	128

Dimensions

WLL	Product	Min. headroom C	D	a	b	d	e	f	g	h	i
tons	code	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
0,125	ER2-001IH	350	430	535	345	276	259	284	27	99	117
0,250	ER2-003IS	350	430	535	345	276	259	284	27	99	117
0,250	ER2-003IH	370	490	568	348	300	268	283	27	113	106
0,5	ER2-005IL	370	490	571	348	300	271	283	27	113	106
0,5	ER2-005IS	370	490	568	348	300	268	283	27	113	106
1	ER2-010IL	430	550	614	376	316	298	335	31	129	118
1	ER2-010IS	430	550	623	376	316	307	335	31	129	118
1,6	ER2-016IS	510	630	710	427	372	338	384,5	34	160,5	137,5
2	ER2-020IL	575	630	710	427	372	338	384,5	39	160,5	137,5
2	ER2-020IS	590	630	767	427	411	356	384,5	39	160,5	137,5
2,5	ER2-025IS	625	840	800	445	401	399	437,5	39	173,5	142,5
3,2	ER2-032IS	785	920	767	427	411	356	397	44	216	82
5	ER2-050IS	850	920	800	445	401	399	439	47	231,5	84,5
