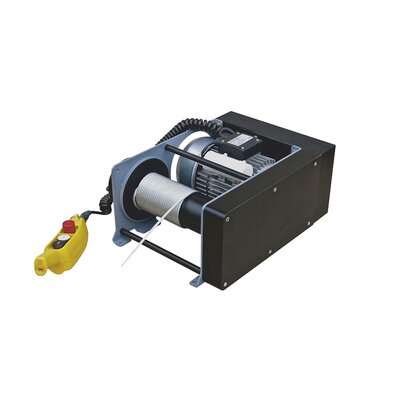

Electrical winch PRIMO

Electric winch for lifting and pulling of loads from 300 up to 2000 kg. A economical range of electric winches designed for simple lifting and pulling operations.

Applications:

  • Leisure boat hauling
  • Lifting goods
  • Handling scenery
  • Pulling concrete formwork on a construction site
  • Lifting

Show more

Product number:

Electric winch for lifting and pulling of loads from 300 up to 2000 kg. A economical range of electric winches designed for simple lifting and pulling operations.

Applications:

  • Leisure boat hauling
  • Lifting goods
  • Handling scenery
  • Pulling concrete formwork on a construction site
  • Lifting hatches
  • Maintenance

Technical properties:

  • FEM 1Cm / 1Bm – Occasional or moderate use, depending on the model.
  • Drum and frame in mechanically welded, shot-blasted and painted steel.
  • Greased reducer with helical gears.
  • Asynchronous motor. Class F. IP 54 protection.
  • Automatic lack of current brake.
  • Single phase power 230V-50Hz or three phase 230/400V-50Hz depending on model.
  • Electronic load limiter (from 1000 kg) and limit switch included.
  • Low voltage control (BT) ensuring user protection against electrical risks.
  • 3 buttons pendant control (Up - Down- Emergency Stop), not removable (3 m long control cable).

Options:

  • Wire rope and hook.
  • Grooved drum.
  • Rope press roller.
  • Tarpaulin cover.
  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +50°C
  • Standard: EN 13157
