General: For lifting and transportation of rails of types UIC60, BV50 and S49. Thanks to its clever design, which takes up minimal space, this clamp can efficiently be used for stacking a number of standing rails at a time. The clamp is locked by turning the knob placed at the flange of the rail.


  • Marking: WLL, manufacturer and CE-marking.
  • Finish: Painted.
  • Safety factor: 5:1

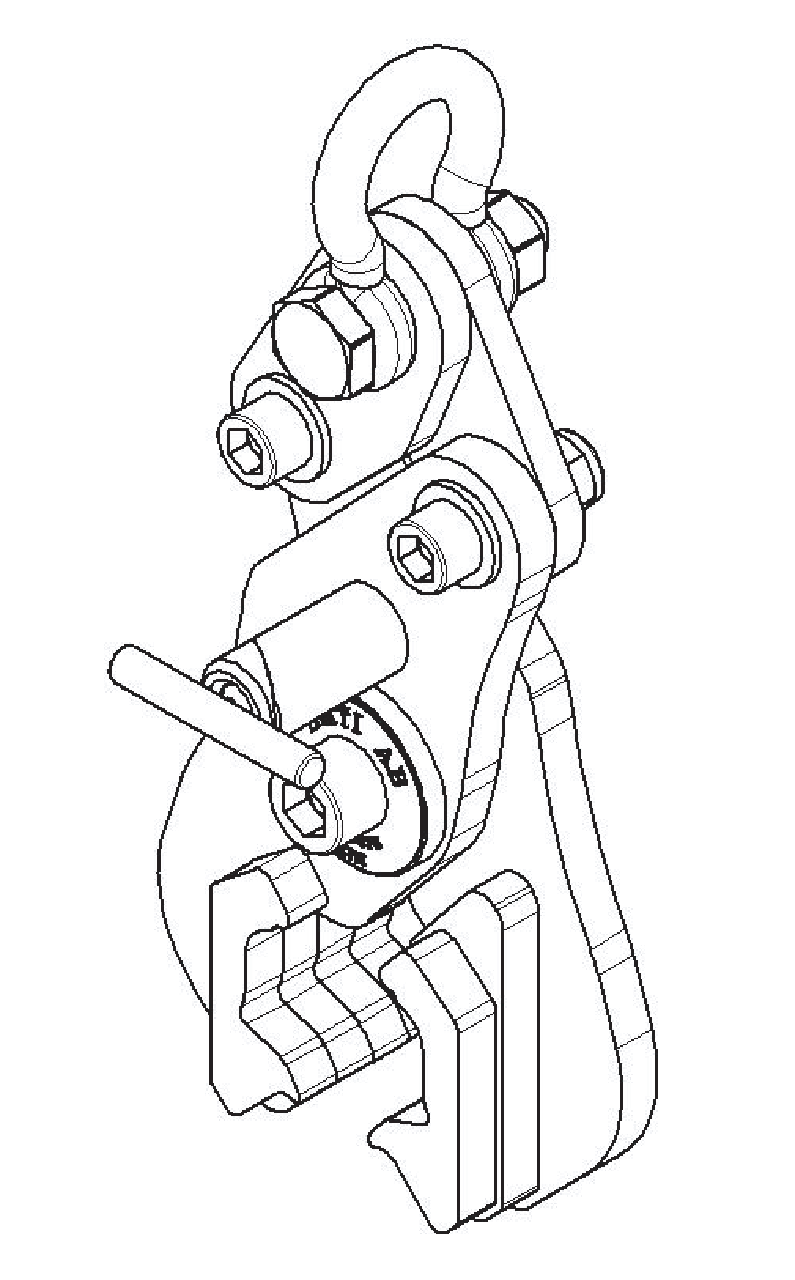

R1_image
Rail_clamp_R1_action

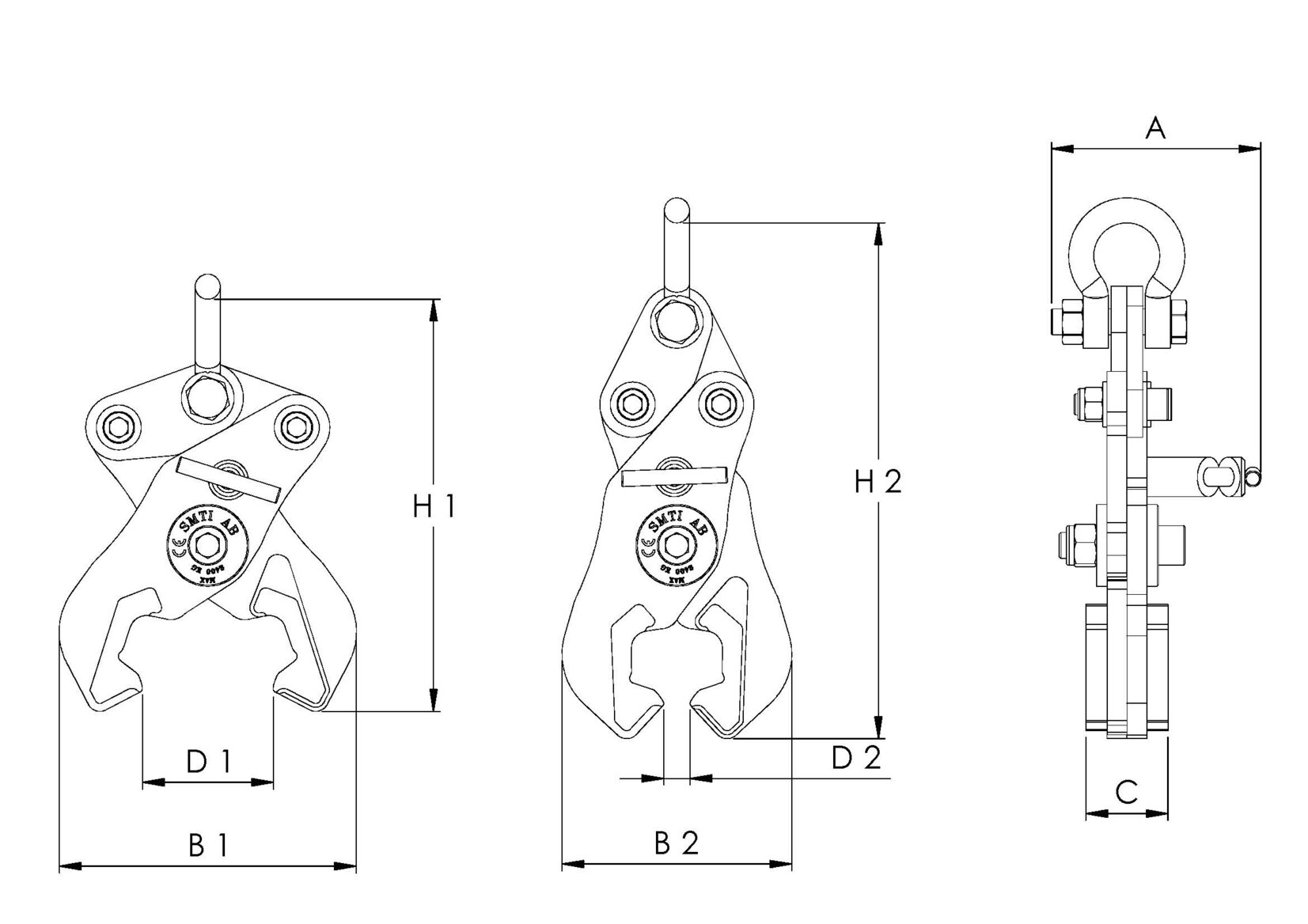

Måttskiss R-Saxar R1 Dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
H1
mm
H2
mm
B1
mm
B2
mm
D1
mm
D2
mm
C
mm
A
mm
Weight
kg
CAD
16.013310262 R1 2.4 315 395 225 175 100 20 62 160 8.8

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
