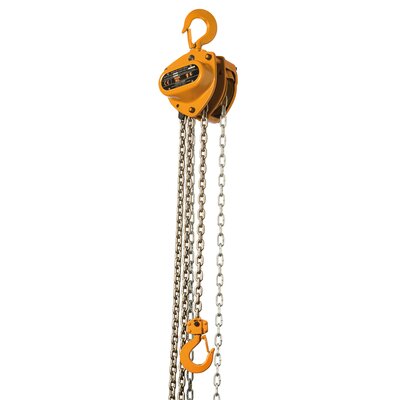

The KITO CB Series chain hoists have a shock resistant gear casing, double ratcheted spring, precision gears and double casing (to protect against dust and water), mechanical breaks, load chain guide and long-life chain. Reliable, durable and easy to use. Capacity from 500 kg to 50 t (special design up to 100 t).

Options:

Plain trolley
Geared trolley
Canvas chain bucket
Overload limiter

Material: Nickel plated load chain, grade 10.
Marking: Type plate with WLL, CE-marking and serial number.
Finish: Painted.

Safety factor: 4:1.

Manual Chain Hoist KITO CB Series

Select a row from the table below, then click the add to quote button

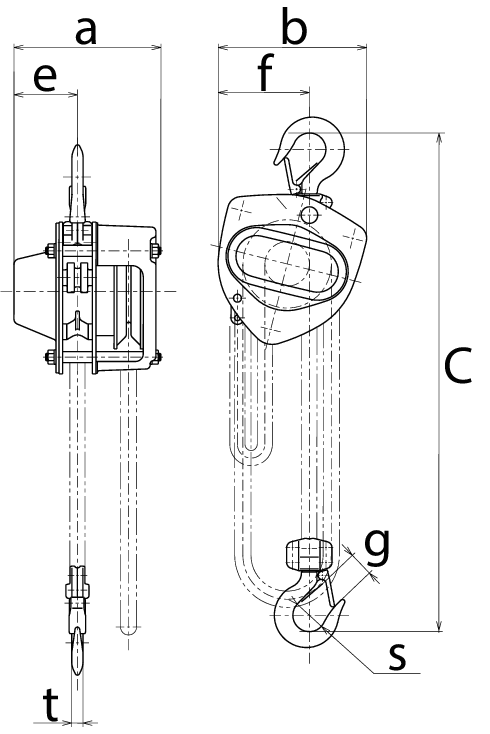

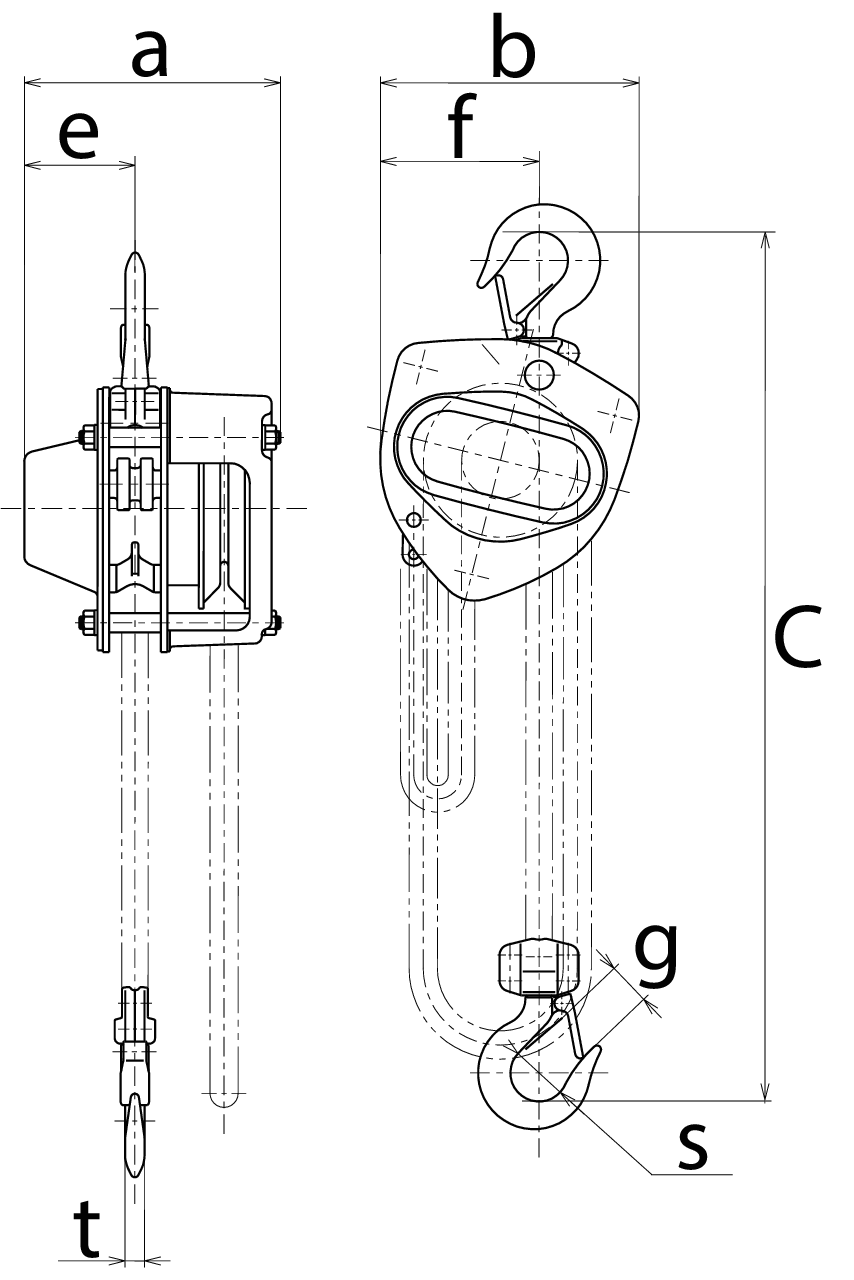

Part Code	Code	WLL ton	s mm	Load chain Ø mm	Chain falls	Std. lifting height m	Chain pull to lift full load in daN	A mm	B mm	C mm	e mm	f mm	g mm	t mm	Weight kg
16.10CB005SSH030030	CB005	0.5	35,5	5,0 x 15,1	1	3	23,5	158	161	285	69	99	27	12,1	10
16.10CB010SSH030030	CB010	1	42,5	6,3 x 19,1	1	3	28,4	162	161	295	71	99	29	16,0	11.5
16.10CB015SSH030030	CB015	1.5	47,5	7,1 x 21,2	1	3	34,3	171	182	350	78	112	34	19,5	14.5
16.10CB020SSH030030	CB020	2	50,0	8,0 x 24,2	1	3	35,3	182	202	375	87	125	36	21,8	20
16.10CB025SSH030030	CB025	2.5	53,0	9,0 x 27,2	1	3	32,3	192	233	420	91	143	40	24,3	27
16.10CB030SSH030030	CB030	3	56,0	7,1 x 21,2	2	3	35,3	171	235	510	78	162	42,5	27,2	24
16.10CB050SSH030035	CB050	5	63,0	9,0 x 27,2	2	3	33,3	192	282	600	91	194	46,5	34,5	41
16.10CB075SSH035040	CB075	7.5	85,0	9,0 x 27,2	3	3,5	34,3	192	373	770	91	253	72,5	47,5	63
16.10CB100SSH035050	CB100	10	85,0	9,0 x 27,2	4	3,5	35,3	192	438	760	111	308	72,5	47,5	83
16.10CB150SSH035045	CB150	15	100	9,0 x 27,2	6	3,5	36,3	268	492	1,020	119	337	80,0	60,0	155
16.10CB200SSH035045	CB200	20	110	9,0 x 27,2	8	3,5	35,3 x 2	374	746	1,180	187	373	81,0	67,0	235
16.10CB300SSH035045	CB300	30	125	9,0 x 27,2	10	3,5	42,1 x 2	404	746	1,300	202	373	103	85,0	310
16.10CB400SSH035045	CB400	40	140	9,0 x 27,2	14	3,5	42,1 x 2	502	760	1,480	251	380	104	95,0	480
16.10CB500SSH035045	CB500	50	155	9,0 x 27,2	16	3,5	48,0 x 2	544	796	1,560	272	398	112	106,0	640

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
