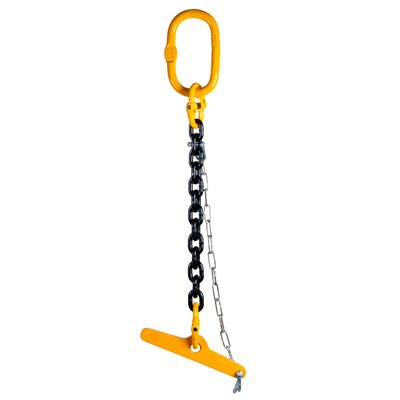

General: Designed to lift cable drums vertically through centre hole. For coil drums according to SS 84 28 01 standard, though can be used with other drums.

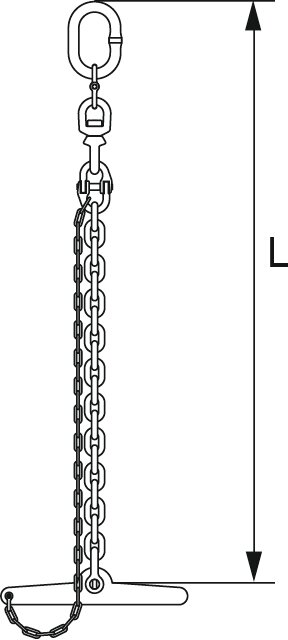

Design: Chain with lift fittings, swivel, master link and operating chain.


  • Marking: WLL and CE marking.
  • Finish: Painted.
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Hole diameter
mm
L
mm
Weight
kg
16.837601 7601 1,2 75 670 2,3
16.837602 7602 2,5 106 860 5,3
16.837603 7603 4 132 980 9,6
Other dimensions and design available on request.
