General: For lifting and transportation of rails of types UIC60, BV50 and S49. Thanks to its clever design, which takes up minimal space, this clamp can efficiently be used for stacking a number of standing rails at a time. The clamp is locked by turning the knob placed at the flange of the rail.


  • Marking: WLL, manufacturer and CE-marking.
  • Finish: Painted.
  • Safety factor: 5:1

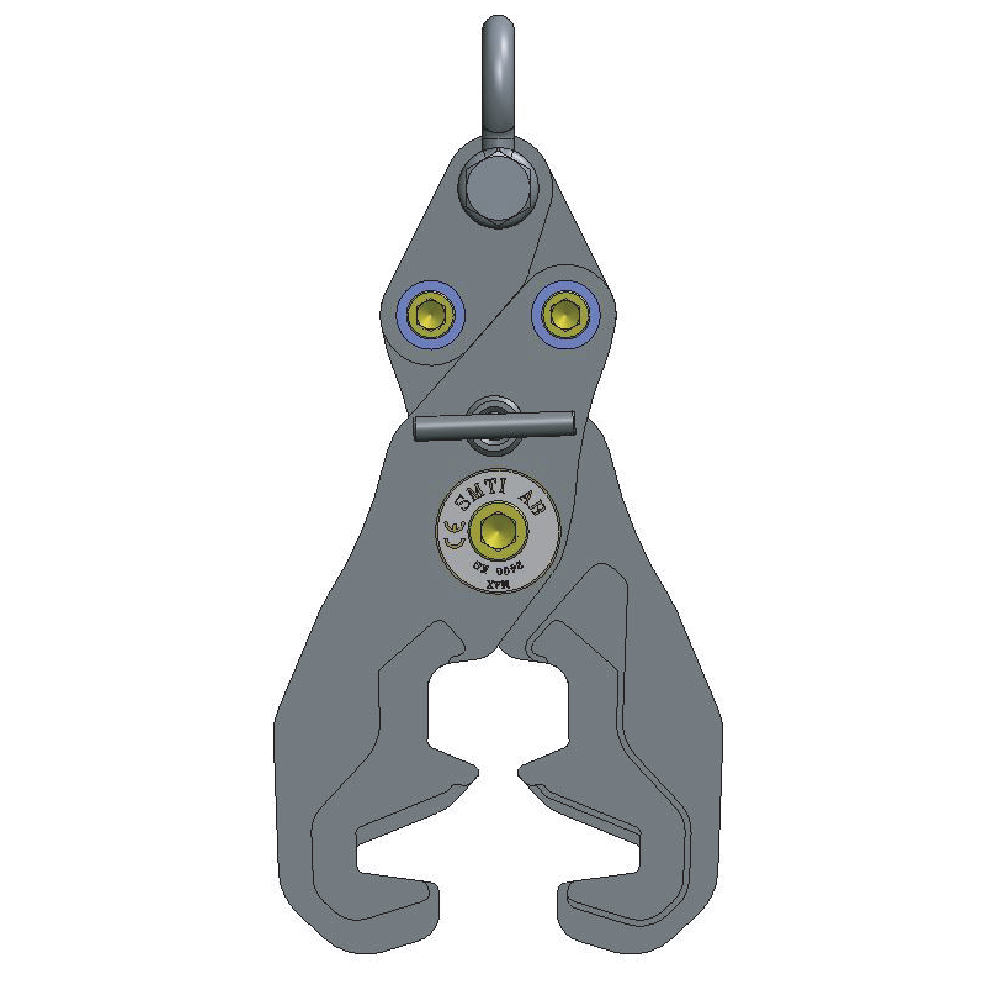

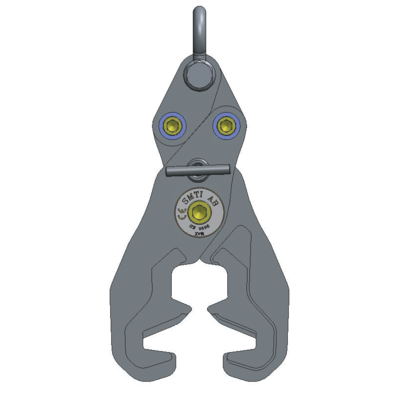

R3_image

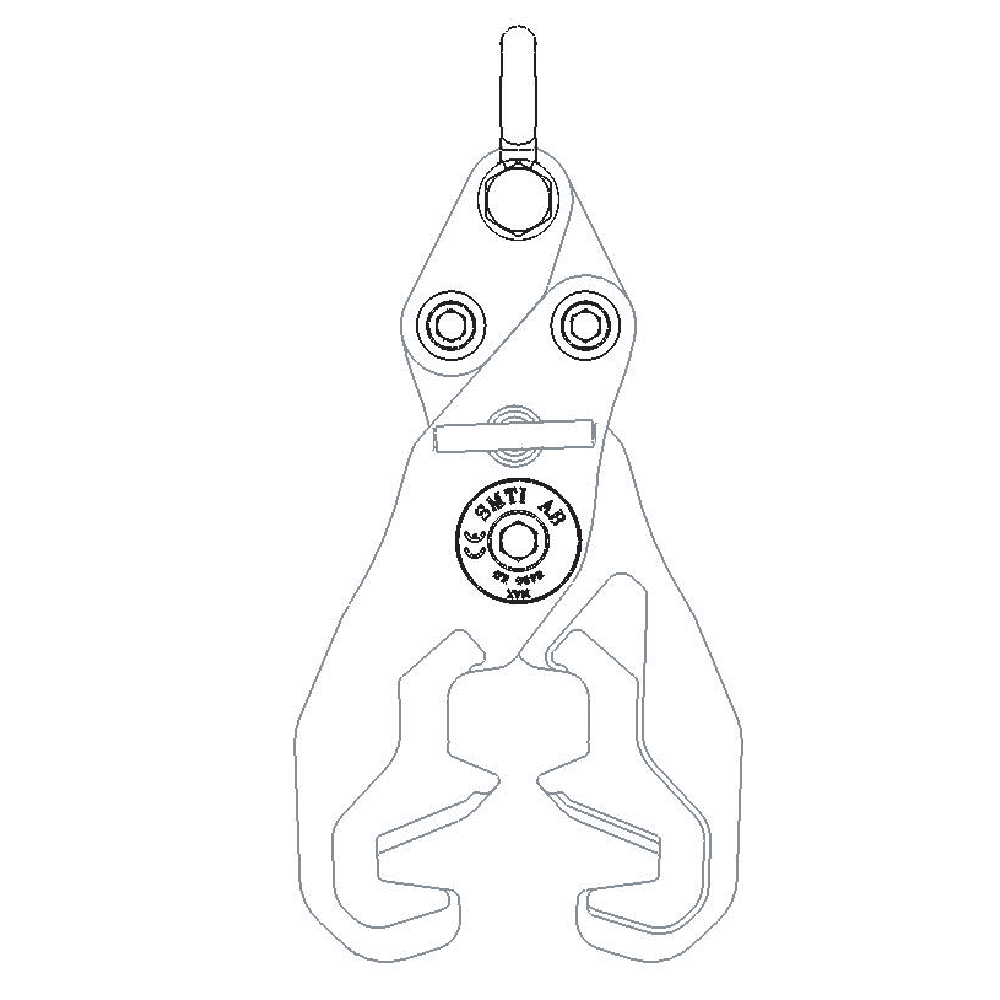

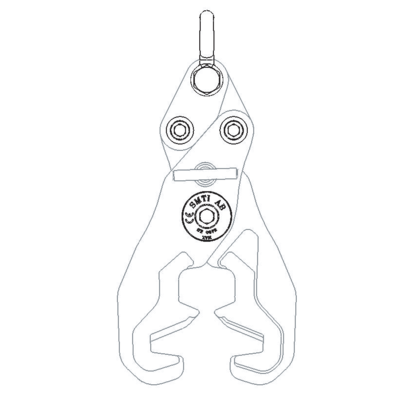

R3_dwg
Måttskiss R-Saxar
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
H1
mm
H2
mm
B1
mm
B2
mm
D1
mm
D2
mm
C
mm
A
mm
Weight
kg
16.015210032 R3 2,4 20-175 360 450 320 225 100/175* 20/60* 62 155 13,5

* Upper jaw / lower jaw
