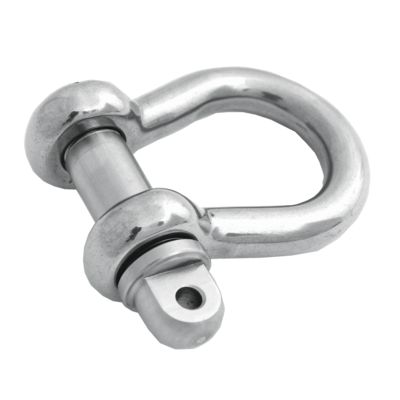

Design: Stainless steel bow shackle, with pin. Good for lifting applications where a high level of corrosion resistance is required. Typical applications: Water utility installations & other corrosive facilities, Pump chains and pump lifting, Chemical installations - Chlorine plants etc, General lifting in off-shore applications, General lifting and tethering in leisure marine applications, General lifting purposes.


Proof load: 2x WLL

  • Material: Stainless Steel EN10088 1.4404 (Marine Grade 316L)
  • Marking: WLL, CE, Supplier,
  • Finish: : Polished
  • Safety factor: 6:1

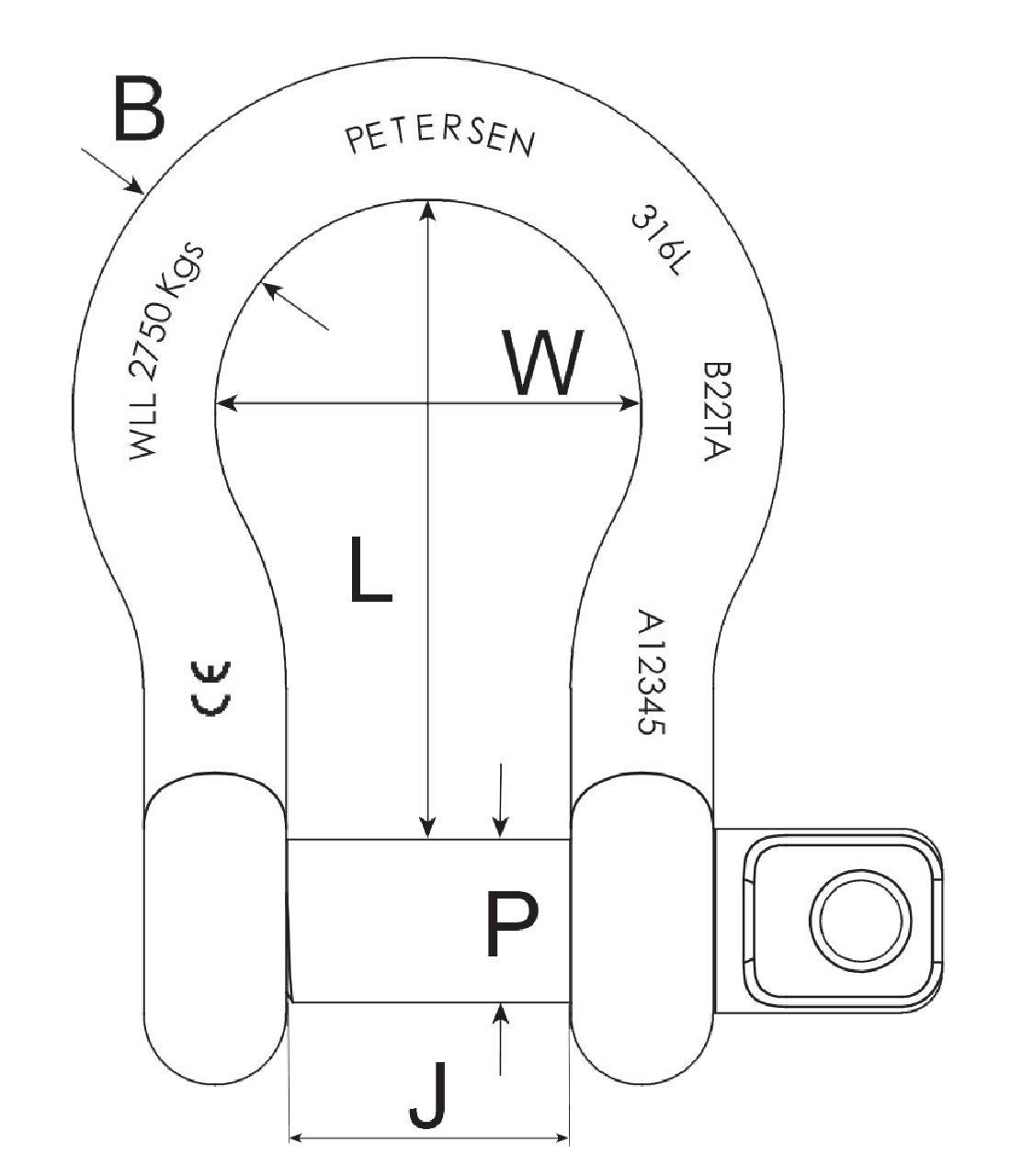

Shackle_316bow_dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
P
mm
B
mm
J
mm
W
mm
L
mm
Weight
kg
11.39B04TA 0,13 4 4 8 12 16 0,009
11.39B05TA 0,2 5 5 10 16 22 0,014
11.39B06TA 0,26 6 6 13 19 28 0,028
11.39B08TA 0,4 8 8 16 25 35 0,059
11.39B10TA 0,63 9,5 9,5 19 28 38 0,11
11.39B11TA 0,8 11 11 22 33 46 0,16
11.39B12TA 1 12,7 12,7 26 38 52 0,27
11.39B16TA 1,33 16 14,3 29 43 60 0,5
11.39B19TA 2 19 16 32 50 68 0,63
11.39B22TA 2,75 22,2 19 38 57 76 1,05
11.39B25TA 3,75 25,4 22,2 44 66 88 2
11.39B28TA 4,5 28,6 25,4 51 76 102 3
11.39B32TA 5,5 31,8 28,6 57 86 114 3,3
11.39B35TA 6,5 34,9 31,8 64 95 128 4,6
11.39B38TA 7,5 38 34,9 70 105 140 5,6
