Gunnebo Industries

Design: Forged shackle in high quality,



  • Material: Stainless acid proof steel. AISI 316.
  • Marking: WLL, CE
  • Finish: Polished.
  • Safety factor: : 6:1.
201-r_e_225mm
2919_lom_b_225mm
Select a row from the table below, then click the add to quote button

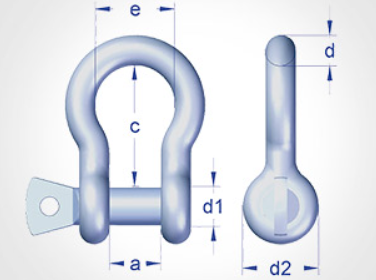

Part Code Code WLL
ton
MBL
ton
Thread d1
mm
D2
mm
A
mm
c*
mm
e
mm
D
mm
Weight
kg
11.39A075008S 205-S 0,4 0,4 M8 8 16 16 30 23 8 0,05
11.39A075010S 206-S 0,6 0,6 M10 10 20 20 36 27 10 0,12
11.39A075012S 207-S 0,9 0,9 M12 12 26 25 47 37 12 0,21
11.39A075016S 208-S 1,5 1,5 M16 13 33 25 47 33 13 0,34
11.39A075020S 209-S 2,5 2,5 M20 16 40 28 60 42 16 0,6
11.39A075022S 210-S 3 3 M22 19 48 31 71 51 19 0,98
11.39A075024S 211-S 4,5 4,5 M24 22 52 37 84 58 22 1,4
*Tolerance: +/- 5%
