Home / Products / Sling components & lifting hardware / Lifting hardware / Shackles / D Shackle 316 Stainless

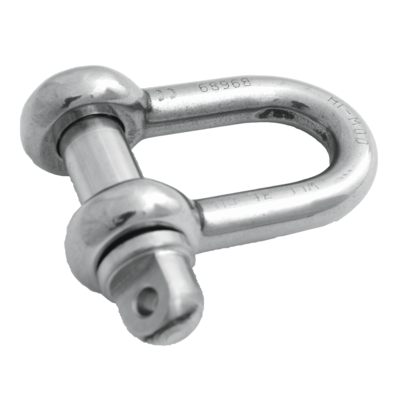

Design: Stainless steel D shackle, with pin. Good for lifting applications where a high level of corrosion resistance is required. Typical applications: Water utility installations & other corrosive facilities, Pump chains and pump lifting, Chemical installations - Chlorine plants etc, General lifting in off-shore applications, General lifting and tethering in leisure marine applications, General lifting purposes.

Proof load: 2x WLL

Material: Stainless Steel EN10088 1.4404 (Marine Grade 316L)
Marking: : WLL, CE, Supplier,
Finish: Polished

Safety factor: : 6:1

Select a row from the table below, then click the add to quote button

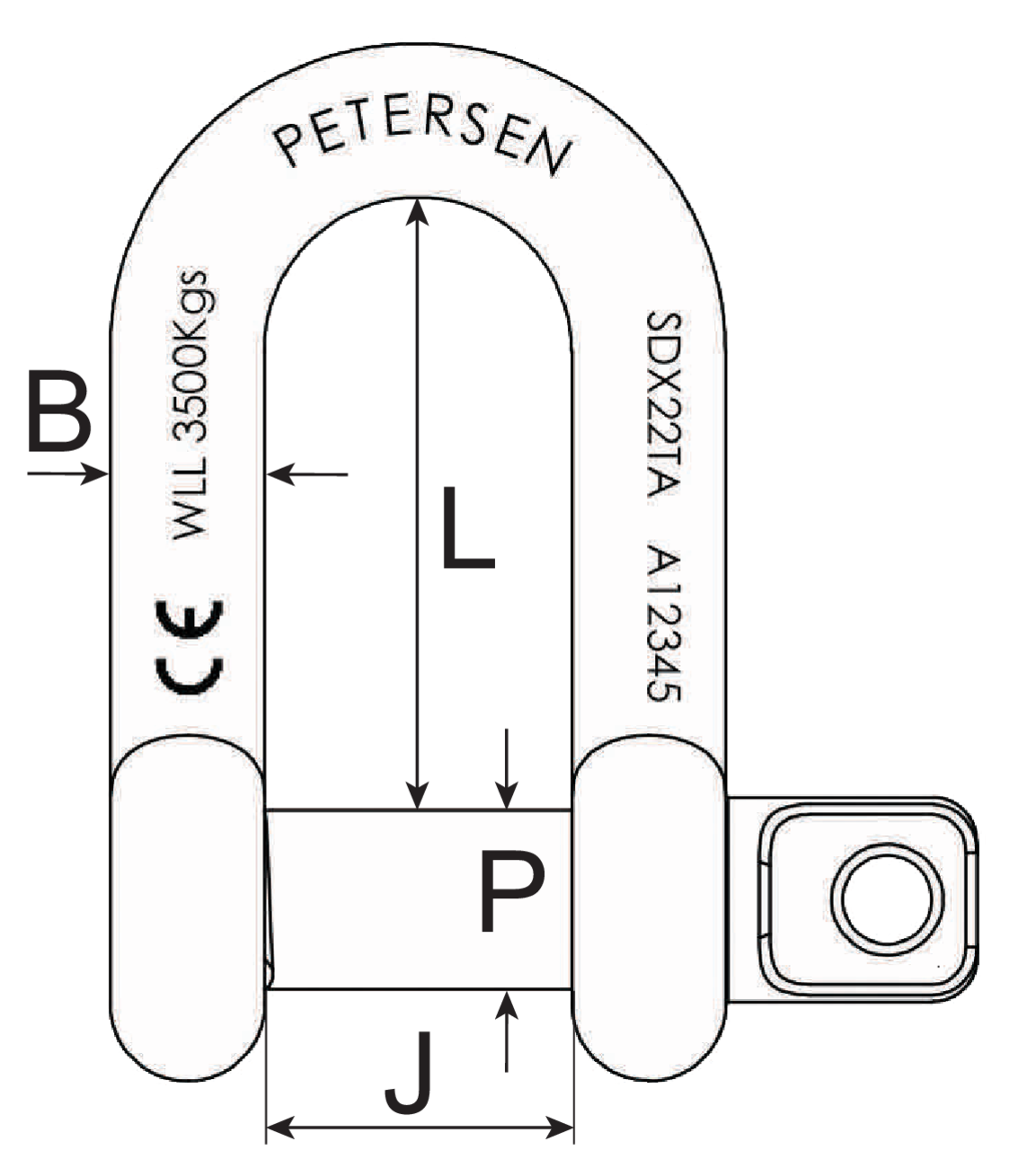

Part Code	WLL t	P mm	B mm	J mm	L mm	Weight kg
11.39D04TA	0,13	4	4	8	16	0.01
11.39D05TA	0,20	5	5	10	20	0.01
11.39D06TA	0,33	6	6	13	25	0.02
11.39D08TA	0,50	8	8	16	32	0.05
11.39D10TA	0,80	9,5	9,5	19	38	0.1
11.39D11TA	1,00	11	11	22	44	0.15
11.39D12TA	1,25	12,7	12,7	26	52	0.24
11.39D16TA	1,66	16	14,3	29	58	0.45
11.39D19TA	2,33	19	16	32	64	0.59
11.39D22TA	3,50	22,2	19	38	76	1
11.39D25TA	4,50	25,4	22,2	44	88	1.9
11.39D28TA	5,50	28,6	25,4	51	102	2.9
11.39D32TA	6,50	31,8	28,6	57	114	3.1
11.39D35TA	7,50	34,9	31,8	64	128	4.35
11.39D38TA	9,00	38	34,9	70	140	5.3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
