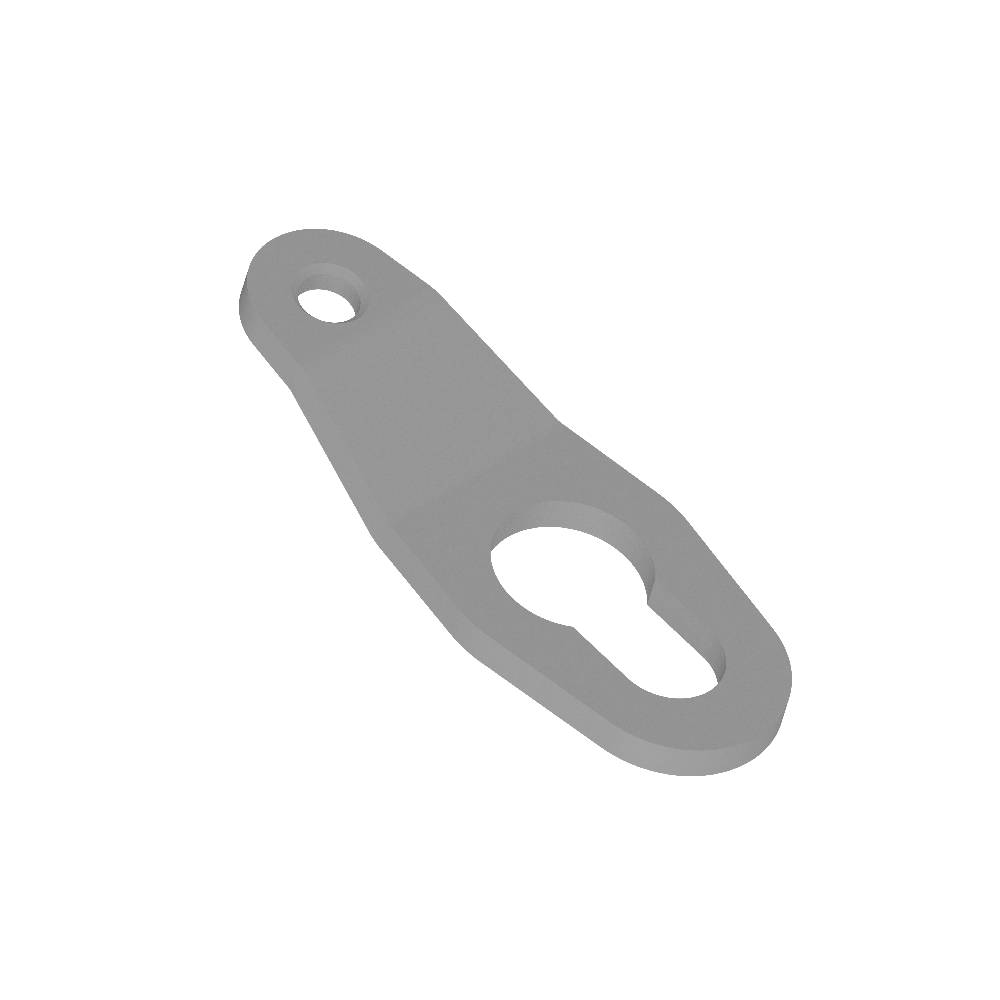

General: With keyhole for lifting all types of containers with lifting shanks. Connecting to the chain sling with a connect link for 13 mm chain, (connecting link for 10 mm chain can be used on smaller loads).
Design: Cutted in sheet metal and bent.
Proof: 2 x WLL

  • Material: Sheet metal from high-tensile construction steel.
  • Marking: WLL.
  • Finish: Electro galvanized.

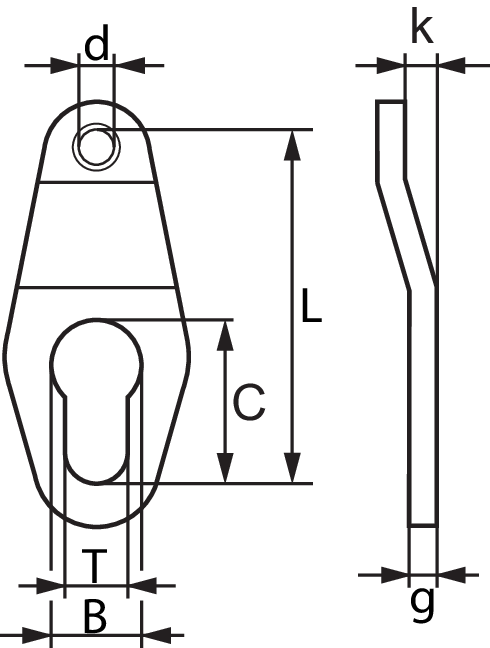

LB-1m_new_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
G
mm
B
mm
C
mm
L
mm
T
mm
D
mm
k
mm
Weight
kg
11.29LB1 LB-1 4,2 15 65 110 235 45 25 23 2,2
Other dimensions and performance on request
