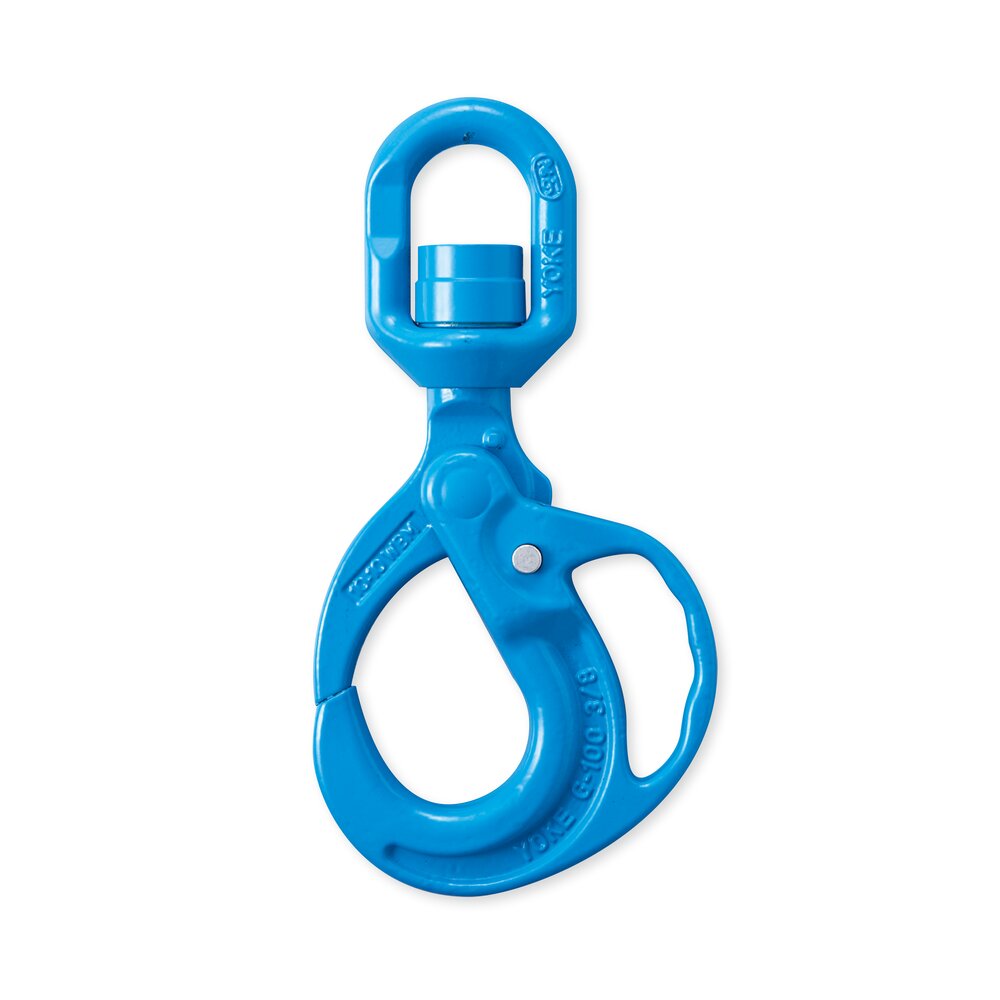

Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL. Magnaflux crack detection is performed 100% on each batch. Built with ball bearing and enables full swivel feature under load.
- Material: Quenched and Tempered Alloy Steel.
- Marking: According to standard, Size, grade, manufacturer ID, traceability.
- Temperature range: -40ºC up to +200°C (without reduction in WLL).
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 10
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
