verope
  • Ordinary left hand lay
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

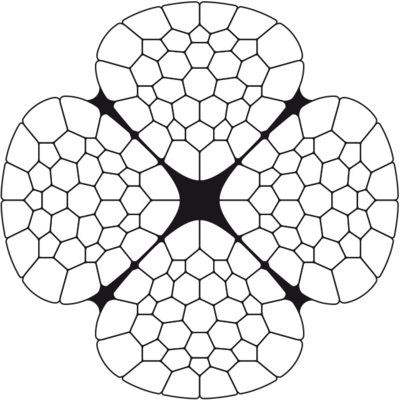

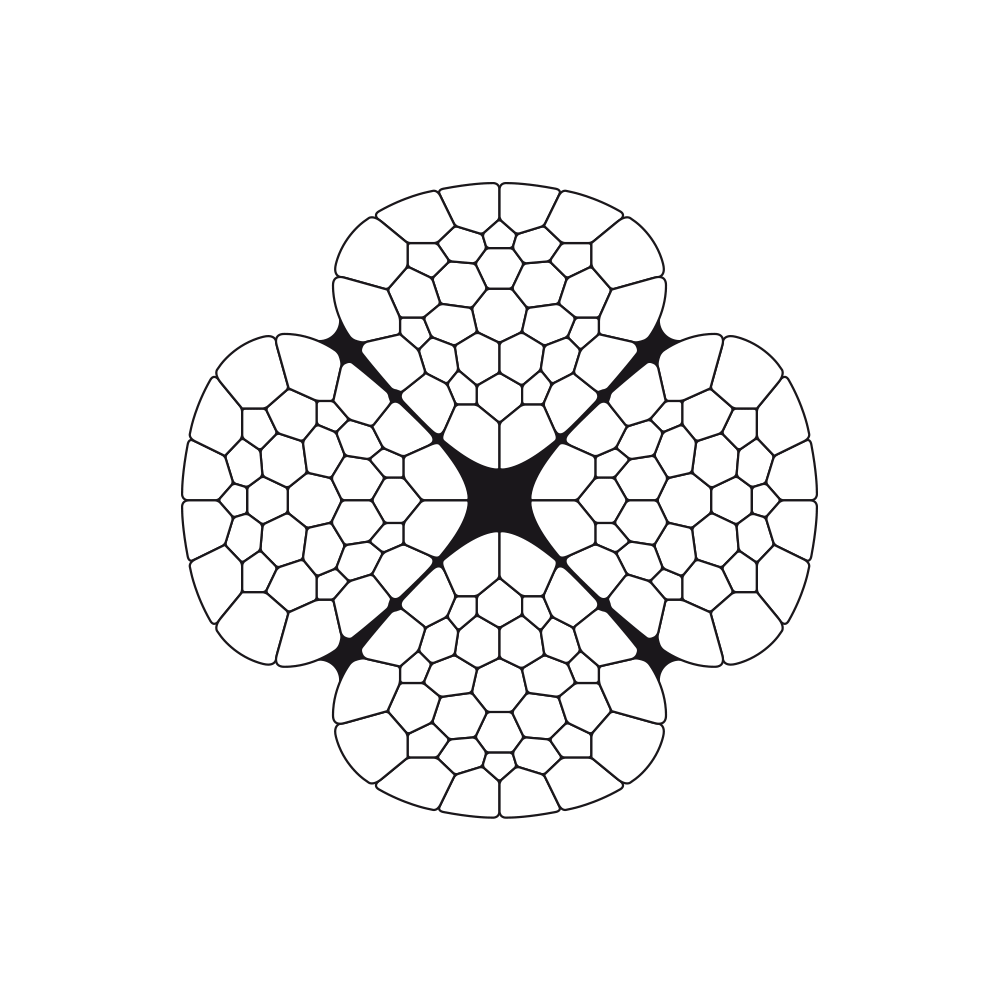

Wire rope construction: Vero 4 is a 4-strand rotation resistant rope with compacted strands. It is has a high breaking load and is particularly suitable for harshest working conditions with dynamic impact loads.

Features:

  • High breaking stength.
  • Very robust rope construction.
  • Offers excellent resistance against crushing and abrasion.

ISO 4309 Rope Category No: All Diameters RCN.22

  • Marking: According to standard
  • Standard: EN 12385-4
  • Warning: Vero 4 may not be used with a swivel.
  • Fill factor: 0.631
  • Tolerance Ø: +2% table.heading.tolerance.to +4%
  • Offshore crane Information icon
  • Deck crane Information icon
vero 4
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
01.G20VR4080G 8 31.7 55.9 59.7 27
01.G20VR4090G 9 40 70.8 75.5 34.1
01.G20VR4100G 10 49 87.4 93.2 42.1
01.G20VR4110G 11 60 105.8 112.8 51
01.G20VR4120G 12 71 125.9 134.3 60.7
01.G20VR4130G 13 83 147.7 157.6 71.2
01.G20VR4140G 14 97 171.3 182.7 82.6
01.G20VR4150G 15 111 196.7 209.8 94.8
01.G20VR4160G 16 126 223.8 238.7 107.8
01.G20VR4180G 18 160 283.2 302.1 136.5
01.G20VR4190G 19 178 315.6 336.6 152.1
01.G20VR4200G 20 198 349.7 373 168.5
01.G20VR4220G 22 239 423.1 451.3 203.9
01.G20VR4240G 24 285 503.5 537 242.6
01.G20VR4250G 25 309 546.4 582.7 263.3
01.G20VR4260G 26 334 591 630.3 284.8
01.G20VR4270G 27 361 637.3 679.7 307.1
01.G20VR4280G 28 388 685.4 731 330.3
01.G20VR4290G 29 416 735.2 784.1 354.3
01.G20VR4300G 30 445 786.8 839.1 379.1
01.G20VR4310G 31 476 840.1 896 404.8
01.G20VR4320G 32 507 895.2 954.8 431.4
01.G20VR4330G 33 539 952 1,015 458.7
01.G20VR4335G 33.5 555 981.1 1,046 472.7
01.G20VR4340G 34 572 1,011 1,078 487
01.G20VR4350G 35 606 1,071 1,142 516
01.G20VR4360G 36 641 1,133 1,208 545.9
