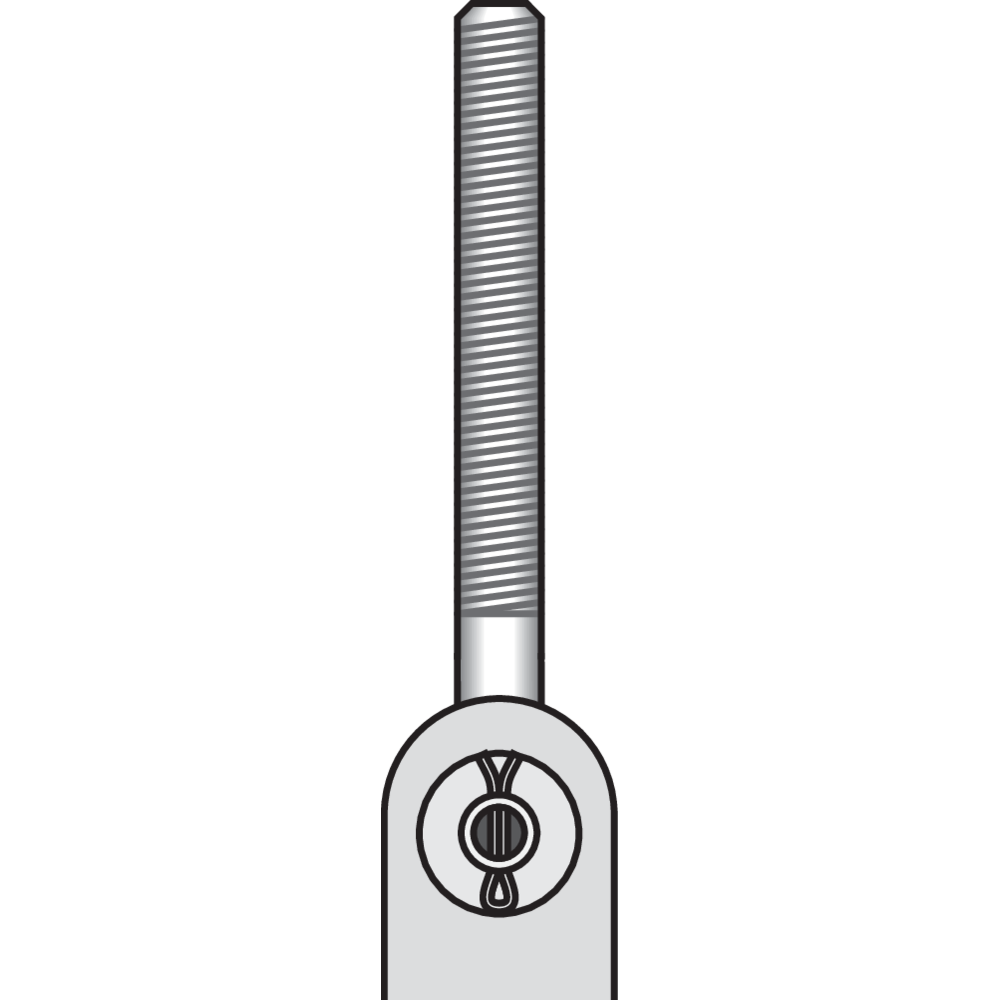

Wedge Socket for Lifts - Type A






Standard: EN 13411-7





  • Features: Wedge Suspension kit Type A with Eyebolt nuts and split pin
  • Material: Galvanised Steel
  • Marking: According to standard, Size and CE mark
  • Finish: Galvanised
  • Standard: EN 13411-7
15315_a_new_225mm
15315_a_new_225mm
3050_screw_Am_225mm(1)
Select a row from the table below, then click the add to quote button

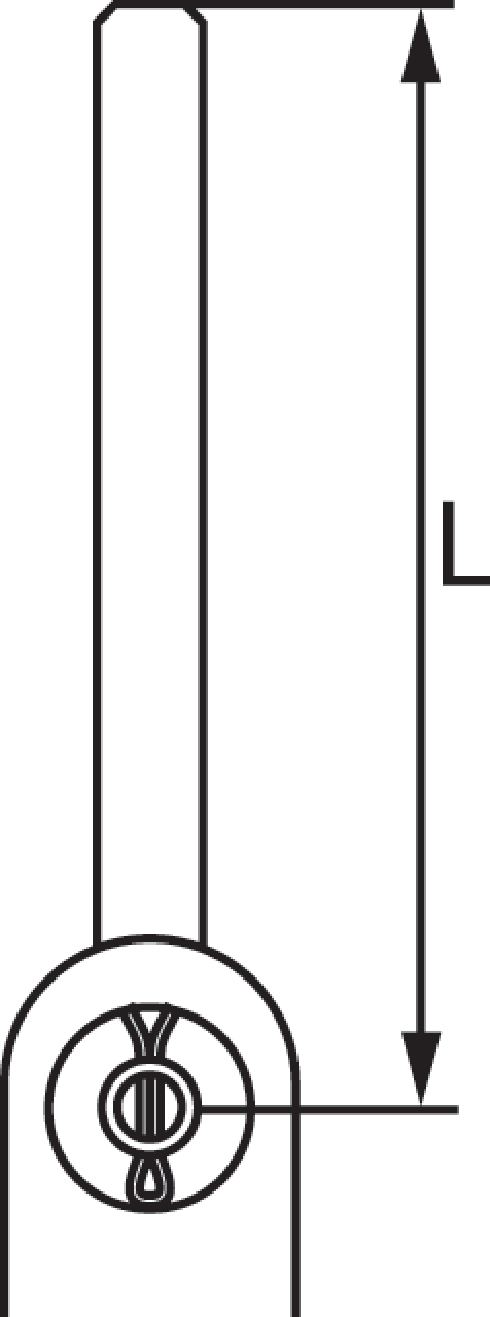

Part Code Code Thread Diameter
mm		 L
mm		 Weight
kg		 CAD
10.21SS10608A0320315 3060 M12 6-8 320 0.75
10.21SS10911A0320315 3061 M16 9-11 320 1.6
10.21SS11214A0400315 3062 M20 12-14 400 3.2
10.21SS11517A0450315 3063 M24 15-17 450 5.3
10.21SS11820A0500315 3064 M27 18-20 500 8.1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
