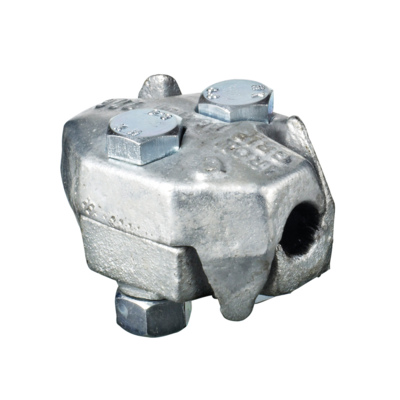

General: Wire rope clamp type, approved for lifting. Requires fewer clamps per fixation, e.g. two wire clamps instead of four, for 16 mm cable. Symmetrical – cannot be wrongly fitted. The clamps ensure fixation of the wire to a degree of at least 90% of the minimum breaking load of the wire in accordance with the current European standard.
Design: Bases of cast steel.

  • Finish: Hot dip galvanized
  • Note: Follow the fitting instructions in the user manual before use. Not for use with compacted or hammered wire ropes.
Select a row from the table below, then click the add to quote button
Part Code Rope diameter range
Thread No. of clamps when lifting* Moment
10.17BG0600 5-6 M6 2 9,5 9
10.17BG0800 6.5-8 M6 2 9,5 12
10.17BG1000 8.5-10 M8 2 22 20
10.17BG1200 11-12.5 M10 2 44 39
10.17BG1600 13-16 M12 2 75 72
10.17BG2000 17-20 M14 2 120 120
10.17BG2500 21-25 M18 2 260 280
10.17BG3400 26-34 M20 2 350 770

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
