The Powertex Wire Rope Grip EUREKA is a high-performance wire rope grip designed for lifting applications and tested according to EN 13411-5 standards. This grip is designed for use with six-stranded wire ropes in 6x19 (M) and 6x36 classes and ordinary lay wire
rope in 8x19 class up to 1960 N/mm², with fibre core and a steel core. Offering a reliable and efficient method for securing loads.
Product Features:
-
High load capacity: When properly assembled, the EUREKA grip can handle up to 90% of the steel wire rope's minimum breaking load (MBL), ensuring robust and reliable performance.
-
Safe and secure: Designed to assume high friction between the wire rope and the grip, providing a secure hold for lifting operations.
-
Quick and easy assembly: Only two grips are needed for a safe assembly, and the quick mounting process requires no nuts, making it safe, user-friendly and efficient.
-
Low maintenance: The grips are galvanized, and the bolts are dacrotized, ensuring low maintenance and long-lasting durability.
-
Versatile application: Suitable for suspending static loads and single-use lifting operations, provided they are assessed by a competent person considering appropriate safety factors.
-
Material and construction:
-

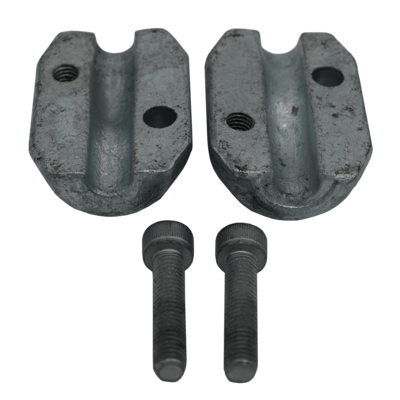

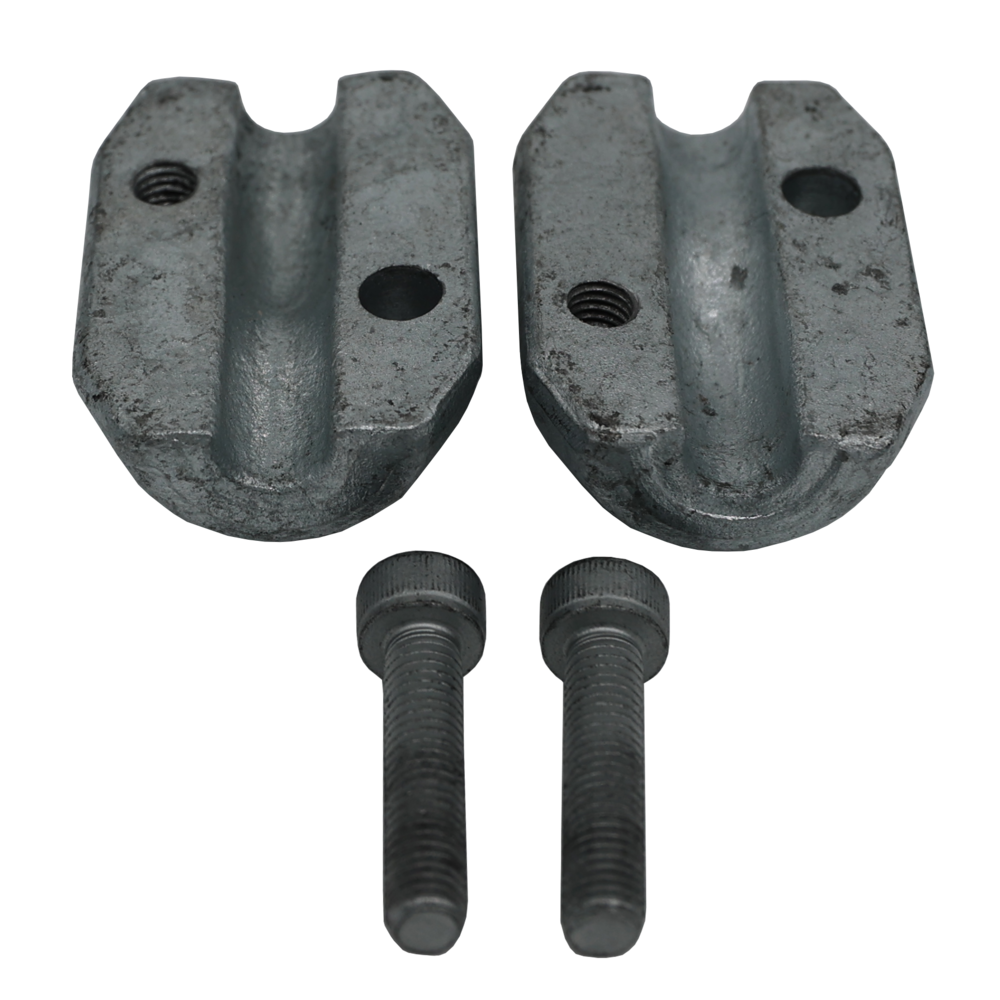

Body: Forged from non-aging carbon steel
-
Bolt: Hexagon socket bolt made from 40Cr grade 12.9, ensuring strength and reliability
-
-
Compatibility: Designed for use with 6 or 8-stranded steel wire ropes with steel or fiber cores, with tensile strength up to 1960 N/mm².
-
Full traceability: Every grip is marked with Powertex branding, Size, and a traceability code, ensuring traceability to the production lot and raw materials.

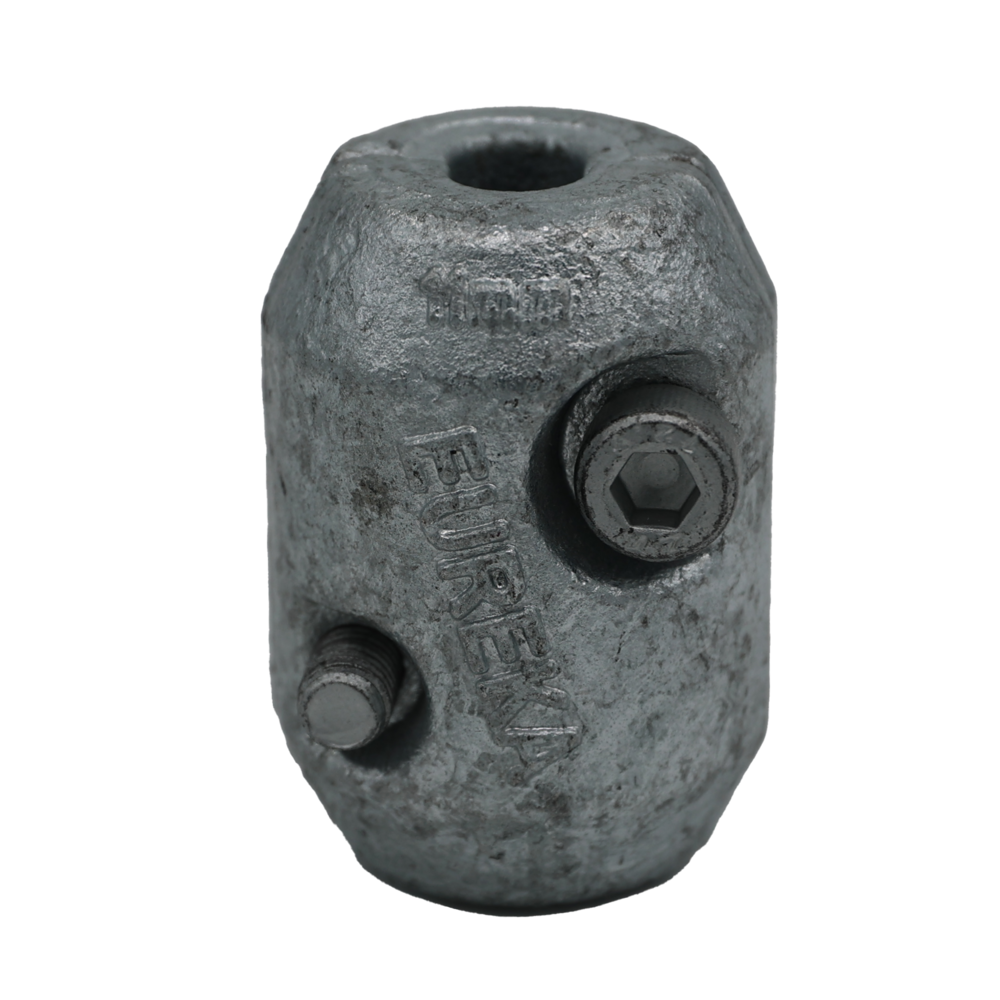

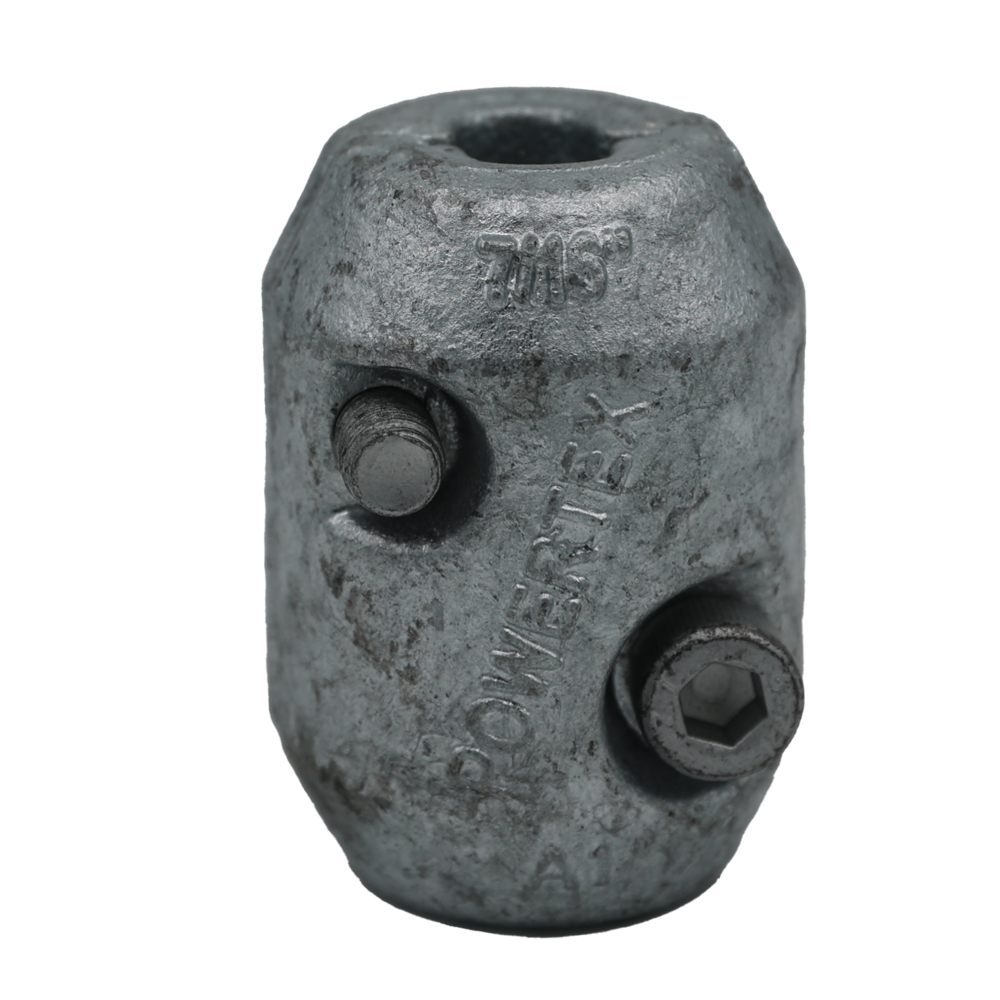

- Marking: Powertex, EUREKA, size and batch
- Finish: 5-6: Electrozinc Galvanized, 8-16 Hot Dip Galvanized
- Note: Not recommended for use with compacted, hammered, or plastic-covered steel wire ropes. Additionally, these grips are not suitable for use with spiral strand ropes.
