• Features: Wedge Suspension kit Type D with Eyebolt, Spring, nuts and split pin
  • Material: Galvanised Steel
  • Marking: According to standard
  • Finish: Galvanised
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7
15315_d_lom_new_225mm

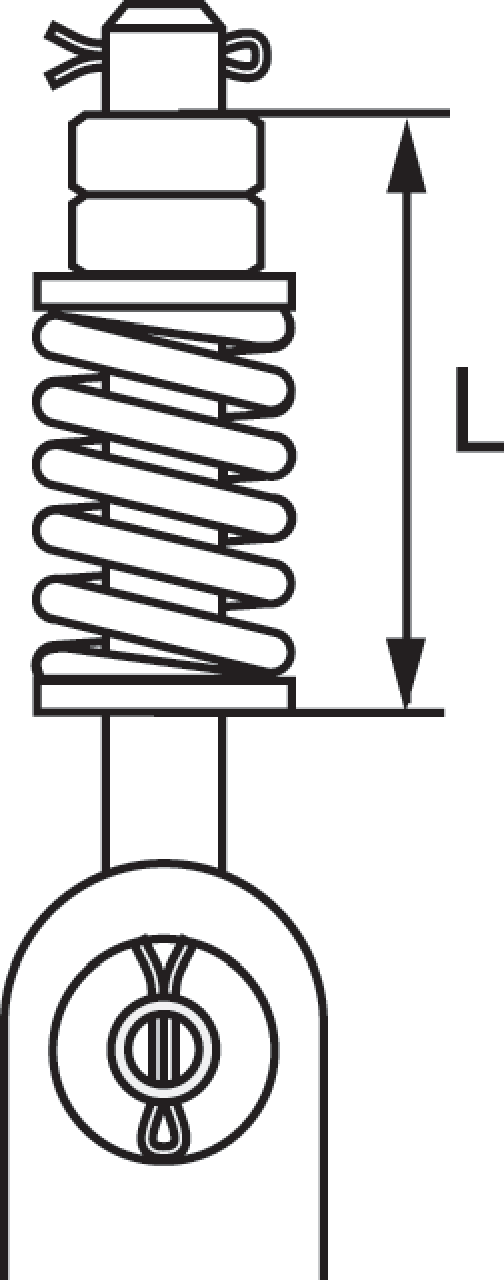

3050_screw_Dm_225mm(1)
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
L
mm
Weight
kg
CAD
10.21SS10608D0320315 6-8 167 1.4
10.21SS10911D0320315 9-11 173 2.4
10.21SS11214D0400315 12-14 202 4.7
10.21SS11517D0450315 15-17 248 8.2
10.21SS11820D0500315 18-20 254 11
