Threaded terminals for pressing or swaging them onto stainless steel wirerope. They are used to put tension on a wire, either with the help of nuts and washers or as part of a rigging screw.

Features:

  • Wide range of sizes
  • Available in right hand and left hand threads.
  • Other sizes or UNF thread available on request
  • Available with or without a nut.
  • Material: Stainless steel AISI 316.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.
  • Note: Part codes ending in an "N" include a nut.
  • Warning: It is strongly recommended to lubricate threads first, before tensioning.
Terminal_thread
RP_225mm

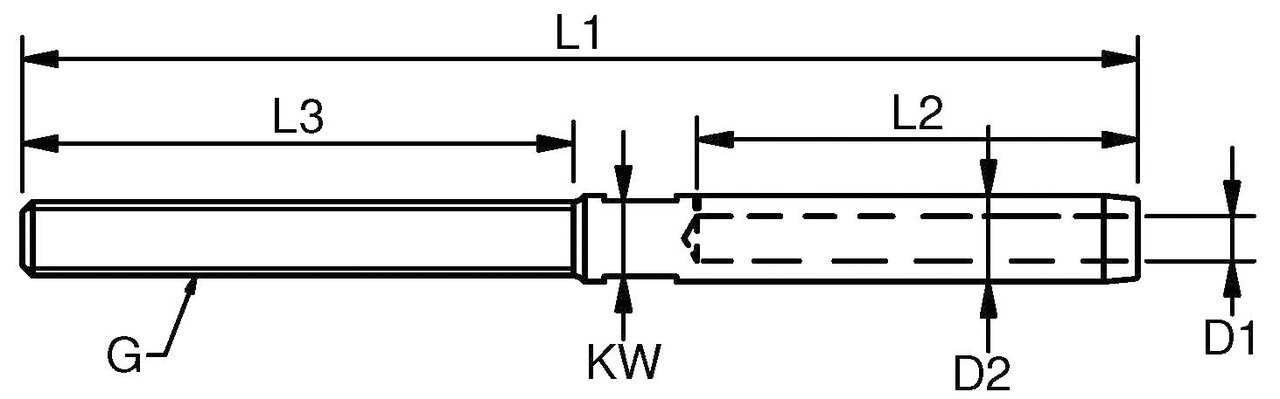

Stainless thread terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
MBL
ton
Thread G thread D1
mm
D2
mm
L1
mm
L2
mm
L3
mm
KW
mm
Weight
kg/100pc
CAD
10.07900205N 2 0.8 R* M5 2.2 5.5 80 24 42 4.5 1.4
10.07910205N 2 0.8 L* M5 2,2 5,5 80 24 42 4,5 1.4
10.07912505N 2.5 0.8 L* M5 2,8 5,5 82 27 42 4,5 1.5
10.07902505N 2.5 0.8 R* M5 2,8 5,5 82 27 42 4,5 1.5
10.07910306N 3 1.2 L* M6 3,3 6,35 100 38 48 5,0 2
10.07900306N 3 1.2 R* M6 3,3 6,35 100 38 48 5,0 2
10.07910406N 4 1.2 L* M6 4,4 7,50 110 45 48 6,0 2.4
10.07900406N 4 1.2 R* M6 4,4 7,50 110 45 48 6,0 2.4
10.07910408N 4 1.7 L* M8 4,4 7,50 117 45 57 6,0 3
10.07900408N 4 1.7 R* M8 4,4 7,50 117 45 57 6,0 3
10.07910508N 5 2.2 L* M8 5,3 9,0 123 51 57 7,0 4
10.07900508N 5 2.2 R* M8 5,3 9,00 123 51 57 7,0 4
10.07910510N 5 2.5 L* M10 5,3 9,00 130 51 63 7,0 4.5
10.07900510N 5 2.5 R* M10 5,3 9,00 130 51 63 7,0 4.5
10.07910610N 6 3.5 L* M10 6,5 12,58 145 64 63 11 8.4
10.07900610N 6 3.5 R* M10 6,5 12,58 145 64 63 11 8.4
10.07900612N 6 5.1 R* M12 6,5 12,58 162 64 80 11 11
10.07910612N 6 5.1 L* M12 6,5 12,58 162 64 80 11 11
10.07910712N 7 5.1 L* M12 7,5 14,20 170 70 80 12 13.3
10.07900712N 7 5.1 R* M12 7,5 14,20 170 70 80 12 13.3
10.07900714N 7 6.8 R* M14 7,5 14,20 180 70 89 12 16
10.07910714N 7 6.8 L* M14 7,5 14,20 180 70 89 12 16
10.07910812N 8 5.1 L* M12 8,4 16,00 185 83 80 14 19.2
10.07900812N 8 5.1 R* M12 8,4 16,00 185 83 80 14 19.2
10.07910814N 8 6.9 L* M14 8,4 16,00 194 83 89 14 20
10.07900814N 8 6.9 R* M14 8,4 16,00 194 83 89 14 20
10.07910816N 8 8.7 L* M16 8,4 16,00 203 83 100 14 23
10.07900816N 8 8.7 R* M16 8,4 16,00 203 83 100 14 23
10.07901016N 10 9.4 R* M16 10,5 17,80 210 89 100 15 35
10.07911016N 10 9.4 L* M16 10,5 17,80 210 89 100 15 35
10.07901020N 10 9.7 R* M20 10,5 17,80 230 89 120 15 35
10.07911020N 10 9.7 L* M20 10,5 17,80 230 89 120 15 35
10.07901220N 12 11.4 R* M20 12,5 20,00 249 105 120 17 45
10.07911220N 12 11.4 L* M20 12,5 20,00 249 105 120 17 45
10.07901220XN 12 14.2 R* M20 12,5 21,40 265 120 120 19 50
10.07911220XN 12 14.2 L* M20 12,5 21,40 265 120 120 19 50
10.07901422N 14 15.9 R* M22 14,8 25,00 308 140 140 22 76.8
10.07911422N 14 15.9 L* M22 14,8 25,00 308 140 140 22 76.8
10.07901622N 16 18.2 R* M22 17,0 28,00 333 160 140 25 97.8
10.07911622N 16 18.2 L* M22 17,0 28,00 333 160 140 25 97.8
10.07911624N 16 19.4 L* M24 17,0 28,00 363 160 170 25 111
10.07901624N 16 19.4 R* M24 17,0 28,00 363 160 170 25 111
10.07911927N 19 23 L* M27 20,0 34,50 425 200 180 30 209
10.07901927N 19 23 R* M27 20,0 34,50 425 200 180 30 209
10.07902230N 22 28 R* M30 23,5 40,50 480 230 200 36 314
10.07912230N 22 28 L* M30 23,5 40,50 480 230 200 36 314
10.07902636N 26 41 R* M36 27,5 46,00 550 280 220 41 470
10.07912636N 26 41 L* M36 27,5 46,00 550 280 220 41 470
* L - Left ; R - Right
Note: Difference in the outer diameter (D1) for steel wire rope 12 mm.
